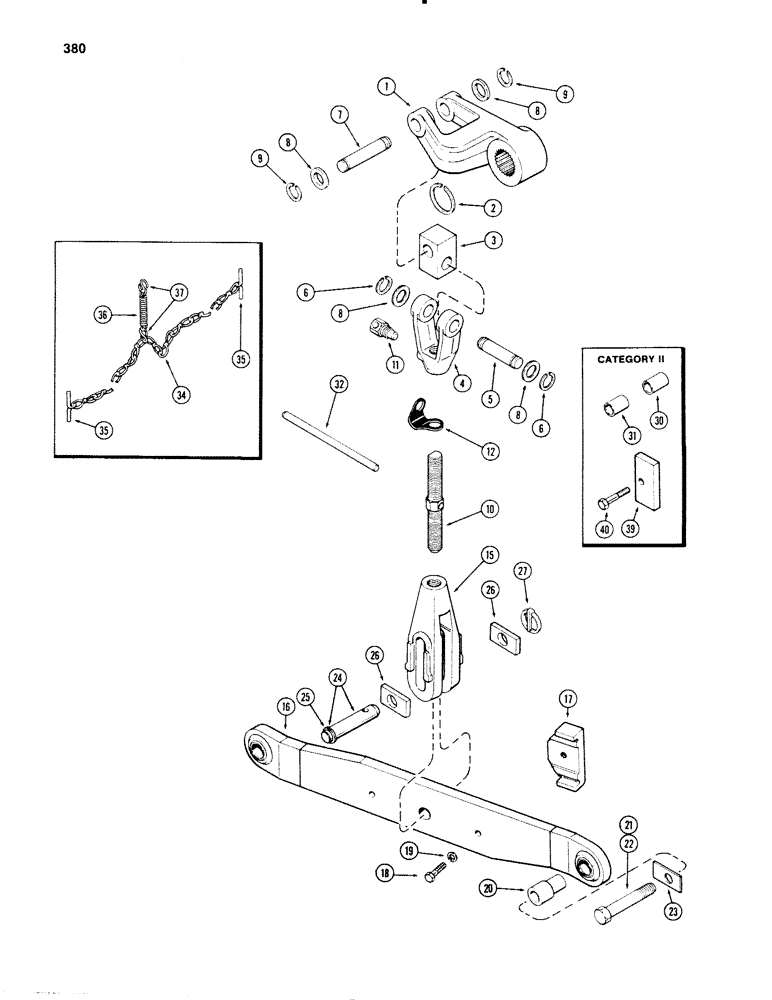

Запчасти Case IH 1270 (380) - THREE POINT HITCH, DRAFT ARMS AND LOWER LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

A63959

ARM

- rockshaft lift

2шт.

2

A63499

SNAP RING,#268, 2.535, Ext

RING - snap, arm to rockshaft

2шт.

3

A63501

BLOCK

- swivel, lift link

2шт.

4

A63502

YOKE

- lift link upper

2шт.

5

A66100

PIN

-, Serial Range: yoke-block

2шт.

6

A28253

RING

- snap, yoke pin

4шт.

7

A63506

PIN

- block to lift arm

2шт.

8

A63507

WASHER

- lift arm pin

8шт.

9

A28253

RING

- snap, arm pin

4шт.

10

A63504

ADJUSTMENT SCREW,1 1/4" - 12 x 10.50mm

- lift link adjusting

2шт.

11

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- yoke locking

2шт.

12

A62986

HOLDER

KEEPER - yoke locking screw

2шт.

15

A63505

YOKE

- lift link lower

2шт.

16

A63508

ARM

- draft

2шт.

17

A65436

BLOCK

- sway

2шт.

18

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

A135666

INSERT

- draft arm to sensing bracket (Replaces A65552)

2шт.

21

113-936

LOCK BOLT,Locking, 1"-8 x 6", G5

BOLT - coated, 1 x 6" N.C. hex. (Replaces 13-1696 & A65551)

2шт.

22

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

(Order 113-936) Hex, 1"-8 x 6", G5

2шт.

23

A65551

PLATE

LOCK - draft arm bolt (Order 113-936)

2шт.

24

A143993

PIN,31.6mm OD x 161.54mm L

ASSEMBLY - lower lift link (Replaces A63514), Includes Ref: 25

2шт.

25

17406

RING

- snap

1шт.

26

A63515

PLATE

- pin stop

4шт.

27

A64204

PIN

- klik

2шт.

30

L10462

BUSHING

ADAPTER - upper hitch pin (Cat. III to Cat. II)

1шт.

31

L10463

BUSHING

ADAPTER - lower hitch pin (Cat III to Cat. II)

2шт.

32

A63520

HANDLE

- link adjusting

1шт.

A65684

CHAIN (AG)

CHAIN ASSEMBLY - anti-sway, Includes Ref: 34-37

1шт.

34

NSS

NOT SOLD SEPARAT

CHAIN - anti-sway

1шт.

35

A65686

CHAIN

KEEPER - anti-sway chain

2шт.

36

A65688

SPRING

- anti-sway

1шт.

37

A65687

HOOK

- anti-sway chain

2шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT - sway block spacer (Cat. II), Includes Ref: 39, 40

1шт.

39

A65438

BUSHING

SPACER - Cat. II No. Sway

2шт.

40

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- (1/2 x 3" N.C. hex.)

2шт.
