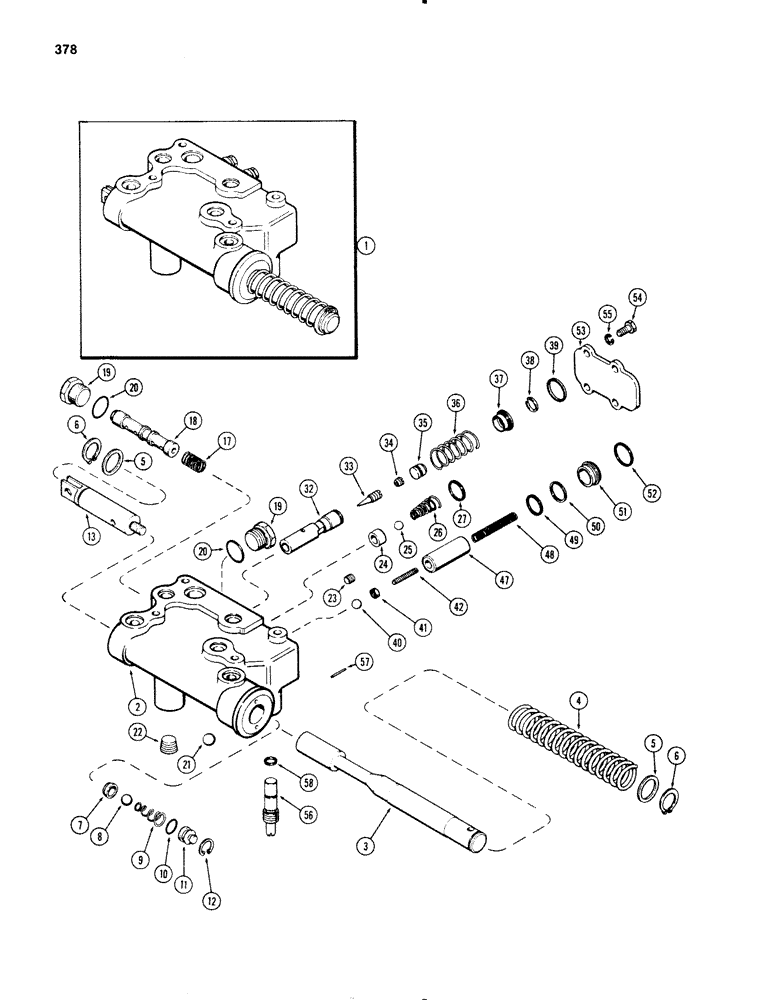

Запчасти Case IH 1270 (378) - A63470 D.O.M. CONTROL VALVE (09) - CHASSIS/ATTACHMENTS

1

A63470

VALVE

ASSEMBLY - depth & position, Includes Ref: 1-58

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A63470)

1шт.

3

A58363

SPOOL

- control valve

1шт.

4

A58366

SPRING

- spool return

1шт.

5

A58365

WASHER

- spring retaining

2шт.

6

A35094

SNAP RING,#81, Ext

Ring, Snap, , spool #81, Ext

2шт.

7

L10120

SEAT

- load check ball

1шт.

8

211-12

BALL,7/16 Dia

- load check (7/16" dia.)

1шт.

9

A35099

SPRING

- pressure, check valve

1шт.

10

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- (1/2 x 11/16 x 3/32")

1шт.

Part of Seal Kit P/N A43518

1шт.

11

A35693

PLUG

- check valve

1шт.

12

A35694

SNAP RING,0.688", Int, #68

Ring, Snap, 0.688", Int, #68

1шт.

13

A63471

END

- valve spool

1шт.

17

A35700

SPRING

- flow control

1шт.

18

A32984

PISTON

- flow control

1шт.

19

A39586

PLUG

ASSEMBLY - (7/8"-14) (Replaces A34215), Includes Ref: 20,21

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (5/8 x 3/4 x 3/32")

1шт.

Part of Seal Kit P/N A43518

1шт.

21

211-7

BALL,1/4" Dia

1шт.

22

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex. socket head)

1шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket head)

2шт.

24

L10120

SEAT

- load check

1шт.

25

211-12

BALL,7/16 Dia

- (7/16" dia.)

1шт.

26

A57166

SPRING

- load check

1шт.

27

A35547

RING

- seal, rectangular

1шт.

Part of Seal Kit P/N A43518

1шт.

32

A32982

PISTON

- trigger valve

1шт.

33

A35784

VALVE

- needle, trigger poppet

1шт.

34

A35785

SET SCREW,5/16" - 18 x 1/4"

- lock, needle valve

1шт.

35

A35097

PLUG

- open center poppet

1шт.

36

A35691

SPRING

- trigger valve

1шт.

37

A35689

RETAINER

- snap ring

1шт.

38

A35690

RING

- snap, seat retaining

1шт.

39

A35548

RING

- seal, rectangular

1шт.

Part of Seal Kit P/N A43518

1шт.

40

211-13

BALL,1/2" Dia

1шт.

41

A35102

NUT

- lock, (#10 N.F. hex.)

1шт.

42

A35101

SET SCREW,Hex Skt, #10 - 32 x 1 1/4", Gr 5

- set (#10 x 1-1/4" N.F. slotted headless)

1шт.

47

A35695

PISTON

- lowering poppet

1шт.

48

A35103

SPRING

- lowering poppet

1шт.

49

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- (3/4 x 15/16 x 3/32")

1шт.

Part of Seal Kit P/N A43518

1шт.

50

A35698

BACK-UP RING

WASHER - O-ring back-up

1шт.

Part of Seal Kit P/N A43518

1шт.

51

A35696

SLEEVE

- lowering poppet

1шт.

52

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- (7/8 x 1-1/16 x 3/32")

1шт.

Part of Seal Kit P/N A43518

1шт.

53

A35105

COVER

- control valve

1шт.

54

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

55

92-5

LOCK WASHER,5/16"

4шт.

56

A32363

SPOOL

- throttle

1шт.

57

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

58

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- (3/8 x 1/2 x 1/16")

1шт.

Part of Seal Kit P/N A43518

1шт.

A43518

KIT

- seal, Includes: Ref. 10, 20, 27, 39, 49, 50, 52 and 58

1шт.
