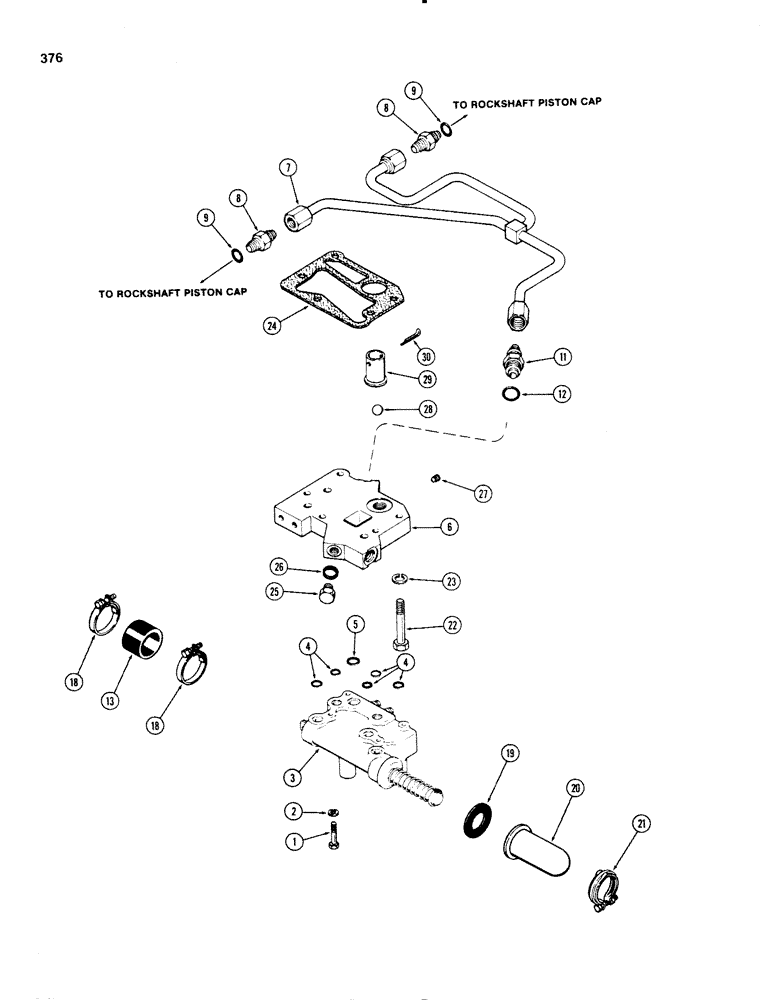

Запчасти Case IH 1270 (376) - D.O.M. CONTROL VALVE, MANIFOLD AND TUBES (09) - CHASSIS/ATTACHMENTS

1

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2", Valve to manifold

1шт.

1

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Valve to manifold Hex, 5/16"-18 x 2 3/4", G5

3шт.

2

92-5

LOCK WASHER,5/16"

4шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - depth & position, See Figure: 378

1шт.

4

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- draft control valve to manifold (1/2 x 11/16 x 3/32")

5шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- draft control valve to manifold (5/8 x 13/16 x 3/32")

1шт.

6

A64013

MANIFOLD

- depth control valve

1шт.

7

A66424

TUBE

- lift cylinder

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 9

2шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight (tube to manifold), Includes Ref: 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (3/4 x 15/16 x 3/32")

1шт.

13

A63472

HOSE

- control valve to linkage hsg

1шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

control valve to linkage hsg #28, 1.31/2.25 Type F Worm

2шт.

19

A65542

GASKET

- control valve spool cover

1шт.

20

A63473

COVER

- control valve spool

1шт.

21

A63475

CLAMP,50.29mm ID

- control valve spool cover

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.) manifold to trans. case

5шт.

23

92-6

LOCK WASHER,3/8"

5шт.

24

A64014

GASKET

- draft control valve manifold

1шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy (Manifold), Incl Ref 26 Hex Soc, 3/4"-16 ORB

1шт.

27

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex. socket hd.) (manifold)

1шт.

28

211-19

BALL,7/8" Dia

- (.) 7/8" Dia

1шт.

29

A63458

TUBE

- manifold oil return valve

1шт.

30

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.
