Запчасти Case IH 1270 (370) - DRAFT CONTROL SENSING LINKAGE, FIRST USED TRANSMISSION SERIAL NUMBER 10056217 (09) - CHASSIS/ATTACHMENTS

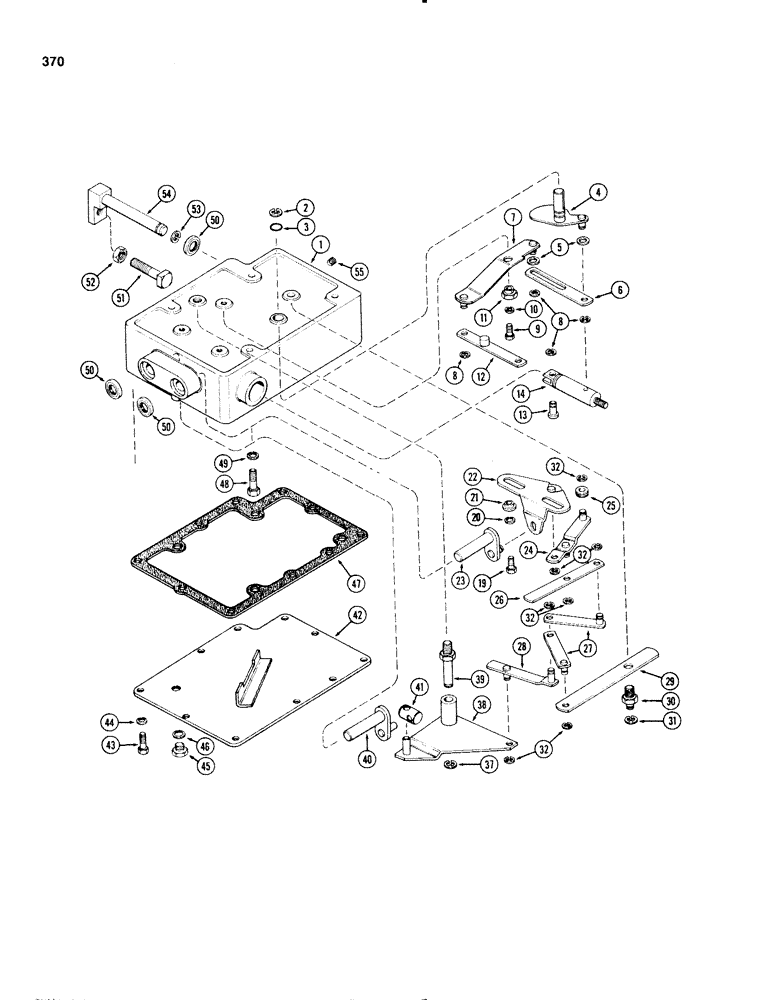

Схема запчастей Case IH 1270 - (370) - DRAFT CONTROL SENSING LINKAGE, FIRST USED TRANSMISSION SERIAL NUMBER 10056217 (09) - CHASSIS/ATTACHMENTS
6
53
41
38
7
54
47
31
44
27
14
49
40
12
51
8
50
22
42
5
52
20
13
11
29
9
1
3
21
32
48
30
24
50
43
55
46
32
50
4
28
26
25
8
45
19
32
37
23
39
32
2
10

Артикул

Название

Примечание

Количество

1

A137584

HOUSING

- draft control linkage

1шт.

2

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , follow-up cam shaft #62, .480" Dia, E-Type

1шт.

3

D26872

O-RING

- 1/2 x 5/8 x 1/16" (Replaces A18414)

1шт.

4

A63403

CAM

- follow-up

1шт.

5

122-19

GROMMET

- steel, 3/8"

2шт.

6

A63424

LINK

- J, valve lockout

1шт.

7

A65087

ARM

- H. valve lockout

1шт.

8

A27795

RING

- retaining

4шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

A63423

TRUNNION

- eccentric

1шт.

12

A63425

PLATE

LINK - G, valve spool

1шт.

13

A63428

PIN

- valve spool

1шт.

14

REF

INSTRUCTION

END - valve spool, See Figure: 378

1шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

A63415

SLIDE

- trunnion

2шт.

22

A63413

SLIDE

- manual signal

1шт.

23

A63407

SHAFT

- manual signal

1шт.

24

A63416

LINK

- F, draft control

1шт.

25

A63418

ROLLER

- cam follower

1шт.

26

A63419

LINK

- E, draft control

1шт.

27

A63429

LINK

- D, draft control

2шт.

28

A63433

LINK

- B, draft control

1шт.

29

A63431

LINK

- C, draft control

1шт.

30

A63432

STUD

- link pivot, C (in housing)

1шт.

31

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , C link to stud #50, .392" Dia, E-Type

1шт.

32

A27795

RING

- retaining

7шт.

37

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , pivot stud #50, .392" Dia, E-Type

1шт.

38

A63436

LINK

- A, draft control

1шт.

39

A63439

STUD

- link pivot A

1шт.

40

A63411

SHAFT

- sensitivity adjustment

1шт.

41

A139420

BLOCK

- sliding pivot

1шт.

42

A139113

COVER

- control linkage

1шт.

43

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

44

92-5

LOCK WASHER,5/16"

10шт.

45

A20826

PLUG

- draft control housing cover

1шт.

46

A11530

GASKET

- draft control housing cover plug

1шт.

47

A137621

GASKET

- draft control linkage cover

1шт.

48

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

49

92-6

LOCK WASHER,3/8"

4шт.

50

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- draft control linkage housing

3шт.

51

181-480

SET SCREW,Sq Hd, 1/2"-13 x 2 1/4"

SCREW - 1/2 x 2-1/4" oval pt. set

1шт.

52

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex, jam

1шт.

53

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , draft control signal shaft #62, .480" Dia, E-Type

1шт.

54

A63400

SHAFT

- signal, draft control

1шт.

55

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. sckt. hd

1шт.

Выбрано товаров: 47
