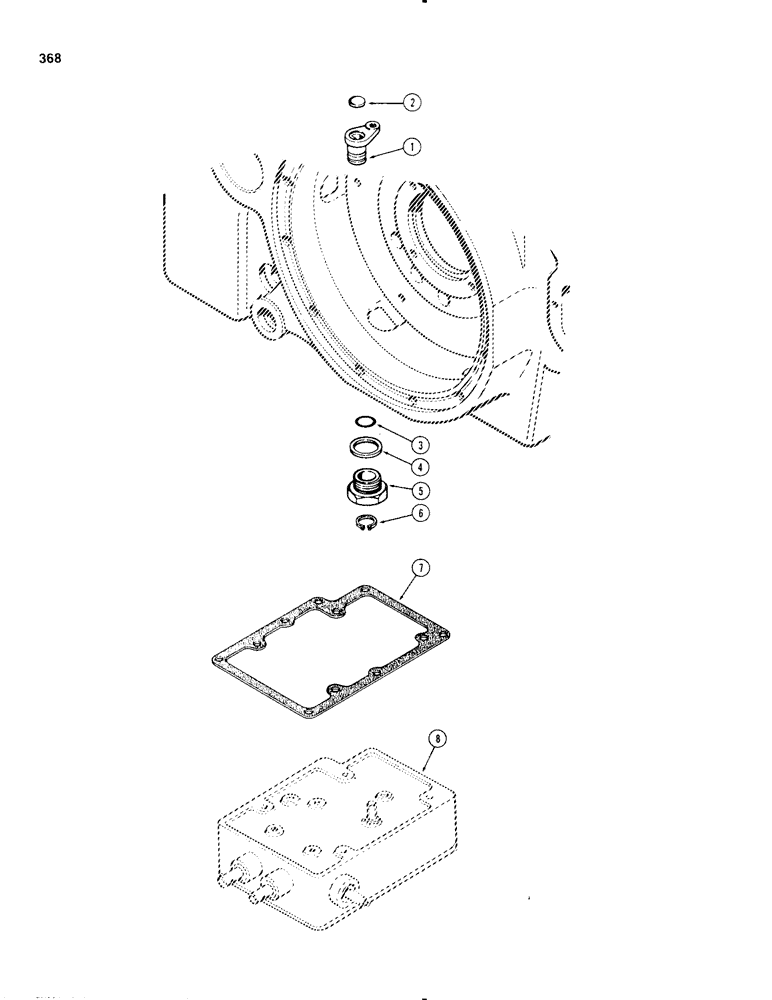

Запчасти Case IH 1270 (368) - DRAFT CONTROL SENSING LEVER (09) - CHASSIS/ATTACHMENTS

1

A64430

LEVER

- draft control follow-up

1шт.

2

41-12

PLUG,Exp, 3/4"

- (3/4" Welch) follow-up lever

1шт.

3

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- draft control follow-up lever

1шт.

4

A63447

GASKET

- draft control follow-up bushing

1шт.

5

A64429

BUSHING

- draft control follow-up (in trans. case)

1шт.

6

B18208

SNAP RING,#100, Ext

follow-up lever #100, Ext

1шт.

7

A65553

GASKET

- draft control linkage housing

1шт.

8

REF

INSTRUCTION

LINKAGE ASSEMBLY - sensing, See Figure: 370

1шт.
