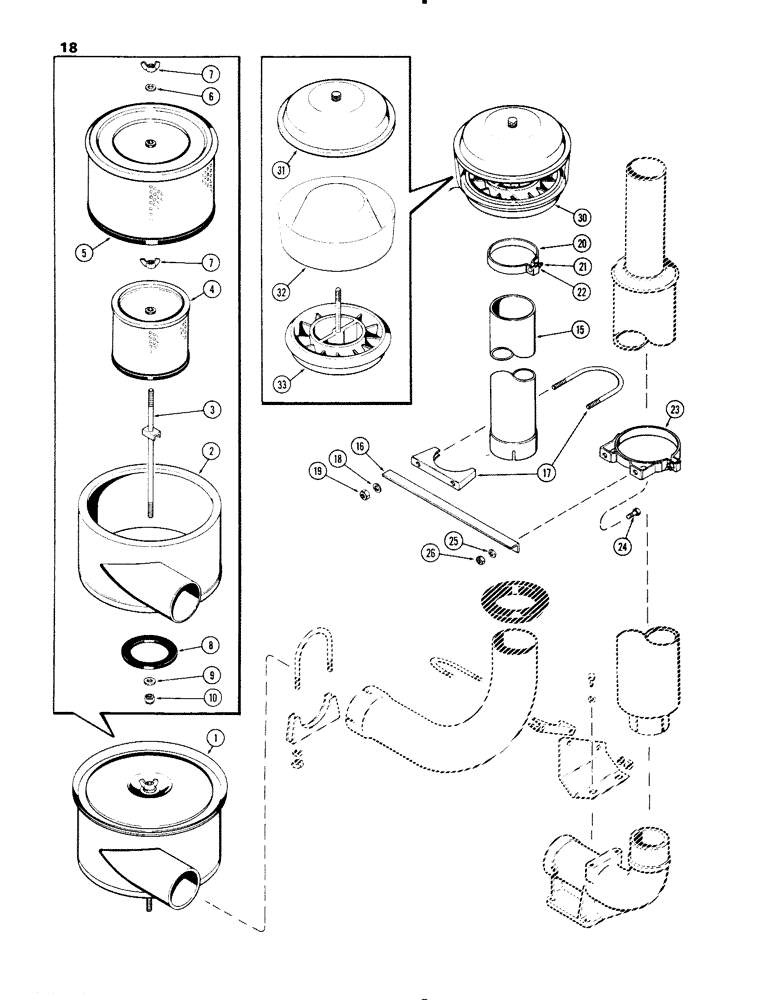

Запчасти Case IH 1270 (018) - AIR CLEANER, STANDARD, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A63745

X

AIR CLEANER ASSEMBLY, Includes Ref: 2-10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A43737

STUD

- air cleaner mounting

1шт.

4

A43735

AIR CLEANER

ELEMENT - inner safety

1шт.

5

A43734

AIR CLEANER

ELEMENT - outer primary

1шт.

6

A42755

WASHER

- sealing

1шт.

7

129-549

WING NUT,Locking, 3/8"-16

NUT - 3/8" N.C. wing

2шт.

8

A43736

GASKET

- bottom mount sealing

1шт.

9

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

1шт.

10

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. essna lock

1шт.

15

A64804

TUBE

- pre-cleaner extension

1шт.

16

A64805

BRACKET

- extension clamp

1шт.

17

A64801

CLAMP

ASSEMBLY - extension to bracket, Includes Ref: 18, 19

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-123

NUT,3/8"-24, G5

2шт.

20

A64802

CLAMP

ASSEMBLY - pre-cleaner to extension, Includes Ref: 21, 22

1шт.

21

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1 1/2"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

23

A64803

CLAMP

-, Serial Range: muffler-bracket

1шт.

24

113-168

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 x 5/8" N.C. hex

2шт.

25

192-41

WASHER - lock, 5/16"

2шт.

26

129-300

NUT - 5/16" N.C. hex

2шт.

30

A43616

FILTER

PRE-CLEANER ASSEMBLY, Includes Ref: 31-33

1шт.

31

A42465

COVER

- pre-cleaner

1шт.

32

A42467

HOUSING

BOWL - pre-cleaner

1шт.

33

NSS

NOT SOLD SEPARAT

SLEEVE - pre-cleaner

1шт.
