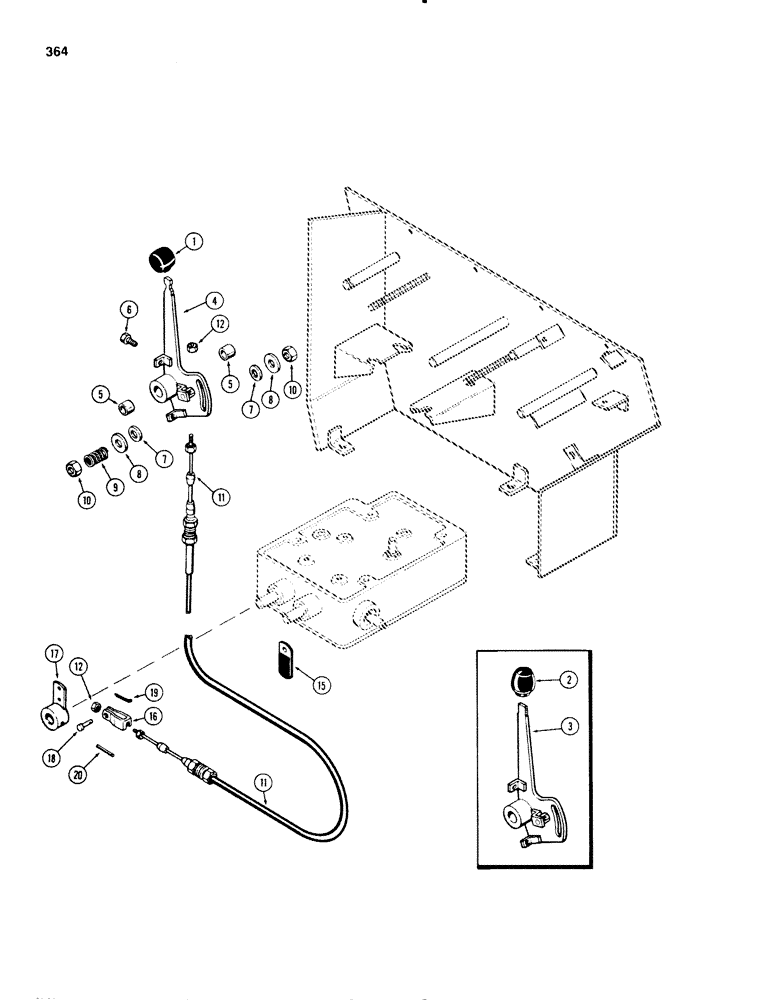

Запчасти Case IH 1270 (364) - D.O.M. SENSING CONTROLS (09) - CHASSIS/ATTACHMENTS

1

A137806

KNOB

- rubber, hand lever (Replaces A65699)

1шт.

2

A65699

KNOB

- plastic, hand lever (Order A137806)

1шт.

3

A61076

LEVER

ASSEMBLY - hand (w/threaded top) (Order Ref. 1 & 4)

1шт.

4

A137823

LEVER

ASSEMBLY - hand, sensing, Includes Ref: 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- hand lever

2шт.

6

A59463

BOLT

- (1/4 x 5/8" w/nylon insert), lever stop

2шт.

7

A61069

DISC

- friction

2шт.

8

195-2172

WASHER,7/16" x 1 1/4" x .083"

- back-up (for friction disc)

2шт.

9

A65583

SPRING

- friction disc

1шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT - lock (3/8" N.C. jam), friction disc

2шт.

11

A63040

CABLE

- console control

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- hex. (#10 N.F. Keps)

2шт.

15

A37179

CLIP

- cable to lower rear shift cover bolt

1шт.

16

A65265

YOKE

- cable

1шт.

17

A63037

LEVER

- lower sensing

1шт.

18

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis (3/16")

1шт.

19

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Lever to signal shaft 3/16" x 1 3/8", Slotted

1шт.
