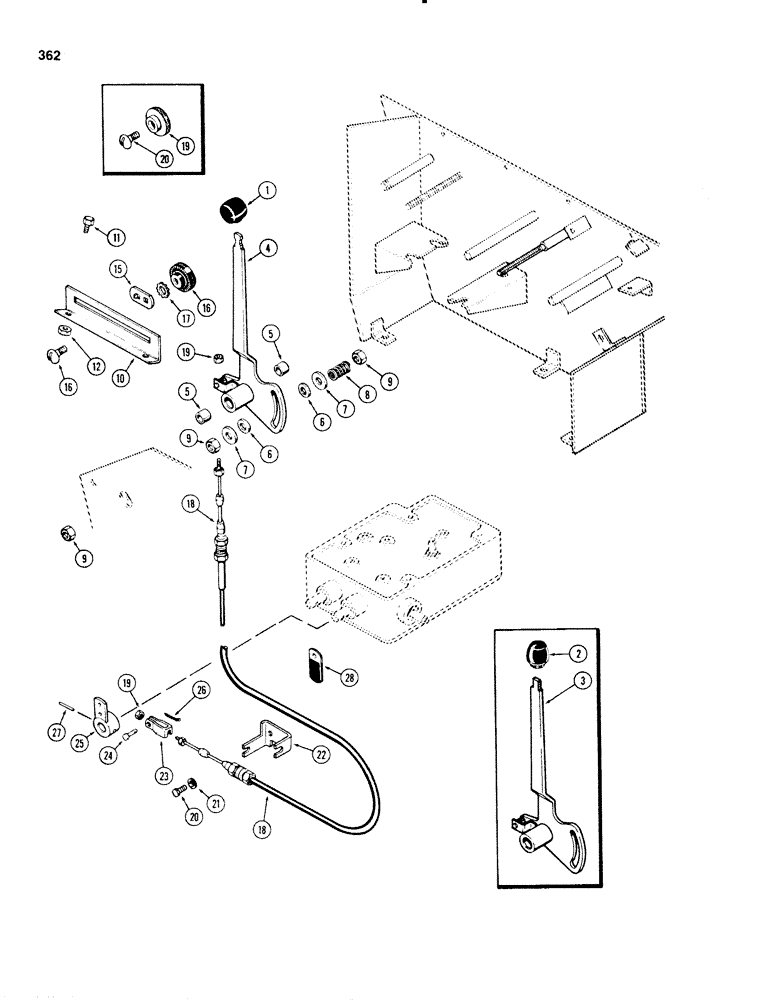

Запчасти Case IH 1270 (362) - D.O.M. CONTROLS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A137806
KNOB
- rubber, hand lever (Replaces A65699)
1шт.
2
A65699
KNOB
- plastic, hand lever (Order A137806)
1шт.
3
A63033
LEVER
ASSEMBLY - hand, D.O.M. (w/threaded top) (Order Ref. 1 and 4)
1шт.
4
A137820
LEVER
ASSEMBLY - hand, D.O.M., Includes Ref: 5
1шт.
5
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- pivot
2шт.
6
A61069
DISC
- friction
2шт.
7
195-2172
WASHER,7/16" x 1 1/4" x .083"
- back-up (7/16 x 1-1/4 x 5/64")
2шт.
8
A65583
SPRING
- compression, friction disc
1шт.
9
131-1306
JAM NUT,Jam, 3/8"-16
NUT - lock, 3/8" N.C. hex. jam
2шт.
10
A59273
BRACKET
QUADRANT - hand lever
1шт.
11
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
12
131-113
SPRING NUT,J, Ret, 5/16"-18
Tinnerman J, Ret, 5/16"-18
2шт.
15
G15950
STOP
- quadrant, hand lever
1шт.
16
A143181
NUT
- plastic (1st used P.I.N. 8810817)
2шт.
17
193-58
LOCK WASHER,Ext Tooth, 1/2"
WASHER - lock, 1/2" ext. shakeproof (1st used P.I.N. 8810817)
2шт.
18
111-360
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5
BOLT, CARRIAGE, (1st used P.I.N. 8810817) Short NK, 3/8"-16 x 3/4", G5
2шт.
19
G15951
NUT
- steel, (Order A143181), Serial Range: -8810817
2шт.
20
111-317
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2, Serial Range: -8810817
2шт.
23
A63040
CABLE
- control, D.O.M.
1шт.
24
193-100
LOCK WASHER,Int Tooth, 1 1/4"
NUT - #10-32 hex. Keps
2шт.
25
A65264
BRACKET
- anchor, control cable
1шт.
26
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
27
92-5
LOCK WASHER,5/16"
2шт.
28
A65265
YOKE
- control cable to lower lever
1шт.
29
141-1
CLEVIS PIN,3/16" x .580"
PIN - yoke
1шт.
30
132-7
COTTER PIN,1/16" x 3/4"
Pin, Split (Cotter), 1/16" x 3/4"
1шт.
31
A63037
LEVER
- D.O.M. control linkage
1шт.
32
138-99
LOCK PIN,3/16" x 1 3/8", Slotted
PIN, 3/16" x 1 3/8", Slotted
1шт.
33
A37179
CLIP
- control cable to shift cover
1шт.
Выбрано товаров: 29
