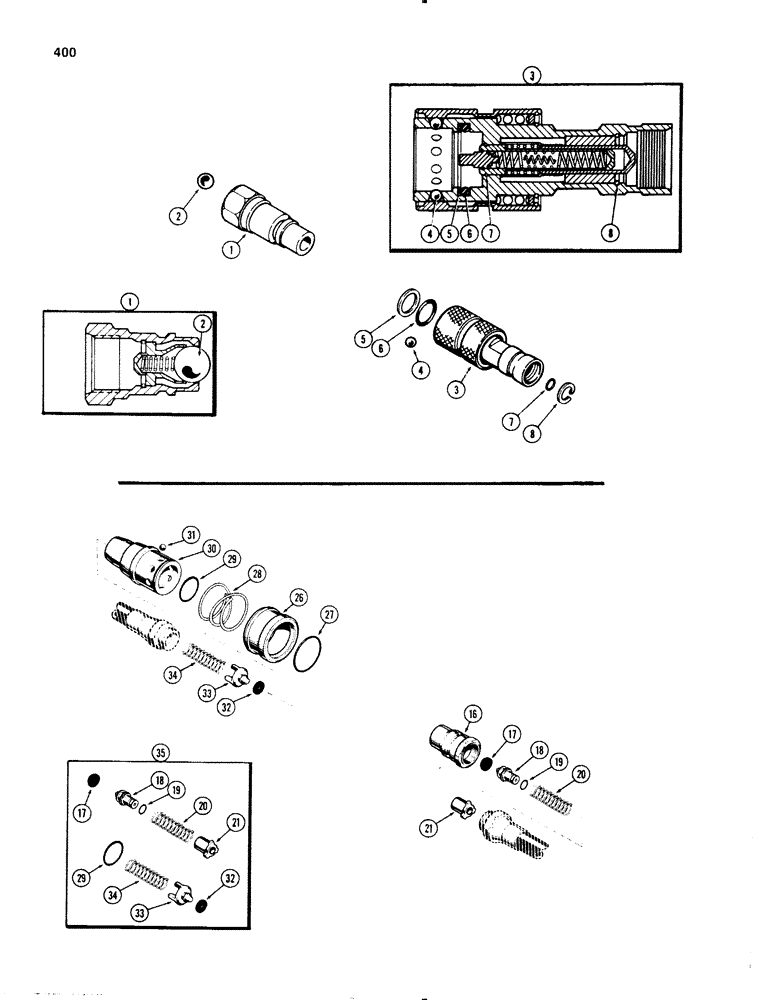

Запчасти Case IH 1270 (400) - REMOTE HYDRAULIC HOSE COUPLINGS, PRESSURE COUPLING, FIRST USED P.I.N. 8770001 (08) - HYDRAULICS

1

A66816

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away (male half)

1шт.

2

211-316

BALL,17/32" Dia

- (.) 17/32" Dia

1шт.

3

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away (female half) (Replaces A141156)

1шт.

4

211-355

BALL

- (3/16" dia.)

10шт.

5

A44890

RING

- back-up

1шт.

A45600

KIT

- seal (Replaces A45281)

1шт.

6

A45601

SEAL

- body (51/64" I.D.)

1шт.

7

A45363

SEAL

- poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away (male half), standard, includes Ref: 16-21, Serial Range: -8770001

1шт.

16

A27356

PIPE FITTING

BODY - coupling, standard, Serial Range: -8770001

1шт.

17

A33964

SEAL

- piston, standard coupling, Serial Range: -8770001

17шт.

Part of Repair Kit P/N A40459

1шт.

18

A27508

PISTON

- coupling, standard, Serial Range: -8770001

18шт.

Part of Repair Kit P/N A40459

1шт.

19

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston (1/4 x 3/8 x 1/16"), standard coupling, Serial Range: -8770001

19шт.

Part of Repair Kit P/N A40459

1шт.

20

A27351

SPRING

- piston, standard coupling, Serial Range: -8770001

20шт.

Part of Repair Kit P/N A40459

1шт.

21

51200858

SLEEVE

- piston, standard coupling, Serial Range: -8770001

21шт.

Part of Repair Kit P/N A40459

1шт.

A28542

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - break-away (female half), standard, Includes Ref: 26-34, Serial Range: -8770001

1шт.

26

A27353

SLEEVE

SLEEVE - lock & release, standard coupling, Serial Range: -8770001

1шт.

27

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve retaining, standard coupling, Serial Range: -8770001

1шт.

28

A27354

SPRING

- sleeve tension, standard coupling, Serial Range: -8770001

1шт.

29

A34848

O-RING

- (7/8 x 1-1/8 x 1/8"), standard coupling, Serial Range: -8770001

1шт.

30

A27349

BODY

- coupling, standard, Serial Range: -8770001

1шт.

31

211-7

BALL,1/4" Dia

standard coupling 1/4" Dia, Serial Range: -8770001

8шт.

32

A33964

SEAL

- piston, standard coupling, Serial Range: -8770001

32шт.

Part of Repair Kit P/N A40459

1шт.

33

A26215

PISTON

- coupling socket, standard, Serial Range: -8770001

33шт.

Part of Repair Kit P/N A40459

1шт.

34

A11324

SPRING

- piston, standard coupling, Serial Range: -8770001

34шт.

Part of Repair Kit P/N A40459

1шт.

35

A40459

KIT

- repair, P/N A28541 and P/N A28542 couplings, Includes: Ref. 17 - 21 and 32 - 34, standard, Serial Range: -8770001

1шт.
