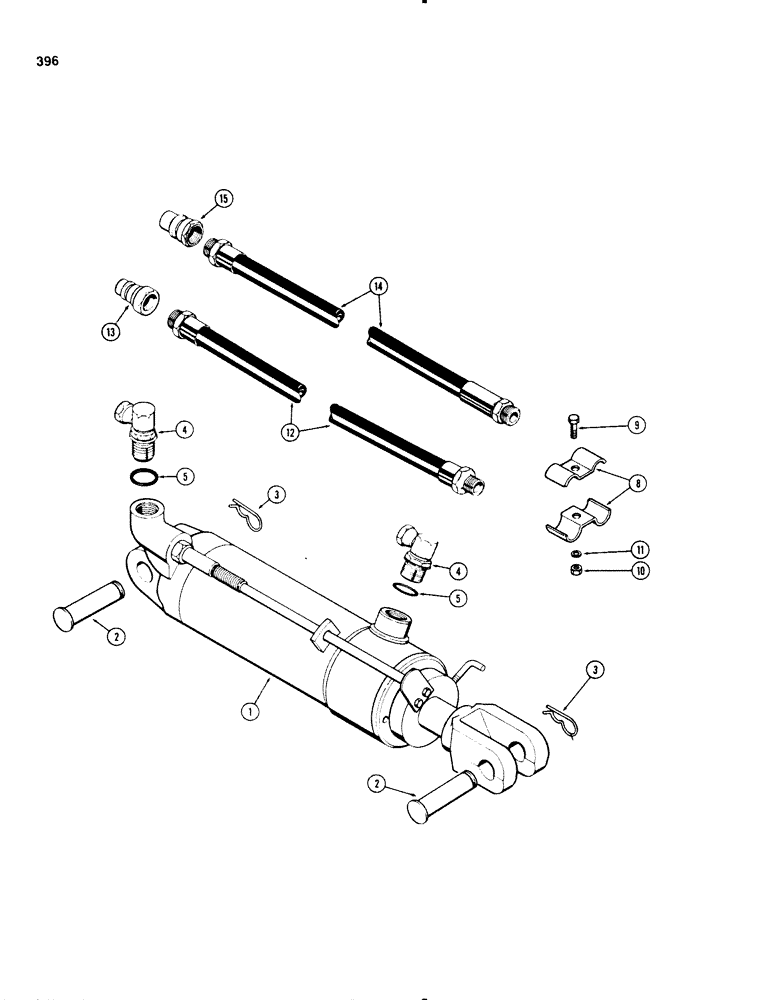

Запчасти Case IH 1270 (396) - REMOTE HYDRAULIC CYLINDER ATTACHMENT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - (4 x 8"), See Figure: 392

1шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - (3-1/4 x 8"),See Figure: 394

1шт.

2

A27347

PIN

- cylinder retaining

2шт.

3

A29054

HAIR PIN COTTER

- spring

2шт.

4

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 90deg. adapter, 5/8" tube x 7/8"-14

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32"

1шт.

8

A27440

CLAMP

- hose

2шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

A20816

HOSE

- 106" long (1/2" P.T. x 7/8"-18), standard coupling, Serial Range: -8770001

1шт.

12

A20817

HOSE

- 118" long (1/2" P.T. x 7/8"-18), standard coupling, Serial Range: -8770001

1шт.

13

A28541

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away, male, See Figure: 400, standard, Serial Range: -8770001

2шт.

14

A135006

HYDRAULIC HOSE,0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

Pressure coupling, 1st used P.I.N. 8770001 0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

1шт.

14

A135007

HYDRAULIC HOSE,0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

Pressure coupling, 1st used P.I.N. 8770001 0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

1шт.

15

A66816

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away, male, See Figure: 400, pressure, 1st used P.I.N. 8770001

2шт.
