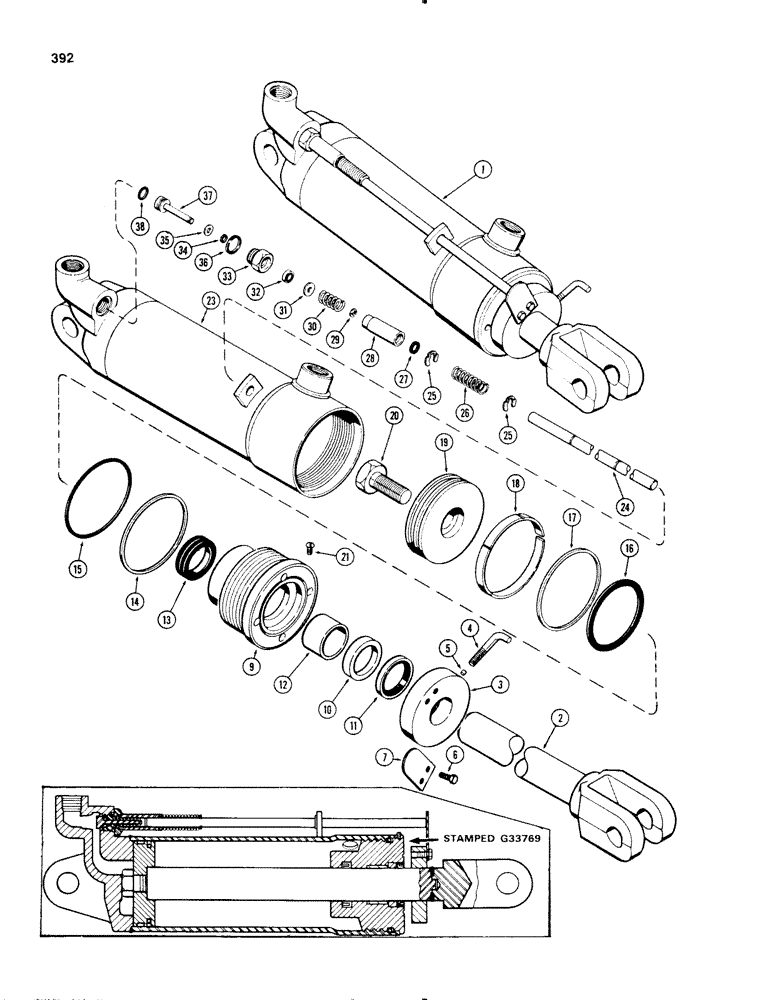

Запчасти Case IH 1270 (392) - REMOTE HYDRAULIC CYLINDER, 4 INCH X 8 INCH CYLINDER (08) - HYDRAULICS

1

G33769

CYLINDER

ASSEMBLY - (Stamped G33769 on gland), Includes Ref: 2-38

1шт.

2

G33772

ROD

- piston

1шт.

3

G34980

COLLAR

- stop (w/3/8" N.C. tapped hole)

1шт.

3

G32074

COLLAR

- stop (w/1/4" N.C. tapped hole) (Order G34980, G34977 & G34979)

1шт.

4

G34977

BOLT

- hook (3/8" N.C.)

1шт.

4

G32077

BOLT

- hook (1/4" N.C.)

1шт.

5

G34979

PLUG

- locking (5/16" dia.)

1шт.

5

G32076

PLUG

- locking (3/16" dia.)

1шт.

6

187-1515

SELF-TAP SCREW,1/4" - 20 x 3/4"

SCREW - (1/4 x 1/2" N.C. rd. hd.)

2шт.

7

G32075

PLATE

- stop

1шт.

G34773

GLAND

ASSEMBLY - packing (hand stamp for identification), Includes Ref: 9-15

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND

1шт.

10

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

SCRAPER - piston rod (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

12

G34302

BEARING

- center

1шт.

13

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- (4 x 4-1/4 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

17

G31928

RING

- seal, piston (teflon)

1шт.

18

G100448

RING,101.6mm OD, Ext

- water, piston (nylon) (Replaces G31927)

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

19

G33774

PISTON

- cylinder

1шт.

20

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

21

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - (#8-32 x 1/4" rd. hd. slotted self-tapping)

1шт.

23

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

24

G32428

ROD

- push

1шт.

25

G32429

RING

- retaining, Y-type

2шт.

26

G31934

SPRING

- rod return (2-5/16" long)

1шт.

27

A8613

O-RING,0.426" ID x 0.566" OD

- (7/16 x 9/16 x 1/16")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

28

G32427

SLEEVE

- protector

1шт.

29

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

30

G31980

SPRING

- plunger return (1" long)

1шт.

31

G31929

WASHER

- spring backing (7/32 x 5/8 x 1/16")

1шт.

32

G31932

WIPER SEAL

SEAL - wiper (3/16 x 1/2 x 1/8")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

33

G31933

GLAND

ASSEMBLY - valve assy, Includes Ref: 34,35

1шт.

34

G31935

O-RING,0.174" ID x 0.377" OD

- (11/64 x 3/8 x 7/64")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

35

G31948

WASHER

- (13/64 x 13/32 x 1/16")

1шт.

37

G31943

PLUNGER

- valve

1шт.

38

G32079

CYLINDER

O-RING - (27/64 x 5/8 x 3/32")

1шт.

Part of Cylinder Repair Kit P/N G31946

1шт.

G31946

KIT

- cylinder repair, Includes: Ref. 11, 13 - 16, 18, 27, 32, 34, 36 and 38

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.
