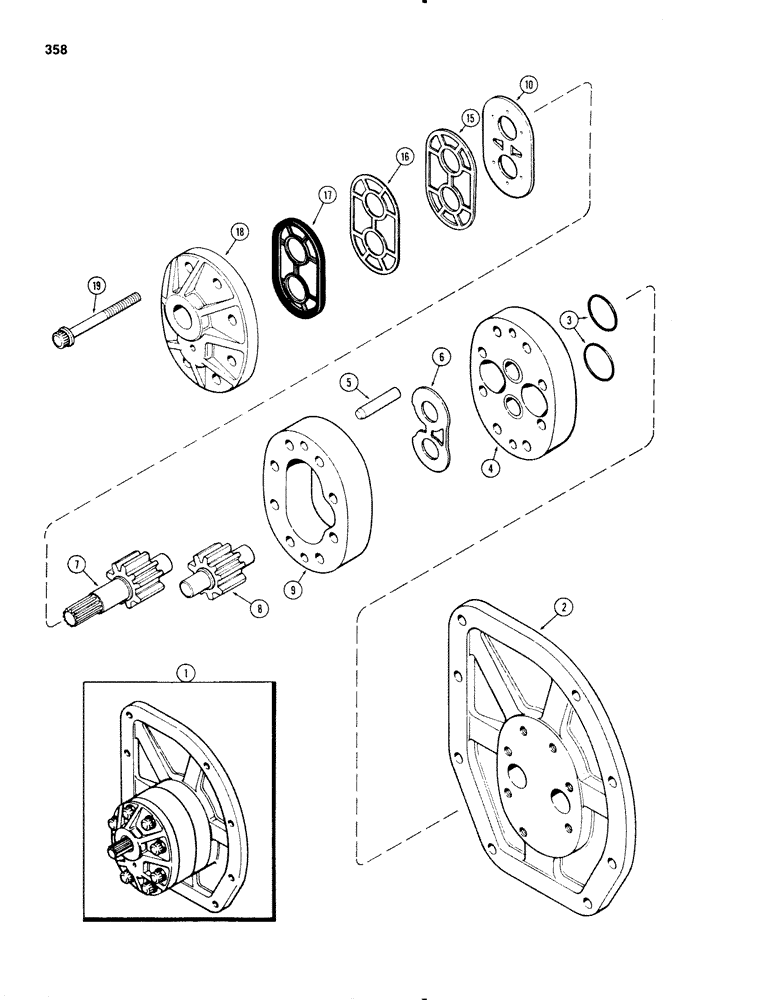

Запчасти Case IH 1270 (358) - A64174 HYDRAULIC PUMP (08) - HYDRAULICS

1

A64174

PUMP

ASSEMBLY - hydraulic, optional independent L.H. variable remotes, Includes Ref: 2-19

1шт.

2

NSS

NOT SOLD SEPARAT

FLANGE - pump port cover plate

1шт.

3

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

- flange port

2шт.

Part of Repair Kit P/N A43668

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - dowel, pump body alignment

2шт.

6

A45358

PLATE

- thrust (Replaces D41322)

1шт.

Part of Repair Kit P/N A43668

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - pump drive with spline

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - idler, driven

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - gear

1шт.

10

H335331

DIAPHRAGM

- gear seal

1шт.

Part of Repair Kit P/N A43668

1шт.

15

H260927

GASKET

- protector back up (Replaces H273920)

1шт.

Part of Repair Kit P/N A43668

1шт.

16

H260935

GASKET

PROTECTION - gasket (Replaces A42305)

1шт.

Part of Repair Kit P/N A43668

1шт.

17

A42174

SEAL

- diaphragm

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - front drive bearing pilot

1шт.

19

166-56

BOLT - (3/8 x 4" N.C., 12 pt. flanged)

8шт.

A43668

SEAL,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

KIT - repair, Includes: Ref. 3, 6, 10, 15 and 16

1шт.
