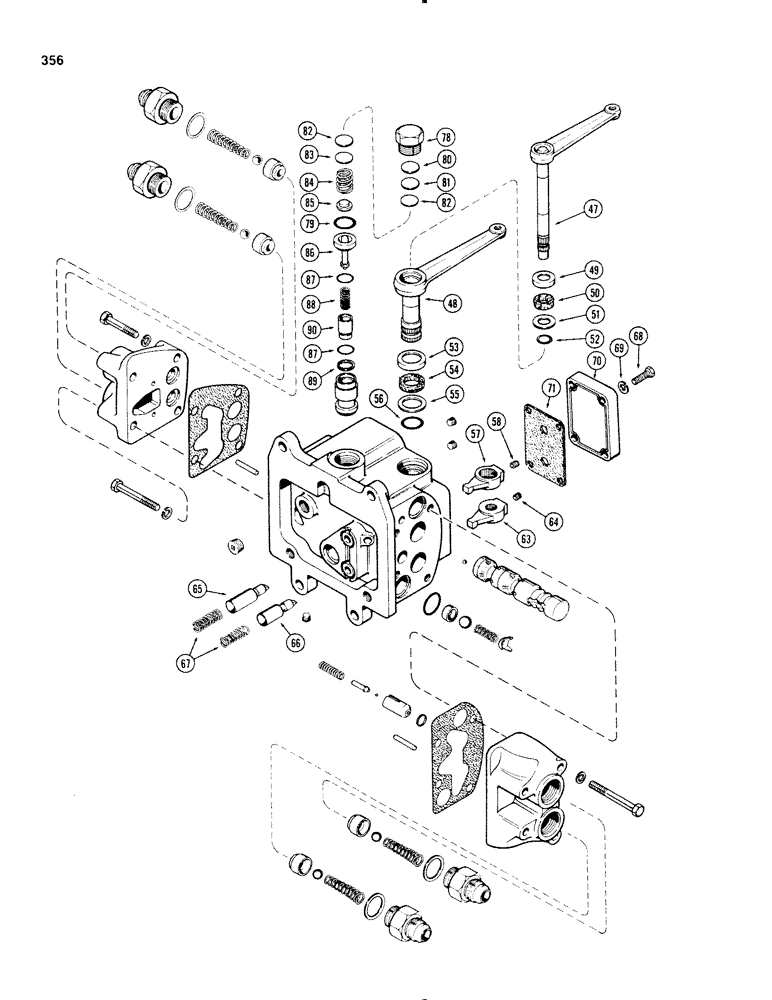

Запчасти Case IH 1270 (356) - LEFT HAND REMOTE HYDRAULIC CONTROL VALVE, WITH RELIEF VALVE (08) - HYDRAULICS

A141383

VALVE

ASSEMBLY - L.H. variable remote (Replaces A139215), Includes Ref: 47-90

1шт.

47

A57605

LEVER

- shifter shaft (outer)

1шт.

48

A57604

LEVER

- shifter shaft (inner)

1шт.

49

A30875

RETAINER

- felt washer (17/32" hole)

1шт.

Part of Seal Kit P/N A43086

1шт.

50

A30853

WASHER

- felt (1/2 x 15/16 x 1/4")

1шт.

Part of Seal Kit P/N A43086

1шт.

51

A27409

WASHER

- seal, spool (33/64 x 63/64 x 1/32")

1шт.

Part of Seal Kit P/N A43086

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

- outer handle (1/2 x 11/16 x 3/32")

1шт.

Part of Seal Kit P/N A43086

1шт.

53

A30880

RETAINER

- felt washer (49/64" hole)

1шт.

Part of Seal Kit P/N A43086

1шт.

54

A30879

WASHER

- felt (3/4 x 1-3/16 x 1/4")

1шт.

Part of Seal Kit P/N A43086

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, spool (49/64 x 1-15/64 x 1/32")

1шт.

Part of Seal Kit P/N A43086

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- seal, shaft (3/4 x 15/16 x 3/32")

1шт.

Part of Seal Kit P/N A43086

1шт.

57

A57546

ARM

ASSEMBLY - valve spool shift lever (inner), Includes Ref: 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

63

A57547

ARM

ASSEMBLY - hyd. valve spool shifter lever (outer), Includes Ref: 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

65

A57554

PLUNGER

- hyd. valve spool (inner)

1шт.

66

A57555

PLUNGER

- hyd. valve spool (outer)

1шт.

67

A66472

SPRING

- spool plunger (9/16" O.D. x 1-21/32" free length)

2шт.

68

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

SCREW - machine (1/4 x 1" N.C. rd. hd.)

4шт.

69

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

70

A66435

CAP

- hyd. valve body

1шт.

71

A76374

GASKET

- hyd. valve body cap

1шт.

Part of Seal Kit P/N A43086

1шт.

78

A34392

PLUG

- pilot relief valve

1шт.

79

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

80

A34694

SHIM,.0201" Thk

Pilot relief spring (See note) .0201" Thk

1шт.

81

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) (See note) .0149" Thk

1шт.

82

A34391

SHIM,.0149" Thk

Pilot relief spring (See Note) (Order A34817) .0149" Thk

1шт.

82

A34390

SHIM,.0329" Thk

Pilot relief spring (See note) .0329" Thk

1шт.

83

A34849

SHIM,.0105" Thk

Pilot relief spring (See note) .0105" Thk

1шт.

83

A61467

SHIM,.005" Thk

Pilot relief spring (See note) .005" Thk

1шт.

84

A61466

SPRING

- pilot relief (49/64" O.D. x 11/16" free length)

1шт.

85

A57558

RETAINER

- pilot spring

1шт.

86

A57556

PISTON

ASSEMBLY - pilot

1шт.

87

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- pilot relief sleeve (5/8 x 3/4 x 1/16")

2шт.

Part of Seal Kit P/N A42888

1шт.

Part of Seal Kit P/N A43086

1шт.

88

A34382

SPRING

- pilot relief valve (15/32" O.D. x 1" free length)

1шт.

89

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Part of Seal Kit P/N A42888

1шт.

Part of Seal Kit P/N A43086

1шт.

90

A57553

PISTON

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal, Includes: Ref. 49 - 56, 71, 79, 87 and 89

1шт.

A42888

KIT

- seal Includes: Ref. 79, 87 and 89

1шт.
