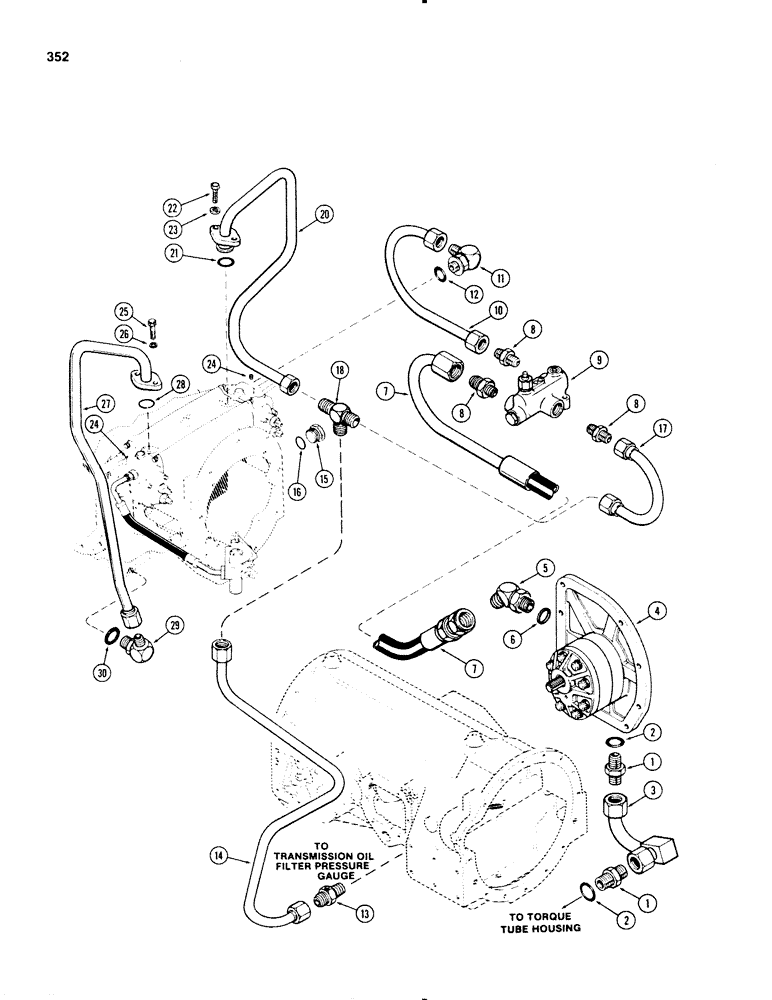

Запчасти Case IH 1270 (352) - REMOTE HYDRAULIC LINES, RIGHT HAND VALVE AND LEFT HAND VALVE WITH RELIEF VALVE (08) - HYDRAULICS

1

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref: 2

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-13/32 x 7/64")

1шт.

3

A64183

TUBE

- torque, Serial Range: tube-pump

1шт.

4

REF

INSTRUCTION

PUMP ASSEMBLY - L.H. variable remotes, See Figure 358

1шт.

5

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 45deg., Includes Ref: 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

7

A64184

TUBE

- pump to flow divider valve

1шт.

8

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight

3шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - flow divider, See Figure 360

1шт.

10

A65611

TUBE

- flow divider valve to L.H. remote hyds. valve

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref: 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

13

A66186

FITTING

CONNECTOR - variable flow return (in torque tube)

1шт.

14

A66187

TUBE

-, Serial Range: tee-sump

1шт.

15

9841223

PLUG,1-1/16" - 12 ORB

Assy, Incl. Ref: 16 Hex Soc, 1 1/16"-12 ORB

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

17

A64186

TUBE

- flow divider, Serial Range: valve-sump

1шт.

18

218-596

TEE,1 1/16"-12 37 Degree

ASSEMBLY - branch

1шт.

20

A65612

TUBE

- remote, Serial Range: valve-sump

1шт.

21

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- (1-1/8 x 7/8 x 1/8")

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOL T- (5/16 x 1-1/4" N.C. hex.) tube to trans. case

2шт.

23

12-5

WASHER

- lock (5/16")

2шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket hd.)

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.) tube to trans. case

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

A64018

PIPE

TUBE -, Serial Range: trans.-manifold

1шт.

28

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- (1-1/8 x 7/8 x 1/8")

1шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90deg., 3/4" tube x 1/2" (Replaces A64020), Includes Ref: 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (3/4 x 15/16 x 3/32")

1шт.
