Запчасти Case IH 1270 (350) - LEFT HAND REMOTE VALVE TUBES AND COUPLINGS, STANDARD COUPLING, USED PRIOR TO P.I.N. 8770001 (08) - HYDRAULICS

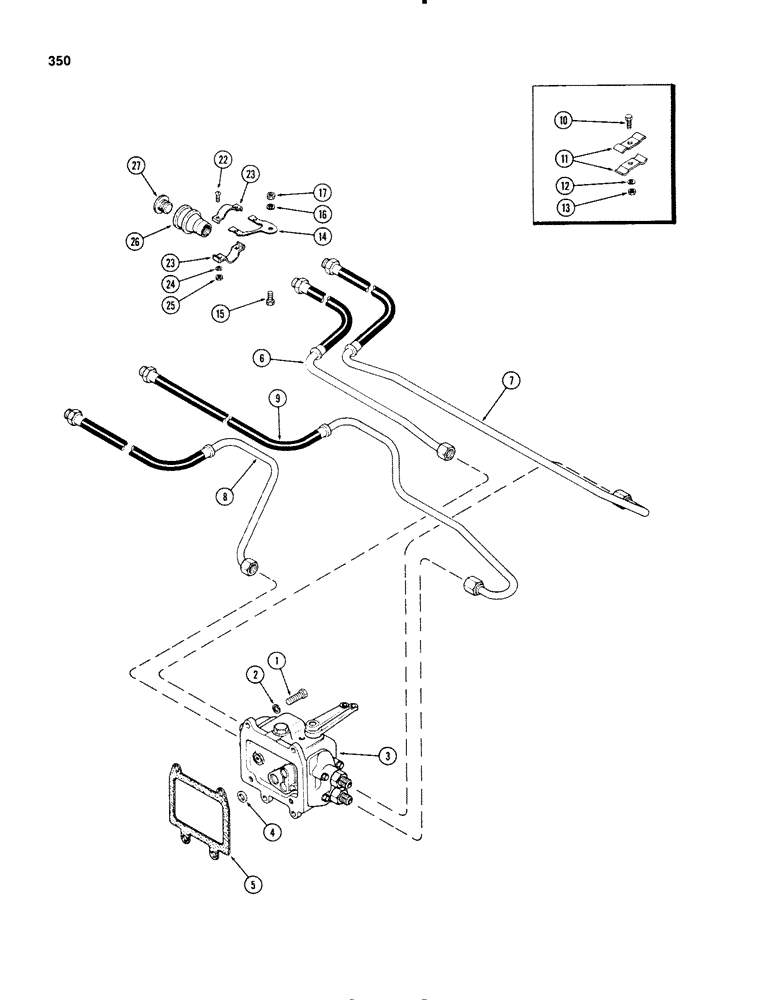

Схема запчастей Case IH 1270 - (350) - LEFT HAND REMOTE VALVE TUBES AND COUPLINGS, STANDARD COUPLING, USED PRIOR TO P.I.N. 8770001 (08) - HYDRAULICS
1
16
7
11
23
23
9
17
24
26
8
10
2
12
3
14
13
6
27
25
15
22
5
4

Артикул

Название

Примечание

Количество

1

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - L.H. variable remote, See Figure: 334

1шт.

4

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - Nylon, valve port

1шт.

5

A34138

GASKET

- valve to trans. case

1шт.

6

A65607

TUBE

- remote, upper rear

1шт.

7

A65605

TUBE

- remote, upper front

1шт.

8

A66329

TUBE

- remote, lower rear

1шт.

9

A66327

TUBE

- remote, lower front

1шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

11

A63323

CLAMP

- remote tubes

4шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

2шт.

14

A27360

BRACKET

- break-away coupling

4шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" N.C. Gripco)

4шт.

22

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine (#8-32 x 5/8" N.C. rd. hd.)

8шт.

23

A27423

CLAMP

- mtg., hyd. break-away coupling

8шт.

24

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

25

129-6

NUT,#8-32

8шт.

26

A28542

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - break-away (female) (See Note) (See Figure 372 for repairs)

4шт.

27

A65044

PLUG

- dust, coupling socket (black)

2шт.

27

A65045

PLUG

- dust, coupling socket (yellow)

2шт.
