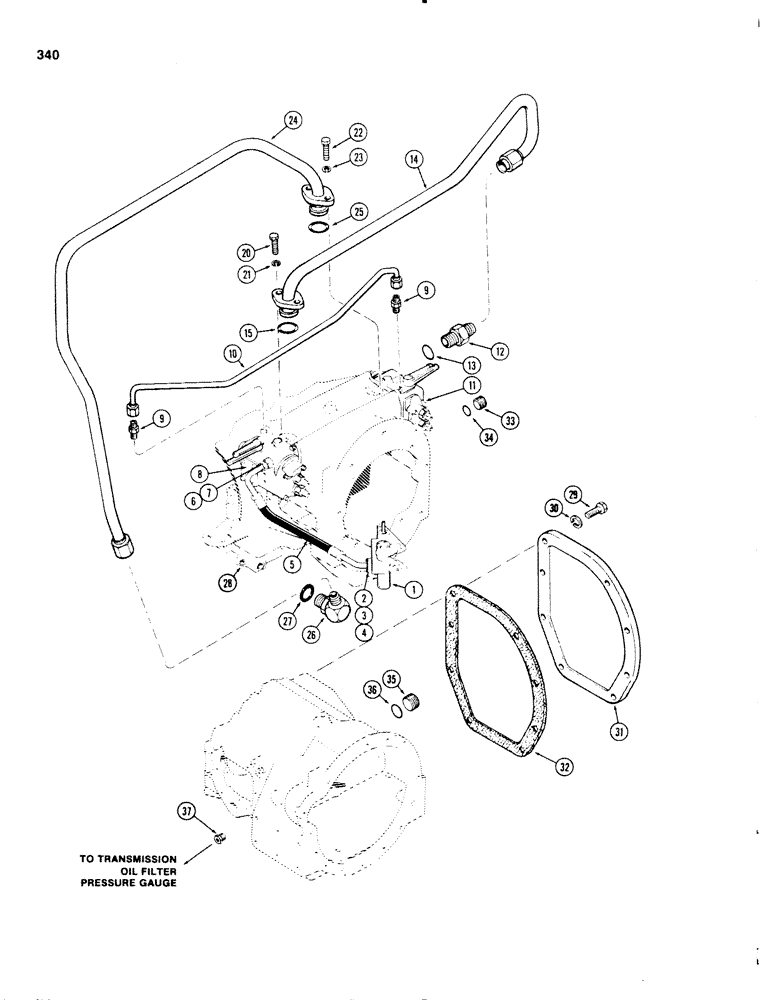

Запчасти Case IH 1270 (340) - REMOTE HYDRAULIC VALVES AND LINES, RIGHT HAND VALVE AND LEFT HAND VALVE WITHOUT RELIEF VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - P.T.O. & clutch regulator, See Figure: 288

1шт.

2

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- (7/8 x 1-1/8 x 1/8")

1шт.

3

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

A64328

HYD TUBE

- pressure

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref: 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - R.H. remote hydraulics, See Figure: 330

1шт.

9

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - (1/8 P.T. to 5/16" tube O.D.)

2шт.

10

A63770

PIPE

TUBE - detent crossover

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - L.H. remote hydraulic, See Figure: 342

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight (L.H. remote valve), Incl. Ref: 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

14

A64021

TUBE

ASSEMBLY - valve pressure

1шт.

15

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- (1-1/8 x 7/8 x 1/8")

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.) tube to trans. case

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.) tube to trans. case

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

A64019

PIPE

TUBE ASSEMBLY -, Serial Range: trans.-manifold

1шт.

25

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- (1-1/8 x 7/8 x 1/8")

1шт.

26

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90deg., 3/4" O.D. x 1/2" (Replaces A64020), Includes Ref: 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (3/4 x 15/16 x 3/32")

1шт.

28

A64013

MANIFOLD

- depth control valve

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

8шт.

30

92-6

LOCK WASHER,3/8"

8шт.

31

A63792

PLATE

COVER - pump opening

1шт.

32

A63793

GASKET

- pump opening

1шт.

33

9841223

PLUG,1-1/16" - 12 ORB

Assy (in trans. case), Incl. Ref: 34 Hex Soc, 1 1/16"-12 ORB

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

35

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Assy (in torque tube) Hex Soc, 1 5/16"-12 ORB

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-13/32 x 7/64")

1шт.

37

221-87

REDUCER,1/2" NPT x 1/8" NPT

BUSHING - pipe (1/2 x 1/8" hex. reducing) (In torque tube)

1шт.
