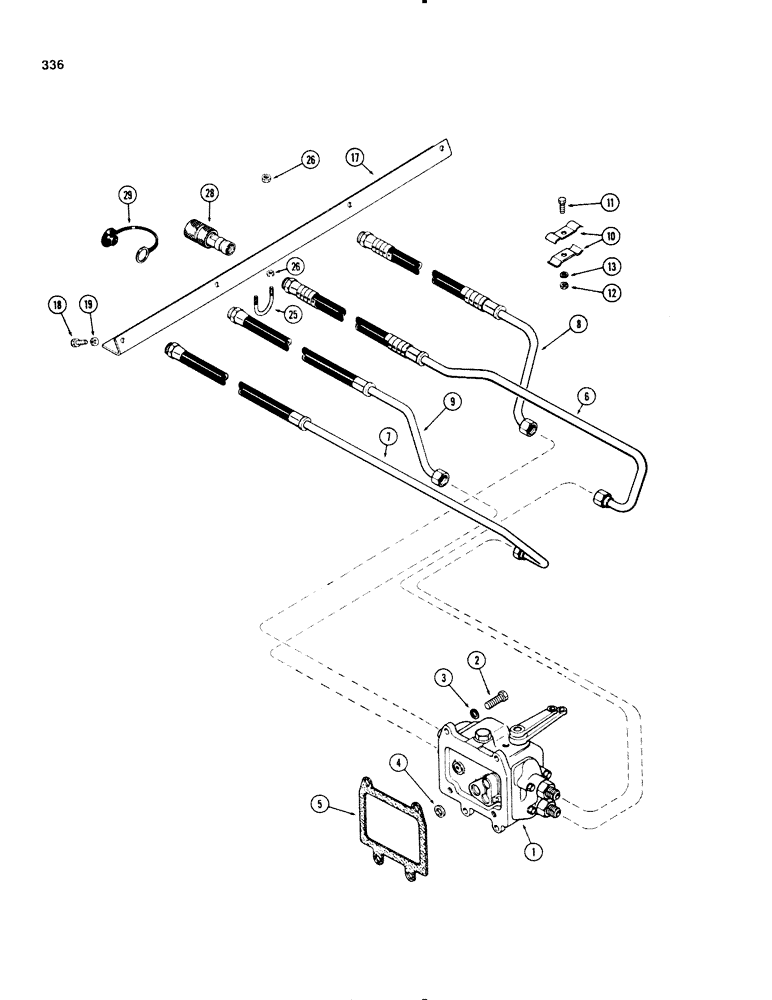

Запчасти Case IH 1270 (336) - LEFT HAND REMOTE VALVE TUBES AND COUPLINGS, PRESSURE TYPE COUPLINGS, FIRST USED P.I.N. 8770001 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote hyd. control, L.H., See Figure: 342

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 3-1/4" N.C. hex.)

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - nylon, valve port

1шт.

5

A34138

GASKET

- valve to trans. housing

1шт.

6

A66812

TUBE

- upper front, Serial Range: valve-coupling

1шт.

7

A66810

TUBE

- lower front, Serial Range: valve-coupling

1шт.

8

A66813

TUBE

- upper rear, Serial Range: valve-coupling

1шт.

9

A66811

TUBE

- lower rear, Serial Range: valve-coupling

1шт.

10

A63323

CLAMP

- remote tubes

4шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16")

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

17

A66794

BRACKET

- mounting, remote coupling

1шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

A66788

CLAMP

- remote coupling

4шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

28

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - remote hose, See Figure: 400 (Replaces A141156)

4шт.

29

A137136

PLUG

- dust, remote coupling (Replaces A135004)

4шт.
