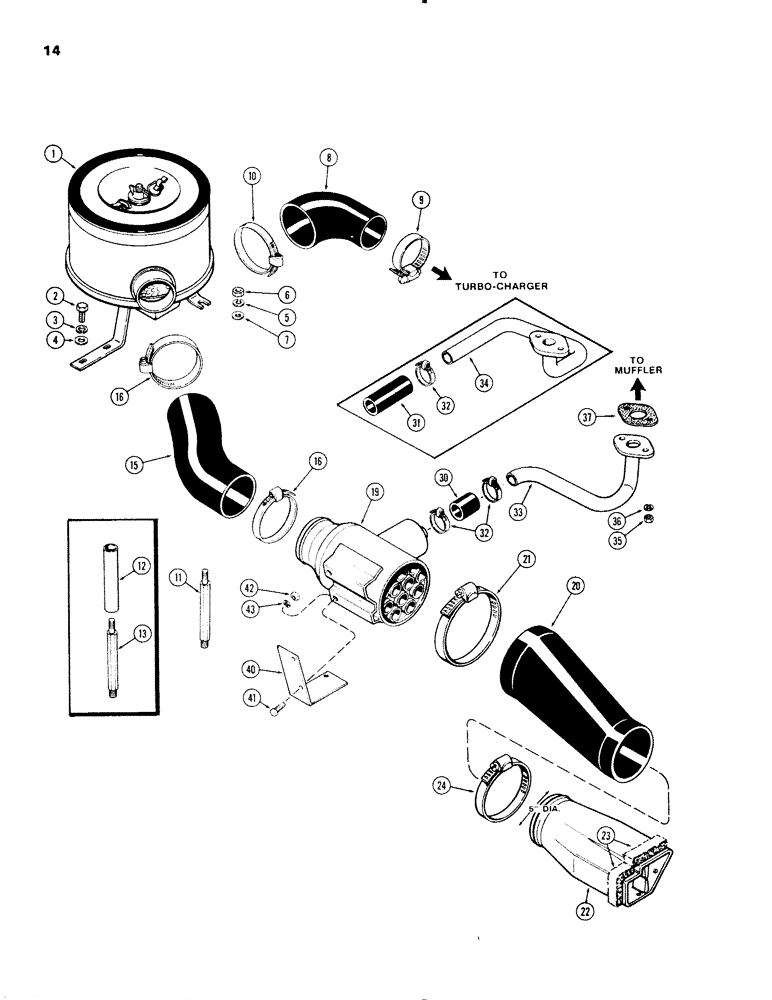

Запчасти Case IH 1270 (014) - AIR INDUCTION SYSTEM, (451 BDT) DIESEL ENGINE, WITH ASPIRATED AIR CLEANER, FIRST USED P.I.N. 8777726 (02) - ENGINE

1

A66299

CLEANER

AIR CLEANER ASSEMBLY, See Figure: 20

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

A66300

HOSE

- outlet, air cleaner

1шт.

9

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

1шт.

10

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose, 4-1/16" to 5"

1шт.

11

A143235

JACK SCREW,1/2" - 13 x 0.12"

JACKSCREW - support, air cleaner (Replaces A63748 and A63747)

2шт.

12

A63747

SPACER

- support, air cleaner (Used with A63748)

2шт.

13

A63748

JACK SCREW,1/2" - 13 x 8.32"

JACKSCREW - air cleaner support (Used with A63747)(Order A143235)

2шт.

15

A66302

HOSE

- pre-cleaner to air cleaner

1шт.

16

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - hose, 4-5/16" to 5-1/4"

2шт.

19

A137922

PRECLEANER

PRE-CLEANER

1шт.

20

A137974

HOSE

FUNNEL - pre-cleaner intake

1шт.

21

214-282

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

CLAMP - hose, 6-5/8" to 7-1/2"

1шт.

22

A139300

TUBE

ASSEMBLY - intake funnel, Includes Ref: 23

1шт.

23

A66636

SEAL

- foam (1-1/4" sq. x 4-3/16")

2шт.

24

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose, 4-1/16" to 5"

1шт.

30

A137702

HOSE

- aspirator (1-1/4" I.D. x 2")(1st used P.I.N. 8813175)

1шт.

31

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- aspirator (1-1/4" I.D. x 5-5/16"), Serial Range: -8813175

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

33

A137582

TUBE

- aspirator (1st used P.I.N. 8813175)

1шт.

34

A66205

TUBE

- aspirator, (Order A137582), Serial Range: -8813175

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

37

A76059

GASKET

- aspirator, Serial Range: tube-muffler

1шт.

40

A66208

BRACKET

- pre-cleaner support

1шт.

41

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

42

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.
