(324) - RIGHT HAND REMOTE VALVE TUBES AND COUPLINGS, PRESSURE TYPE COUPLING , FIRST USED P.I.N. 8770001

Запчасти Case IH 1270 (324) - RIGHT HAND REMOTE VALVE TUBES AND COUPLINGS, PRESSURE TYPE COUPLING , FIRST USED P.I.N. 8770001 (08) - HYDRAULICS

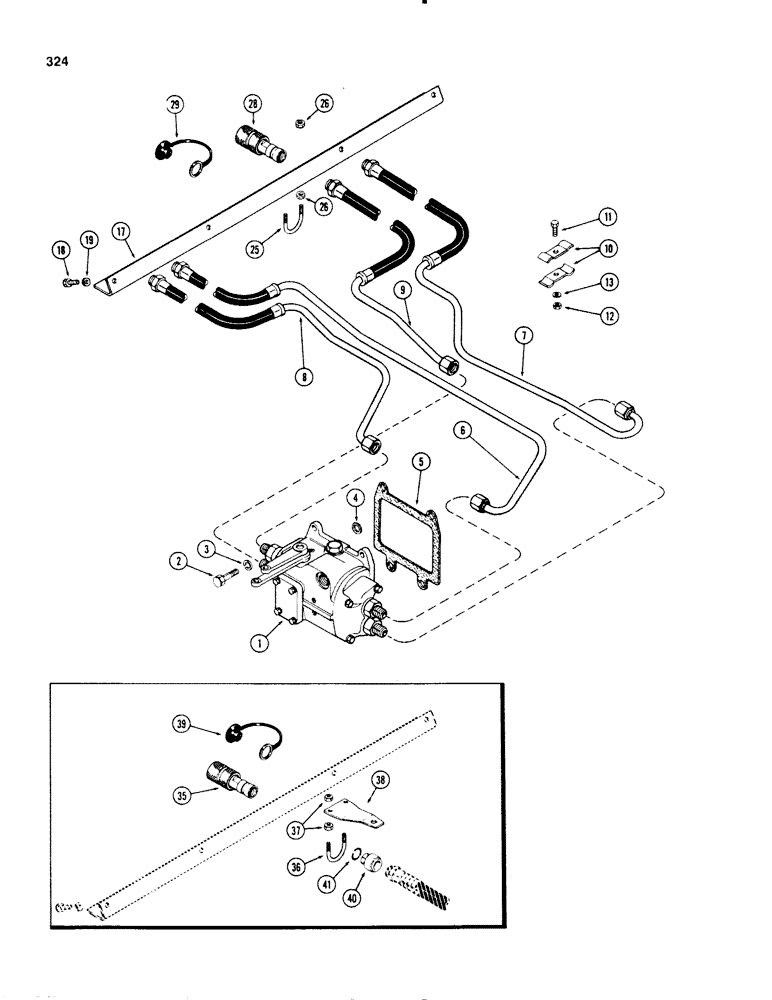

Схема запчастей Case IH 1270 - (324) - RIGHT HAND REMOTE VALVE TUBES AND COUPLINGS, PRESSURE TYPE COUPLING , FIRST USED P.I.N. 8770001 (08) - HYDRAULICS
5
12
10
38
37
8
36
25
18
26
11
9
13
40
2
39
7
3
26
35
4
6
19
41
28
29
1
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - R.H. remote control (See Figure 330)

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - nylon, valve port

1шт.

5

A34138

GASKET

- valve to trans. housing

1шт.

6

A66797

HYD TUBE

TUBE - upper front, Serial Range: valve-coupling

1шт.

7

A66795

TUBE

- lower front, Serial Range: valve-coupling

1шт.

8

A66798

TUBE

- upper rear, Serial Range: valve-coupling

1шт.

9

A66792

HOSE

TUBE - lower rear, Serial Range: valve-coupling

1шт.

10

A63323

CLAMP

- remote tubes

4шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16")

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

17

A66794

BRACKET

- mounting, remote coupling

1шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER - lock (5/16")

4шт.

25

A66788

CLAMP

- remote coupling

4шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

28

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - female section (See Figure 400) (Replaces A141156)

4шт.

29

A137136

PLUG

- dust, remote coupling (Replaces A135004)

4шт.

34

A67200

KIT

- conversion (pressure coupling) (Replaces A135675), Includes Ref: 35-41

1шт.

35

A147741

COUPLING, BREAK AWAY

COUPLING - See Figure 400, (Replaces A141156), pressure conversion kit

1шт.

36

A66788

CLAMP

- coupling, pressure conversion kit

1шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Pressure coupling conversion kit

4шт.

38

A135764

BRACKET - coupling clamp, pressure conversion kit

1шт.

39

A137136

PLUG

- dust (Replaces A135004), pressure coupling conversion kit

1шт.

A135687

ADAPTER

KIT - adapter, coupling to trac. hose, pressure conversion kit, Includes Ref: 40, 41

1шт.

40

NSS

NOT SOLD SEPARAT

ADAPTER - (7/8"-14 x 7/8"-18), pressure coupling conversion kit

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (3/4 x 15/16 x 3/32"), pressure coupling conversion kit

1шт.
