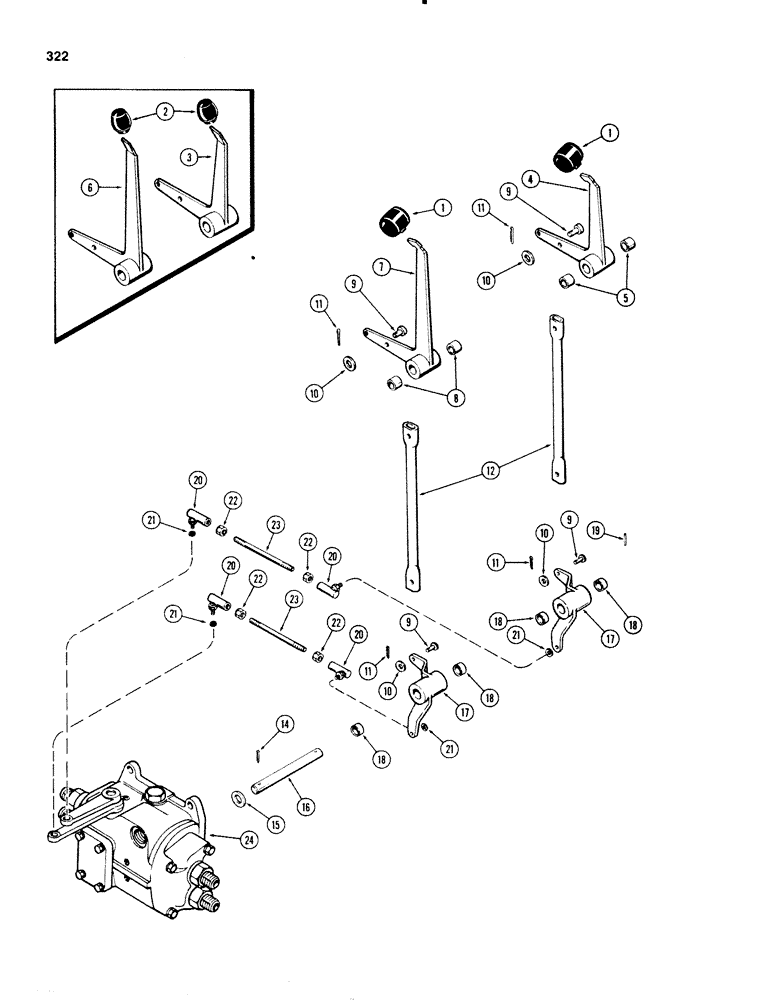

Запчасти Case IH 1270 (322) - RIGHT HAND REMOTE VALVE CONTROLS (08) - HYDRAULICS

1

A137806

KNOB

- remote lever (rubber) (Replaces A65699)

2шт.

2

A65699

KNOB

- remote lever (plastic) (Order A137806)

2шт.

3

A66554

LEVER

ASSEMBLY - inner (w/threaded top) (Order Ref. 1 & 4)

1шт.

4

A139343

LEVER

ASSEMBLY - inner, Includes Ref: 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote inner lever

2шт.

6

A66553

LEVER

ASSEMBLY - outer (w/threaded top) (Order Ref. 1 & 7)

1шт.

7

A139344

LEVER

ASSEMBLY - outer, Includes Ref: 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, (Upper link to hand levers) 5/16" x .940"

4шт.

10

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

12

A61659

ROD

LINK - remote levers, upper

2шт.

14

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

15

195-41

WASHER,5/8"

1шт.

16

A59529

SHAFT

- remote bellcrank lever

1шт.

17

A63544

LEVER

ASSEMBLY - remote bellcrank, Includes Ref: 18

2шт.

18

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote bellcrank lever

2шт.

19

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Shaft to mtg. hub 1/8" x 1", Slotted

1шт.

20

A145066

JOINT

- ball, remote lever, lower

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

23

A63548

ROD

- remote lever, lower

2шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - R.H. remote, See Figure: 330

1шт.
