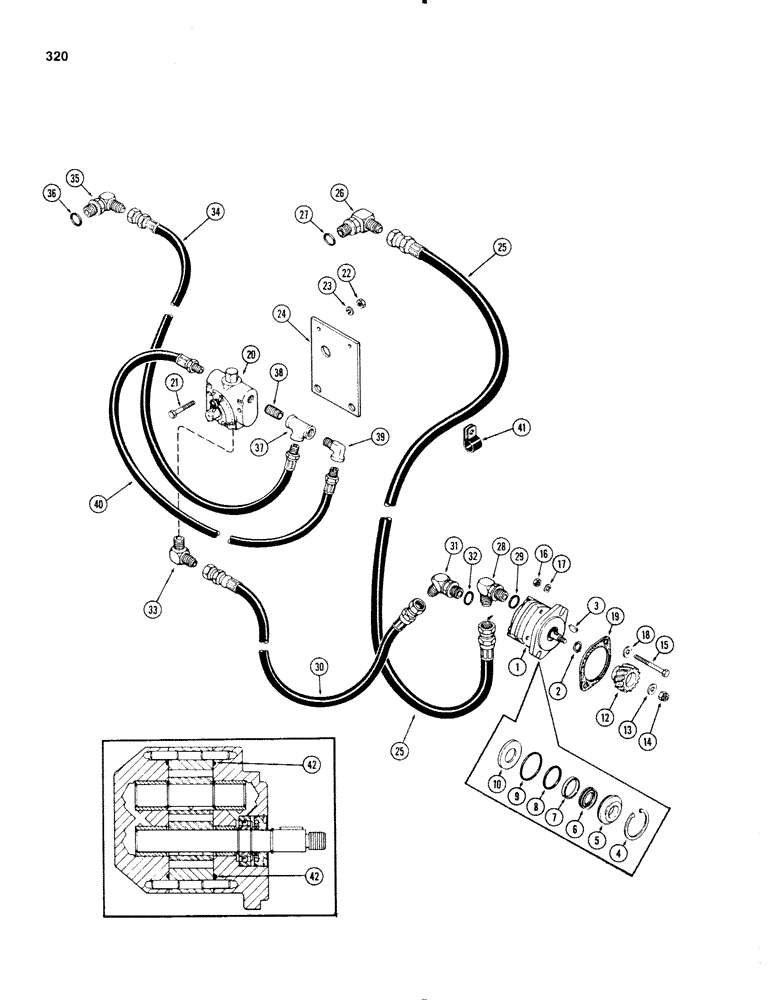

Запчасти Case IH 1270 (320) - AUXILIARY HYDRAULIC PUMP KIT (08) - HYDRAULICS

A67196

KIT - auxiliary pump, 6 GPM (Mach. Item), Includes Ref: 1-41

1шт.

A67197

KIT - auxiliary pump, 11 GPM (Mach. Item), Includes Ref: 1-41

1шт.

1

A139692

PUMP

ASSEMBLY - 6 GPM, Includes Ref: 2-10

1шт.

1

A139693

PUMP

ASSEMBLY - 11 GPM, Includes Ref: 2-10

1шт.

2

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

A45378

SEAL

KIT - pump seal, Includes Ref: 4-9

1шт.

4

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

5

A45377

SEAL

RETAINER - seal

1шт.

6

A45374

RING

- quad (15/16 x 1-3/16 x 9/64")

1шт.

7

A45376

COLLAR

1шт.

8

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- (15/16 x 1-1/8 x 3/32")

1шт.

9

A59066

O-RING,1.239" ID x 1.379" OD

- (1-1/4 x 1-3/8 x 1/16")

1шт.

10

A45375

WASHER

- back-up

1шт.

12

L43703

GEAR

- drive, pump shaft

1шт.

13

A64303

WASHER

- thrust (5/8 x 1-1/16 x 1/16")

1шт.

14

131-58

LOCK NUT,1/2"-20, G5

NUT - lock, 1/2" N.F. hex

1шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex

2шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

195-525

WASHER,3/8", SAE

- 3/8 x 1-1/8 x 1/16"

2шт.

19

A58617

GASKET

-, Serial Range: pump-block

1шт.

20

A139696

VALVE

ASSEMBLY - variable flow

1шт.

21

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

A139609

BRACKET

- valve

1шт.

25

A141004

HYDRAULIC HOSE,0.75" ID x 64.00", SAE 100R1

HOSE 0.75" ID x 64.00", SAE 100R - Inlet, Filter to Pump

1шт.

26

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90deg., 3/4" tube x 1"-12, Includes Ref: 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (15/16 x 1-5/32 x 1/8")

1шт.

28

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 3/4" tube x 1-1/16"-12, Incl. Ref: 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-11/16 x 15/64")

1шт.

30

36492

HOSE

- outlet, pump to valve (1/2" I.D. x 44")

1шт.

31

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 45 deg., 5/8" tube x 1-1/16"-12, Incl. Ref: 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-11/16 x 15/64")

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90deg., 5/8" tube x 7/8"-14

1шт.

34

A141010

HOSE

- return, valve filter (1/2" I.D. x 63")

1шт.

35

A63536

FITTING

ELBOW - 90deg., 7/8" N.F. x 1-1/16" N.F., Includes Ref: 36

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-11/16 x 15/64")

1шт.

37

221-1424

TEE,Pipe, 1/2" NPT

- valve, 1/2" P.T.

1шт.

38

218-1185

NIPPLE - pipe, 1/2" P.T. x 1-1/8" long)

1шт.

39

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- valve, 1/2" P.T.

1шт.

40

A141012

HOSE

- by-pass (3/8" I.D. x 22")

1шт.

41

T50104

CLAMP

- hose

1шт.

42

A47669

O-RING,2.989" ID x 3.129" OD

- hydraulic pump body (2-63/64 x 3-1/8 x 1/32")

2шт.
