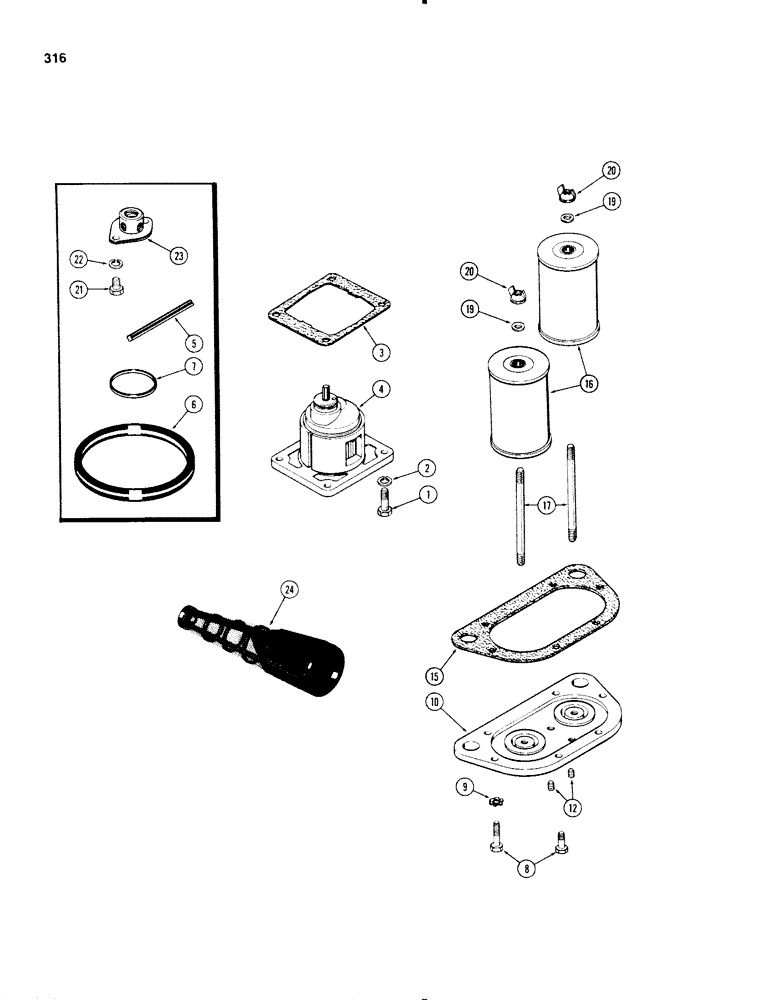

Запчасти Case IH 1270 (316) - HYDRAULIC CHARGING PUMP AND FILTERS (08) - HYDRAULICS

1

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.) pump to torque tube

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

A63339

GASKET

- oil pump to torque tube

1шт.

4

REF

INSTRUCTION

PUMP ASSEMBLY - charging, hyd. oil, See Figure: 318

1шт.

5

A63336

OIL SEAL

- oil pump to torque tube

2шт.

6

A63337

OIL SEAL

- oil pump to torque tube

1шт.

7

A59001

O-RING,1.612" ID x 1.818" OD

- oil pump to torque tube

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Manifold to torque tube Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- (3/8 x 2-1/8" N.C. hex.) manifold to torque tube

2шт.

9

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock (3/8" int. int./ext. tooth)

6шт.

10

A63340

MANIFOLD

- oil filter

1шт.

12

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

- pipe (1/4" square head) (in manifold)

2шт.

A44012

HYDRAULIC OIL FILTER

ELEMENT KIT - hyd. oil filter, Includes Ref: 15, 16

1шт.

15

A63341

GASKET

- oil filter manifild

1шт.

16

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Order A44012 kit)

2шт.

17

A63342

STUD

- oil filter element

2шт.

19

95-8

WASHER,1/2"

plain 1/2"

2шт.

20

129-400

WING NUT,1/2"-13

NUT - wing (1/2")

2шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Regulator to torque tube Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A63343

REGULATOR

- filter pressure

1шт.

24

A139052

FILTER

- inlet, enclosed (Replaces A64279)

1шт.
