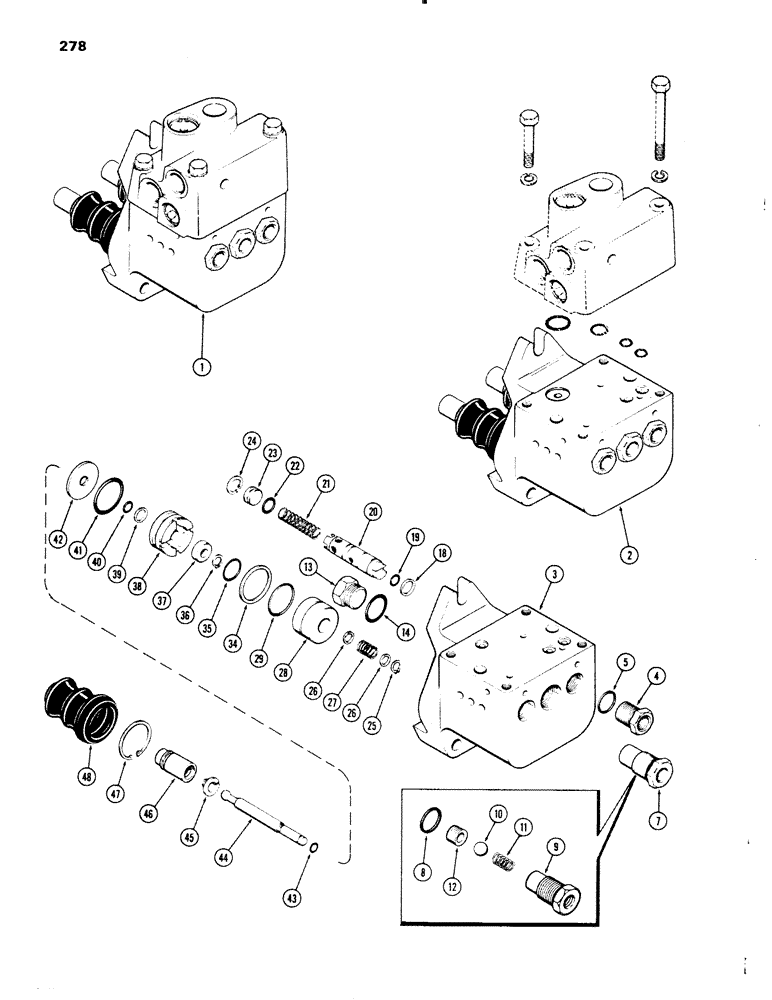

Запчасти Case IH 1270 (278) - G34993 BRAKE VALVE ASSEMBLY, USED WITHOUT DIFFERENTIAL LOCK, USED PRIOR TO P.I.N. 8803261 (07) - BRAKES

1

G34993

VALVE

ASSEMBLY - (Order (101003), See Figure: 272, Includes Ref: 2-48

1шт.

2

G100061

VALVE

ASSEMBLY - master cylinder, See Figure: 3-48

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - (Order G100061)

1шт.

4

A59948

PLUG

- reducer

2шт.

7

A61508

VALVE

ASSEMBLY - sump pressure relief, Includes Ref: 8-12

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(3/4 x 15/16 x 3/32")

1шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - (Order A61508)

1шт.

10

211-12

BALL,7/16 Dia

- (7/16" dia.)

1шт.

11

A61510

SPRING

- (21/32" free length)

1шт.

12

A61511

SEAT

- relief valve

1шт.

13

86512512

PLUG,7/8" - 14 ORB

Assy, Valve body, Incl. Ref 14 Hex Hd, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (3/4 x 15/16 x 3/32")

1шт.

18

A59951

RING

- sealing, boost spool

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Boost spool

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

20

G100482

SPOOL

- boost (Replaces A61104 and G100041)

2шт.

21

A59950

SPRING

- boost spool (1-3/4" free length)

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- (7/16 x 5/8 x 3/32")

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

23

A64911

PLUG

- boost spool

2шт.

24

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , plug 0.625", Int, #62

2шт.

25

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston spring #31, Ext

2шт.

26

A65936

COLLAR

RETAINERS - piston spring

4шт.

27

A59957

SPRING

- piston (21/32" free length)

2шт.

28

A59953

PISTON

- boost

2шт.

29

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

- piston (1-3/16 x 1-5/16 x 1/16")

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

34

A59955

SEALING RING

RING - seal, piston

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

35

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- piston (3/4 x 7/8 x 1/16")

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

36

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston seal #31, Ext

2шт.

37

A64912

WASHER

- piston seal

2шт.

38

A62072

SEAT

STOP - piston

2шт.

39

A59961

RING

- back-up, piston stop

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

40

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- piston stop (3/8 x 9/16 x 3/32")

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

41

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- piston stop (1-1/4 x 1-1/2 x 1/8")

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

42

A60646

SPACER

RETAINER - piston stop

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- piston rod (3/16 x 5/16 x 1/16")

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

44

A64913

ROD

- piston

2шт.

45

A60647

COLLAR

RETAINER - nylon, piston rod connector

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

46

A63313

FITTING

CONNECTOR - piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston stop 1.50", Int, #150

2шт.

48

A59966

BOOT

- piston rod

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.

A43710

KIT

- repair, master cyl., Includes: Ref. 5, 8, 18, 19, 22, 29 - 35, 39 - 41, 43, 45 and 48

2шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

2шт.

Part of Valve Assembly Repair Kit P/N A43710

1шт.
