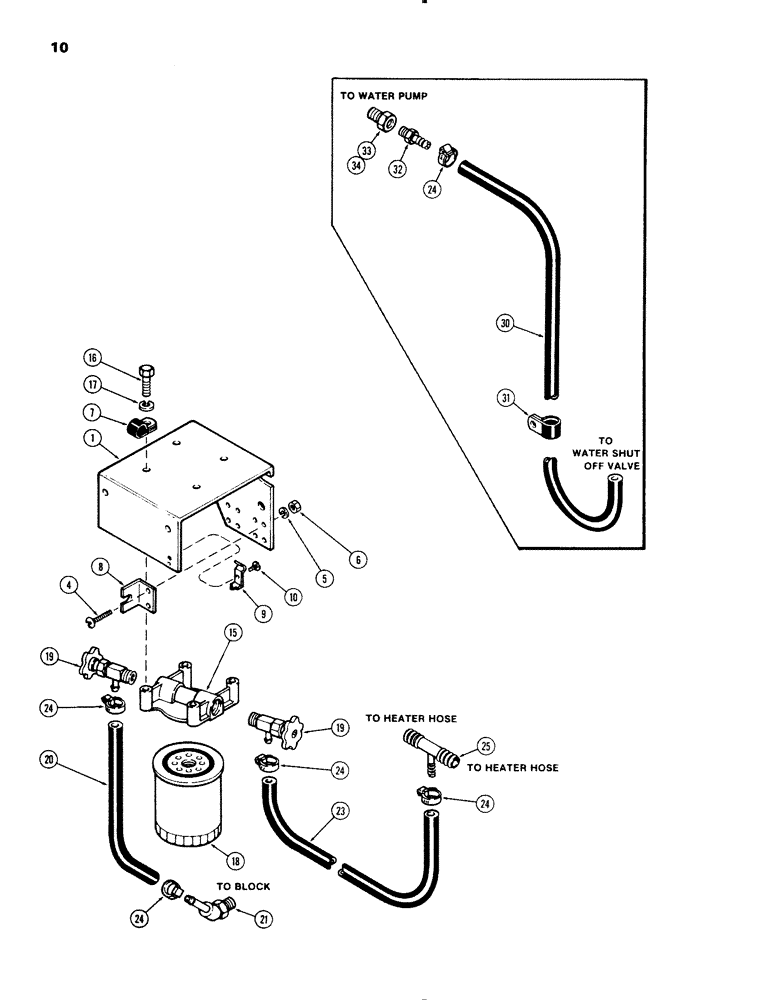

Запчасти Case IH 1270 (010) - WATER FILTER KITS (02) - ENGINE

A46453

KIT

- support, water filter, Includes Ref: 1-10

1шт.

1

A160611

BRACKET

SUPPORT - throttle cable and filter head

1шт.

A160612

SPACER

- clamp, throttle cable (Not used this application)

1шт.

A75815

CLAMP

- throttle cable (Not used this application)

1шт.

4

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

- #10-24 x 1-1/4" slotted pan head

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

2шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - fuel tube to support

1шт.

8

A160620

BRACKET

- throttle cable

1шт.

9

B51765

CLIP

- stop cable, fuel pump

1шт.

10

172-274

SCREW - #8-24 x 1" round pump

1шт.

A46400

KIT

- water filter and conditioner, Includes Ref: 15-25

1шт.

15

A152821

HEAD

- filter and valve

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex (Grade 5)

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

A151931

FILTER

CARTRIDGE - water filter

1шт.

19

A154051

COCK, DRAIN

VALVE - water shut off

2шт.

20

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Shut off Valve to Block

1шт.

21

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 1/4" PT x 3/8" hose, 45 degree

1шт.

221-1619

FITTING

CONNECTOR - branch, 1/4 x 1/4 x 1/4" (in block) (Not used this application)

1шт.

23

A154053

HEATER HOSE,0.38" ID x 11.20", SAE 20R3

- Shut off valve to heater hose 0.38" ID x 11.20", SAE 20R3

1шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

6шт.

25

A154014

CONNECTOR, ELEC

CONNECTOR - branch, heater hose split

1шт.

30

A154065

HOSE,0.38" ID x 36.00", SAE 20R3 PER SAE J20

0.38" ID x 36.00", SAE 20R3 - Filter to Water Pump, For tractor Without Heater

1шт.

31

NLS

NO LONGER SERVICED

CLIP - hose, for tractor without heater

1шт.

32

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector, Barb stem (To water pump), For tractor without heater 3/8" Hose X 1/4" NPTF Beaded

1шт.

33

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer, 1/2 x 1/4" (to water pump), for tractor without heater

1шт.

34

221-1091

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4 x 1/4" (to water pump), for tractor without heater

1шт.
