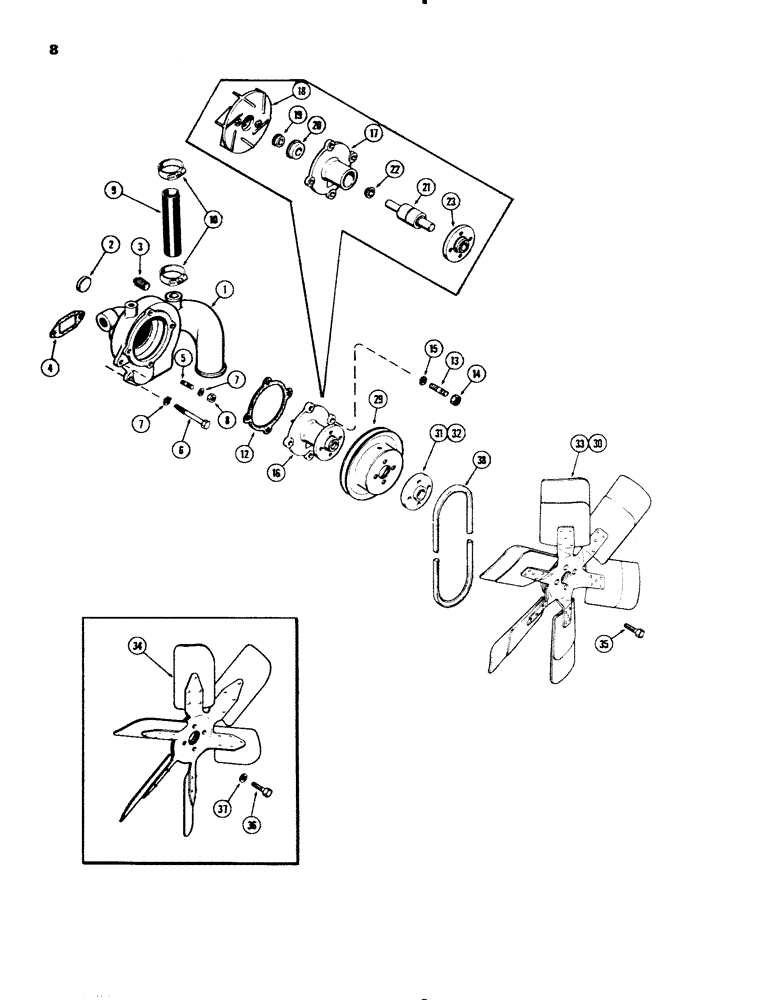

Запчасти Case IH 1270 (008) - WATER PUMP AND FAN, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A138498

HOUSING

BODY ASSEMBLY - (w/1/2" P.T. heater hose opening), Includes Ref: 2

1шт.

1

A59220

BODY

BODY ASSEMBLY - (w/3/4" P.T. heater hose opening)(Order A138498), Includes Ref: 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup (1-3/8" dia.)

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" P.T. sq. hd. (for A138498)

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" P.T. sq. hd. (for A59220)

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

G102128

BOLT

STUD - body to block (3/8" N.C. x 1-7/16")(Replaces G11204)

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

2шт.

9

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water pump to water manifold

1шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

12

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

13

A62234

STUD

STUD - pump to body (3/8" N.C. x 1-5/16")

4шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - jam, 3/8" N.C. hex.

4шт.

15

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

16

A62976

PUMP

PUMP ASSEMBLY - water (w/plastic impeller)(Order A152154)

1шт.

16

A152154

PUMP

PUMP ASSEMBLY - water (w/cast iron impeller), Includes Ref: 17-23

1шт.

16

1998701C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

16

A48329

CORE-WATER PUMP

Return Number, Water Pump

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

18

NSS

NOT SOLD SEPARAT

IMPELLER - water (plastic)(Order A152126)

1шт.

18

A152126

IMPELLER

IMPELLER - water (cast iron)

1шт.

19

A34000

SEAL

SEAL - impeller

1шт.

20

A142499

SEAL

SEAL - pump shaft

1шт.

21

A59056

BEARING ASSY

SHAFT ASSEMBLY - w/bearing, Includes Ref: 22

1шт.

22

Q829325

BUSHING

- water

1шт.

23

A58742

HUB

HUB - fan and pulley

1шт.

29

A58837

PULLEY

PULLEY - belt, fan and pump drive

1шт.

30

A145323

FAN

FAN - 22" (with A147010 spacer replaces A64705 and A67045)

1шт.

31

A147010

SPACER

SPACER - fan, 1-11/16" wide (Use with A145323 fan)

1шт.

32

A62465

BUSHING

SPACER - fan (1-1/4" wide)(Used with A67045 fan)

1шт.

33

A67045

FAN

FAN - 22" (Replaces A64705)(Order A145323 and A147010)

1шт.

34

A64705

FAN

FAN - 22" (Order A145323 and A147010)

1шт.

35

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex. (for A67045 fan)

4шт.

36

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, (for A64705 fan) Hex, 3/8"-16 x 2 1/4", G5

4шт.

37

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

38

A65143

V-BELT,0.69" W x 58.25" L

Drive, Fan and Pump

1шт.
