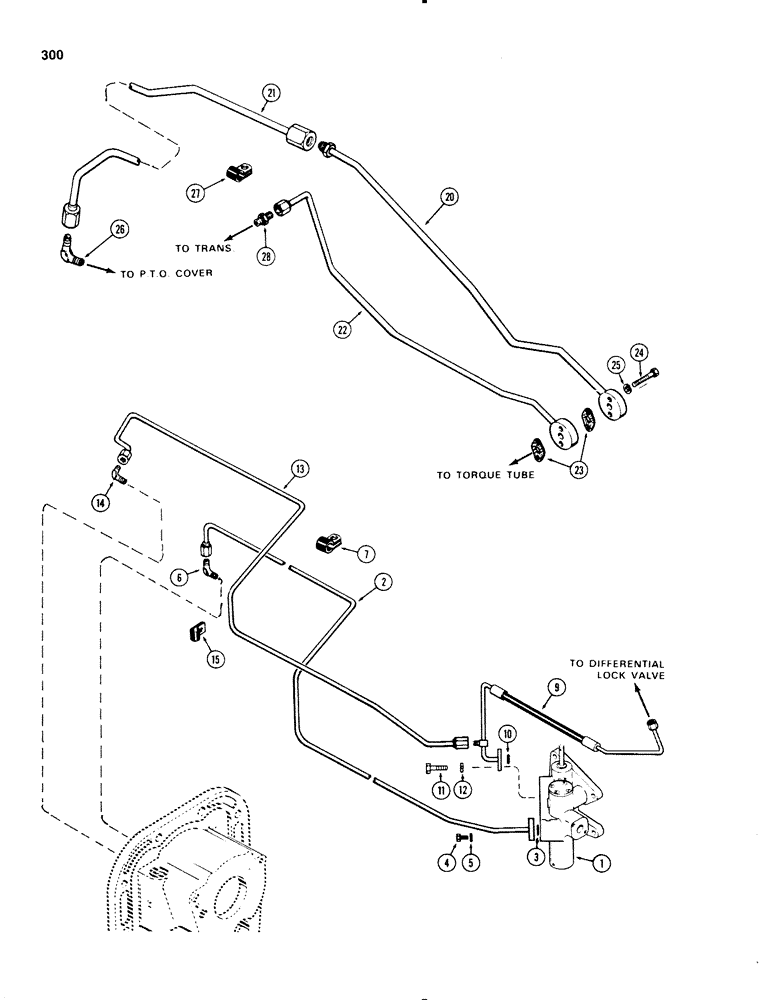

Запчасти Case IH 1270 (300) - P.T.O. HYDRAULIC LINES, FIRST USED P.I.N. 8811146 (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - P.T.O. & clutch regulator, See Figure 288

1шт.

2

A135713

TUBE

- valve to P.T.O. clutch

1шт.

3

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 11/16 x 1/2 x 3/32"

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

218-1515

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF, LG

- 1/4" P.T. x 9/16" N.F., 90deg.

1шт.

7

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube

1шт.

9

A147191

TUBE

- regulator valve to diff. valve (Replaces A135710)

1шт.

10

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 x 9/16 x 3/32"

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

A135711

TUBE

- valve to P.T.O. brake

1шт.

14

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 1/8" P.T. x 7/16" N.F., 90deg.

1шт.

15

A20541

CLIP

CLAMP - tube

1шт.

20

A66142

TUBE

- P.T.O. lube, front

1шт.

21

A141695

TUBE

- P.T.O. lube, rear

1шт.

22

A66144

TUBE

- (C1) lube

1шт.

23

A66143

GASKET

- lube tubes

2шт.

24

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 1/4" P.T. x 1/2", 90deg.

1шт.

27

49836

CLAMP

- tube

1шт.

28

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - 1/4" P.T. x 9/16" N.C., straight

1шт.
