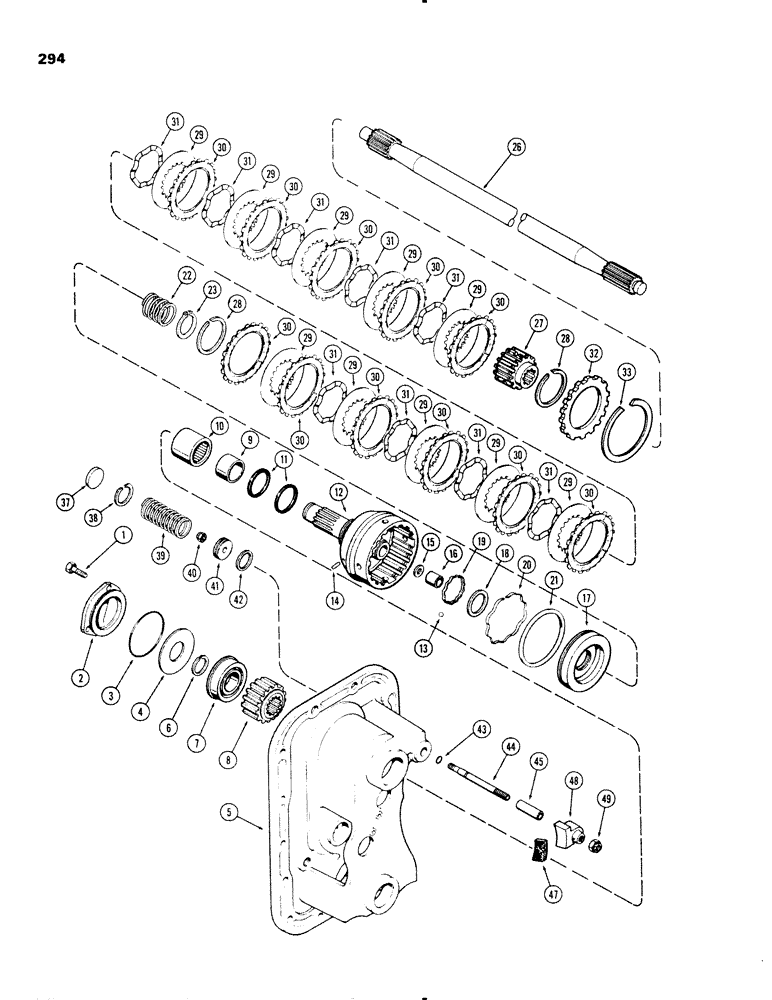

Запчасти Case IH 1270 (294) - P.T.O. CLUTCH AND BRAKE, USED PRIOR TO P.I.N. 8811146 (06) - POWER TRAIN

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

2

A63272

COVER

- lube oil inlet

1шт.

3

A63274

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

- inlet cover (3-3/4 x 3-7/8 x 5/64")

1шт.

4

A63273

GUARD

SHIELD - oil

1шт.

5

REF

INSTRUCTION

HOUSING - P.T.O., See Figure: 290

1шт.

6

A26946

RING

- snap, bearing retaining

1шт.

7

A63271

BALL BEARING,1.5748" ID x 3.799" OD x 0.9055"

BEARING - ball, carrier (with snap ring)

1шт.

8

A63270

GEAR

- driver

1шт.

9

A63268

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.26"

SLEEVE - needle bearing

1шт.

10

A63269

NEEDLE BEARING,2.0625" ID x 2.5317" OD x 1"

BEARING - needle, carrier

1шт.

11

A63267

SEAL

RING - oil control, carrier

2шт.

12

A138678

CARRIER

ASSEMBLY - piston & clutch (Replaces A66488), Includes Ref: 13-16

1шт.

13

211-6

BALL,7/32" Dia

1шт.

14

138-2059

PIN,1/16" x 3/4", Coiled

1шт.

15

A63265

WASHER

- thrust, input shaft

1шт.

16

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

- input shaft

1шт.

17

A63257

PISTON

- P.T.O. clutch

1шт.

18

A63258

SEAL

- piston, internal

1шт.

19

A63259

SPRING

- piston seal, internal

1шт.

20

A59012

SPRING

- piston seal, external

1шт.

21

A59011

RING

SEAL - piston, external

1шт.

22

A63260

SPRING

- piston return (1-19/32" I.D. x 1-3/4" long)

1шт.

23

T37909

SNAP RING,#150, Ext

Ring, Snap, , return spring #150, Ext

1шт.

26

A66477

SHAFT

- power input

1шт.

27

A66490

HUB

- clutch carrier

1шт.

28

A32442

SNAP RING,#300, 2.830, Ext

RING - snap, external

2шт.

29

A66365

PLATE

- P.T.O. clutch driven

1шт.

30

A66364

PLATE

- friction, P.T.O. clutch drive

12шт.

31

A59013

SPRING

- separator, clutch plate

10шт.

32

A63261

PLATE

- back-up, clutch

1шт.

33

A63262

RING

SNAP RING - back-up plate

1шт.

37

41-1628

PLUG,Cup, 1 3/4", Stainless

- brake rod opening (1-3/4" cup type)

1шт.

38

A63279

RING, SNAP

SNAP RING - internal

1шт.

39

A64976

SPRING

- brake actuating (1-3/4" O.D. x 4-7/8" free length)

1шт.

40

131-556

NUT

- (3/8" hex. Flexloc, heavy duty, thin)

1шт.

41

A58994

PISTON

- brake cylinder

1шт.

42

A58989

RING

- piston

1шт.

43

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- actuating rod (3/8 x 1/2 x 1/16")

1шт.

44

A63276

ROD

- brake actuating

1шт.

45

A63277

BUSHING

GUIDE - P.T.O. brake shoe support

1шт.

48

A65818

SHOE

ASSEMBLY - P.T.O. brake

1шт.

49

131-558

NUT

- (1/2" hex. flexlock, heavy duty, thin)

1шт.
