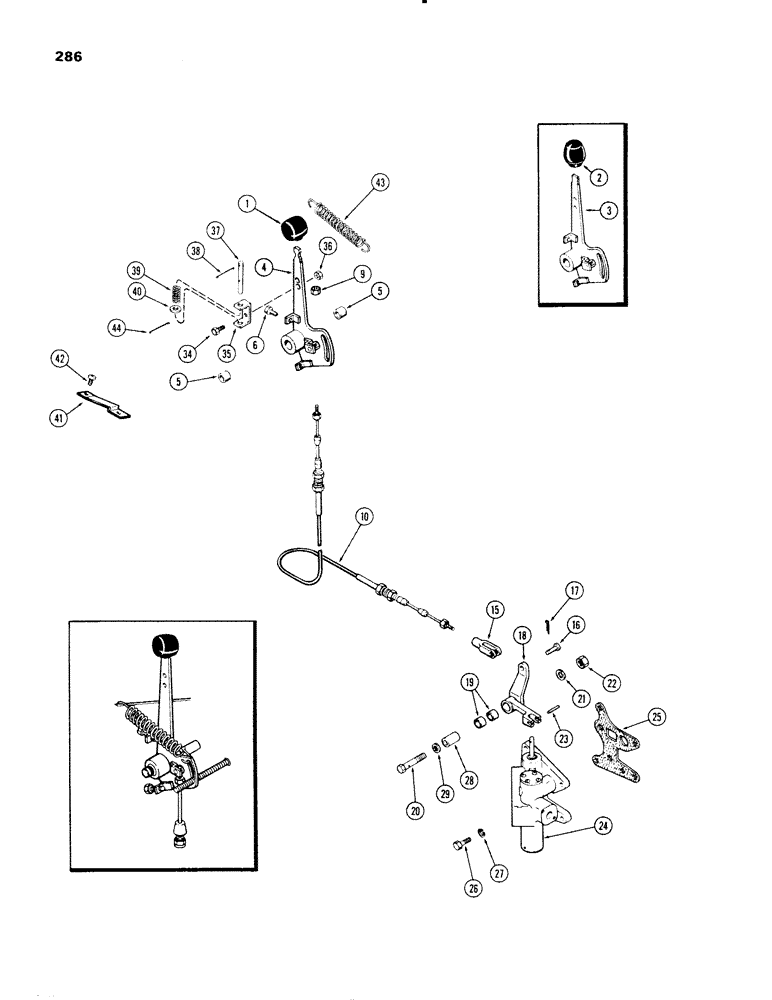

Запчасти Case IH 1270 (286) - P.T.O. CONTROL LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- rubber, lever (Replaces A65699)

1шт.

2

A65699

KNOB

- plastic, lever (Order A137806)

1шт.

3

A65574

LEVER

ASSEMBLY - hand (w/threaded top) (Order Ref. 1 & 4)

1шт.

4

A137817

LEVER

ASSEMBLY - hand, Includes Ref: 5, 6

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- P.T.O. hand lever

2шт.

6

A59463

BOLT

- (1/4 x 5/8" N.C. nylon insert), lever stop

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex. (#10 N.F. Keps)

1шт.

10

A63953

CABLE

- P.T.O. control

1шт.

15

A63015

YOKE

- P.T.O. cable

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

17

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

18

A63031

DIPPER

BELLCRANK ASSEMBLY - P.T.O., Includes Ref: 19

1шт.

19

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- bellcrank

2шт.

20

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- bellcrank (3/8 x 2-1/2" N.C. hex.)

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - P.T.O. & clutch regulator, See Figure 288

1шт.

25

A66113

GASKET

- regulator valve

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.), valve to trans. case

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

A65345

SHAFT

- P.T.O. bellcrank

1шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- (5/16" plain)

1шт.

34

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

35

A65478

BRACKET

- P.T.O. hand lever

1шт.

36

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

37

A65479

PIN

- P.T.O. hand lever

1шт.

38

138-321

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

39

A137733

SPRING

- P.T.O. pin (Repl. A22712)

1шт.

40

195-529

WASHER,7/16", SAE

- (15/32 x 59/64")

1шт.

41

A66387

LOCK

- P.T.O. hand lever

1шт.

42

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10-32 truss hd. fillister, Type A

2шт.

43

A35789

SPRING

- P.T.O. return

1шт.

44

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.
