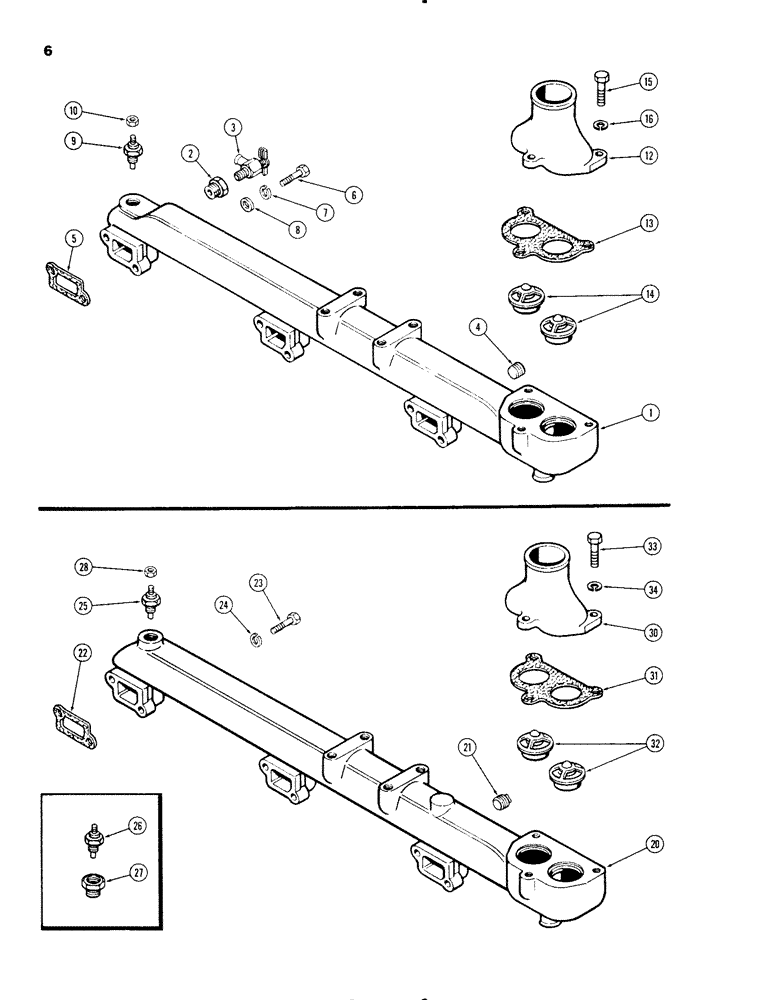

Запчасти Case IH 1270 (006) - WATER MANIFOLD AND THERMOSTAT, (451 BDT) DIESEL ENGINE, ALUMINUM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A153152
MANIFOLD
KIT - water manifold (Replaces A58909 and A44088), Includes Ref: 1, 2
1шт.
1
NSS
NOT SOLD SEPARAT
MANIFOLD - (Order A153152)
1шт.
2
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING - reducer, 1/2 x 3/8" P.T.
1шт.
3
A16764
VALVE
- water manifold shutoff
1шт.
4
221-844
PLUG,Hex Soc, 1/2"-14
- pipe, 1/2 P.T. hex. socket
1шт.
5
A58637
MANIFOLD GASKET
- water manifold
3шт.
6
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
6шт.
7
92-6
LOCK WASHER,3/8"
6шт.
8
195-25
WASHER,3/8"
- 13/32 x 13/16 x 1/16"
6шт.
9
A66733
TRANSMITTER
UNIT - sender, engine temp. (1/2" P.T.)
1шт.
10
193-1000
NUT,Keps, w/LW,#10-32
- Keps, #10-32 hex
1шт.
12
A58638
HOUSING
- thermostat
1шт.
13
A58639
GASKET
- thermostat housing
1шт.
14
A57641
THERMOSTAT
2шт.
15
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
3шт.
16
92-6
LOCK WASHER,3/8"
3шт.
20
A58909
MANIFOLD
- water (Order A153152), Cast Iron
1шт.
21
221-845
PLUG,Hex Soc, 3/4"-14
- pipe, 3/4" P.T. hex. socket, Cast Iron
2шт.
22
A58637
MANIFOLD GASKET
- water manifold, Cast Iron
3шт.
23
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex., Cast Iron
3шт.
23
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
Cast Iron Hex, 3/8"-16 x 2", G5
3шт.
24
92-6
LOCK WASHER,3/8"
cast iron 3/8"
6шт.
25
A66733
TRANSMITTER
UNIT - sender, engine temp.(1/2" P.T.), Cast Iron
1шт.
26
A61787
TRANSMITTER
UNIT - sender, engine temperature (3/8" P.T.)(Order A66733), Cast Iron
1шт.
27
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING - reducer, 1/2 to 3/8" P.T., Cast Iron
1шт.
28
193-1000
NUT,Keps, w/LW,#10-32
- #10-32 hex. Keps, Cast Iron
1шт.
30
A58638
HOUSING
- thermostat, Cast Iron
1шт.
31
A58639
GASKET
- thermostat housing, Cast Iron
1шт.
32
A57641
THERMOSTAT
Cast Iron
2шт.
33
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Cast Iron Hex, 3/8"-16 x 1 1/8", G5, Full Thd
3шт.
34
92-6
LOCK WASHER,3/8"
cast iron 3/8"
3шт.
Выбрано товаров: 31
