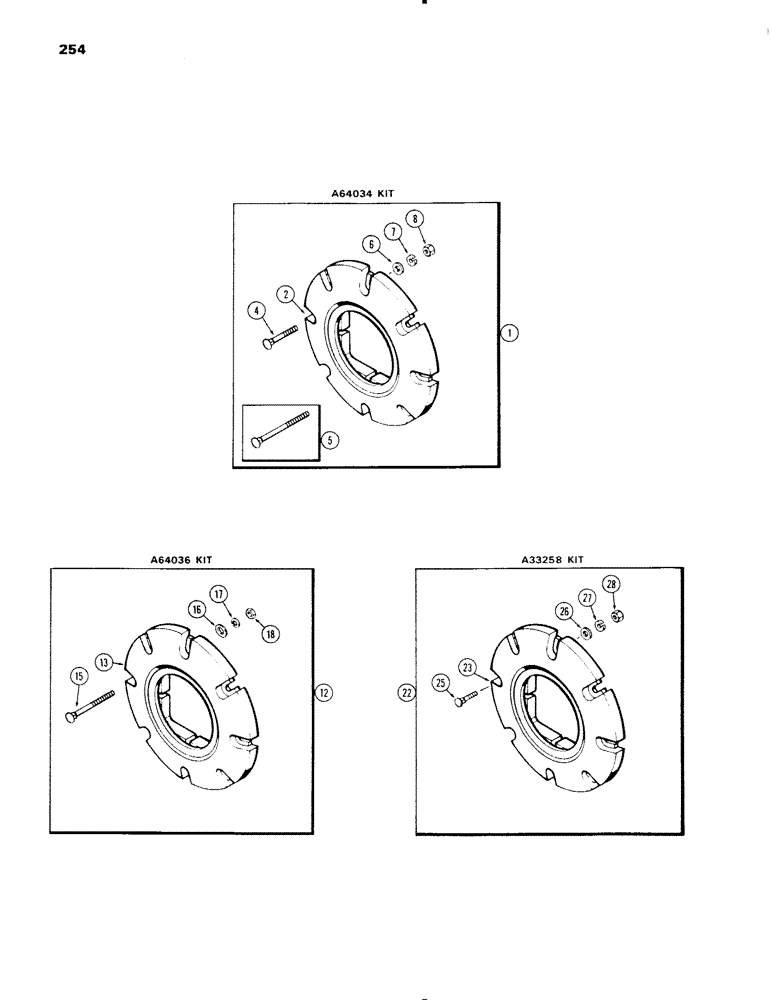

Запчасти Case IH 1270 (254) - REAR WHEEL WEIGHT KITS, STARTER SET FOR 38 INCH OR 42 INCH CAST WHEEL (06) - POWER TRAIN

1

A64034

KIT - weight (Mach. Item), Includes Ref: 2-8

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lb. (Order A64034)

2шт.

4

11-1092

BOLT - w/weight dished out (5/8 x 5-3/4" rd. hd. sq. nk.)

8шт.

5

433-10112

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5

BOLT - w/weight dished in (5/8 x 7" rd. hd. sq. nk.)

8шт.

6

95-10

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64")

8шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

25-1010

NUT,5/8"-11, G5

8шт.

12

A64036

KIT - weight (Mach. Item), starter set for 32" or 34" cast wheel, Includes Ref: 13-18

1шт.

13

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lb. (Order A64036), starter set for 32" or 34" cast wheel

2шт.

15

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT - w/weight dished out (5/8 x 6" rd. hd. sq. nk.), starter set for 32" or 34" cast wheel

8шт.

15

111-624

CARRIAGE BOLT,Short NK, 5/8"-11 x 6 1/2", G2

BOLT - w/weight dished in (5/8 x 6-1/2" rd. hd. sq. nk.), starter set for 32" or 34" cast wheel

8шт.

16

95-10

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64"), starter set for 32" or 34" cast wheel

8шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Starter set for 32" or 34" cast wheel 5/8"

8шт.

18

25-1010

NUT,5/8"-11, G5

Starter set for 32' or 34" cast wheel 5/8"-11, G5

8шт.

22

A33258

BOLT

KIT - weight (Mach. Item), add on set 32", 34", 38" or 42" wheel, Includes Ref: 23-28

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lb. (Order A33258), add on set 32", 34", 38" or 42" wheel

2шт.

25

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - (5/8 x 4" rd. hd. sq. nk.), add on set 32", 34", 38", or 42" wheel

8шт.

26

95-10

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64"), add on set 32", 34", 38", or 42" wheel

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Add on set 32", 34", 38" or 42" wheel 5/8"

8шт.

28

25-1010

NUT,5/8"-11, G5

Add on set 32", 34", 38" or 42" wheel 5/8"-11, G5

8шт.
