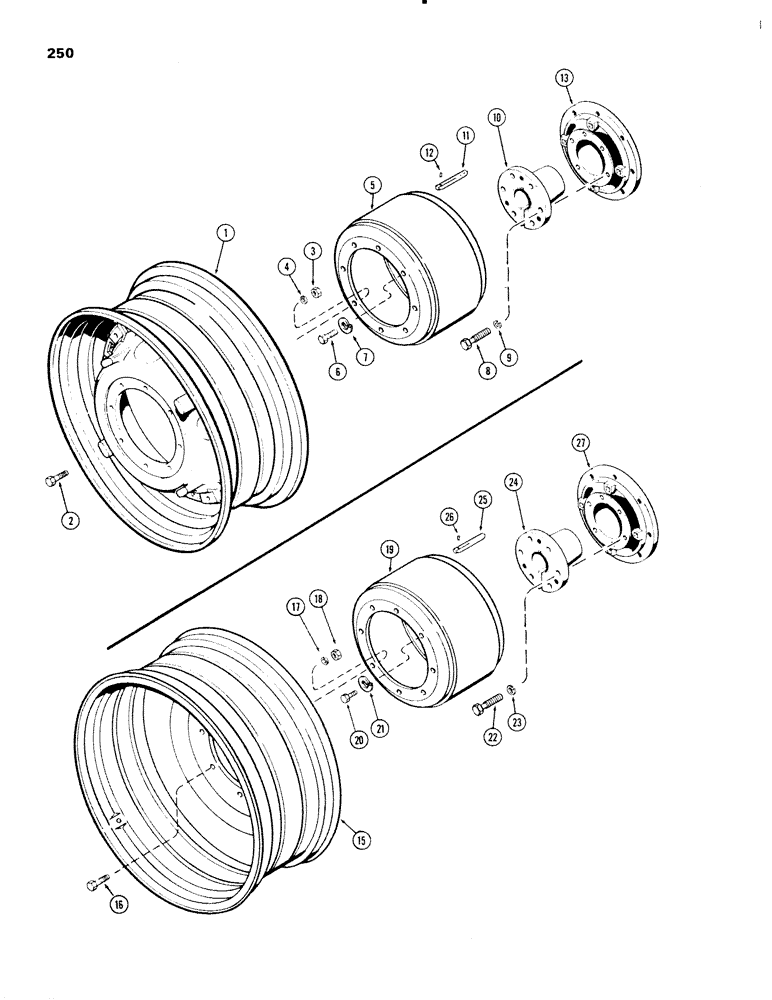

Запчасти Case IH 1270 (250) - OUTER DUAL WHEEL SPACER, CAST WHEEL WITH 3-7/8 INCH DIAMETER AXLE (06) - POWER TRAIN

1

REF

INSTRUCTION

WHEEL ASSEMBLY - w/38" rim, See Figure: 242

2шт.

1

REF

INSTRUCTION

WHEEL ASSEMBLY - w/42" rim, See Figure: 248

2шт.

2

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.) (wheel to spacer)

16шт.

3

A64303

WASHER

- hardened (5/8 x 1-1/16 x 1/16")

16шт.

4

129-563

NUT,5/8"-11, G8

- hex. (5/8" N.C.)

16шт.

5

A145968

SPACER

- dual wheel (Replaces A65475)

2шт.

6

130-1028

BOLT - hex. (5/8 x 1-3/4" N.C.)

16шт.

7

A147095

WASHER

- hardened wide bearing split (11/16 x 1-5/16 x 3/16")

16шт.

8

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4 x 4-1/2" N.C.)

12шт.

9

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

10

A63805

BUSHING

- hub (with 3/4" wide keyway)

2шт.

11

A63219

KEY

- axle (3/4" wide x 6" long)

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

13

A63804

HUB

- tapered

2шт.

15

A65473

WHEEL

- steel (Use w/18.4-38 tire), 3-7/8'' diameter axle

2шт.

15

A65474

WHEEL

- steel (Use w/20.8-38 tire), 3-7/8'' diameter axle

2шт.

16

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex. (5/8 x 1-3/4" N.C.) (wheel to spacer), steel wheel with 3-7/8'' diameter axle

16шт.

17

A64303

WASHER

- hardened (5/8 x 1-1/16 x 1/16"), steel wheel with 3-7/8'' diameter axle

16шт.

18

129-563

NUT,5/8"-11, G8

- hex. (5/8" N.C.), steel wheel with 3-7/8'' diameter axle

16шт.

19

A145968

SPACER

- dual wheel (Replaces A65475), steel wheel with 3-7/8'' diameter axle

2шт.

20

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Steel wheel with 3-7/8'' diameter axle Hex, 5/8"-11 x 1 3/4", G5, Full Thd

16шт.

21

A147095

WASHER

- hardened wide bearing split (11/16 x 1-5/16 x 3/16"), steel wheel with 3-7/8'' diameter axle

16шт.

22

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4 x 4-1/2" N.C.), steel wheel with 3-7/8'' diameter axle

12шт.

23

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), steel wheel with 3-7/8'' diameter axle

12шт.

24

A63805

BUSHING

- hub (w/3/4" wide keyway), steel wheel with 3-7/8'' diameter axle

2шт.

25

A63219

KEY

- axle (3/4" wide x 6" long), steel wheel with 3-7/8'' diameter axle

2шт.

26

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Steel wheel with 3-7/8'' diameter axle 1/4" x 1/2", Slotted

2шт.

27

A63804

HUB

- tapered, steel wheel with 3-7/8'' diameter axle

2шт.
