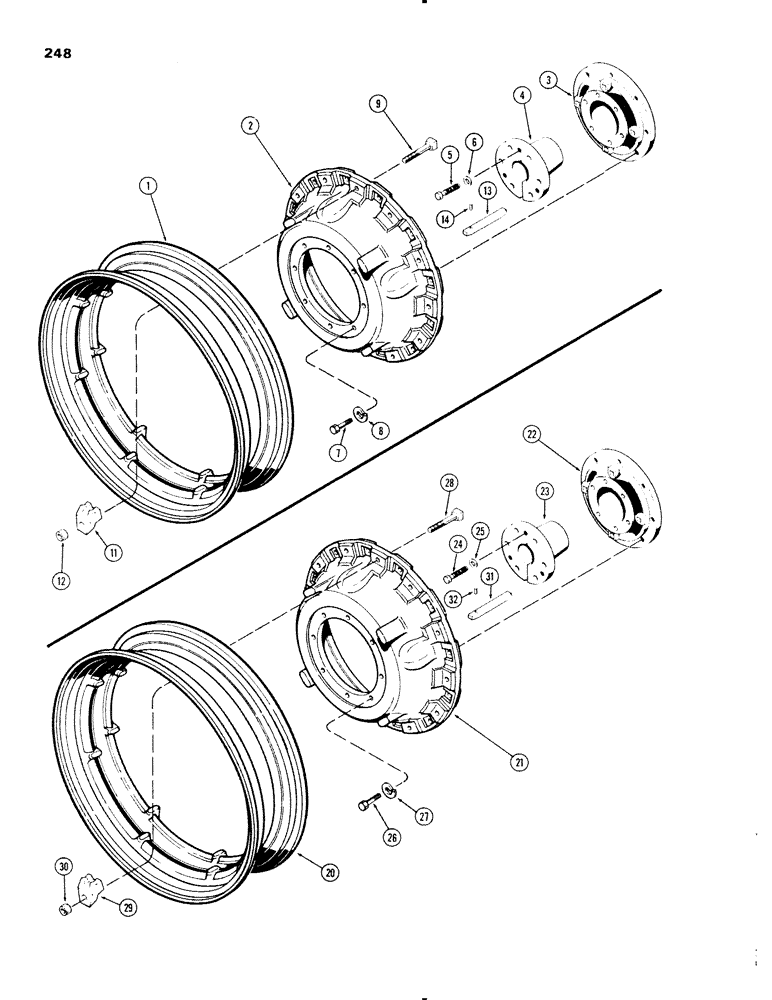

Запчасти Case IH 1270 (248) - DUAL REAR WHEELS WITH 42 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A61935
RIM
- rear (Use w/12.4-42 tire)
4шт.
2
A65417
WHEEL
- rear, cast
4шт.
3
A59791
HUB
- universal
2шт.
4
A59792
HUB
BUSHING - rear wheel hub (w/5/8" wide keyway)
4шт.
5
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - (3/4 x 4-1/2" N.C.)
24шт.
6
D31328
WASHER
- (49/64 x 1-5/8 x 1/4")
24шт.
7
26-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8
- hex. (5/8 x 2-3/4" N.C.)
32шт.
8
A147095
WASHER
- wide bearing split (11/16 x 1-5/16 x 3/16")
32шт.
9
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- (3/4 x 3-1/2" N.C. square head)
48шт.
11
A61934
CLAMP
- double ramp
48шт.
12
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- hex. (3/4" N.C.)
48шт.
13
A34890
BUCKET TOOTH KEY
KEY - hub bushing (5/8" wide x 6" long)
4шт.
20
A61935
RIM
- rear (Use w/12.4-42 tire), with 3-7/8'' diameter axle shaft
4шт.
21
A65417
WHEEL
- rear, cast, with 3-7/8'' diameter axle shaft
4шт.
22
A63804
HUB
- universal, with 3-7/8'' diameter axle shaft
2шт.
23
A63805
BUSHING
- rear wheel hub (w/3/4" wide keyway), with 3-7/8'' diameter axle shaft
4шт.
24
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - (3/4 x 4-1/2" N.C.), with 3-7/8'' diameter axle shaft
24шт.
25
D31328
WASHER
- (49/64 x 1-5/8 x 1/4"), with 3-7/8'' diameter axle shaft
24шт.
26
26-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8
- hex. (5/8 x 2-3/4" N.C.), with 3-7/8'' diameter axle shaft
32шт.
27
A147095
WASHER
- wide bearing split (11/16 x 1-5/16 x 3/16"), with 3-7/8'' diameter axle shaft
32шт.
28
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- (3/4 x 3-1/2" N.C. square hd.), with 3-7/8'' diameter axle shaft
48шт.
29
A61934
CLAMP
- double ramp, with 3-7/8'' diameter axle shaft
48шт.
30
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- hex. (3/4" N.C.), with 3-7/8'' diameter axle shaft
48шт.
32
LOCK PIN,1/4" x 1/2", Slotted
PIN, , with 3-7/8'' diameter axle shaft 1/4" x 1/2", Slotted
4шт.
