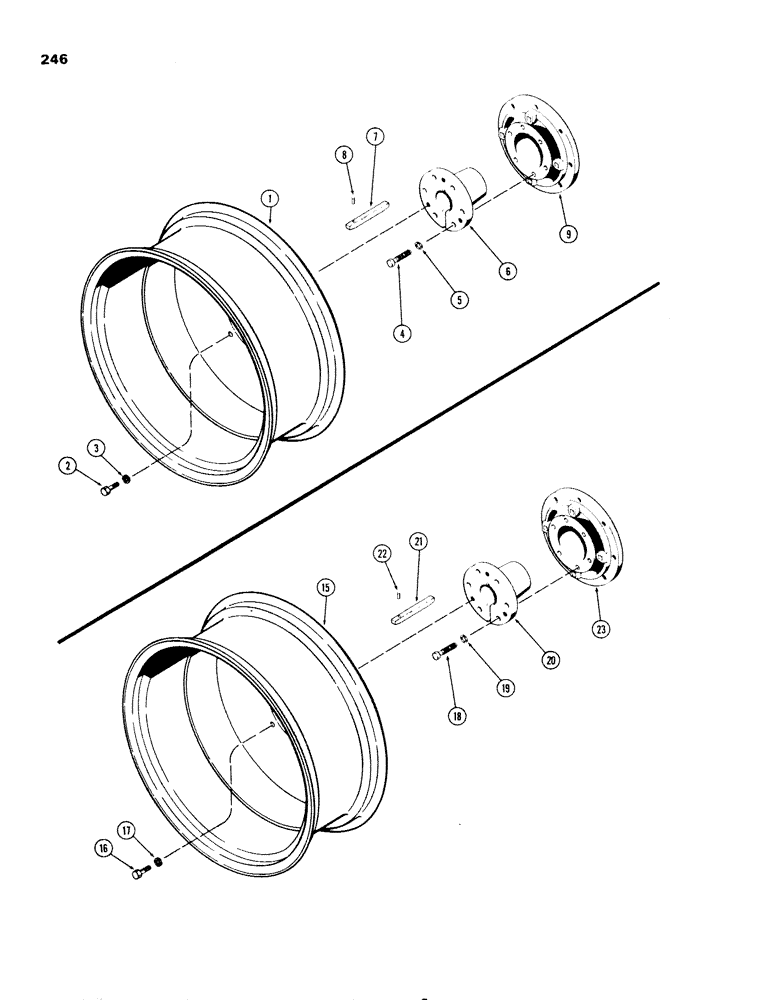

Запчасти Case IH 1270 (246) - 38 INCH OUTER DUAL REAR WHEELS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A65473

WHEEL

- steel (Use w/18.4-38 tire)

2шт.

1

A65474

WHEEL

- steel (Use w/20.8-38 tire)

2шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

4

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.)

12шт.

5

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

6

A59792

HUB

BUSHING - wheel hub (w/5/8" wide keyway)

2шт.

7

A34890

BUCKET TOOTH KEY

KEY - axle (5/8" wide x 6" long)

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

9

A59791

HUB

- tapered

2шт.

15

A65473

WHEEL

- steel (Use w/18.4-38 tire), with 3-7/8'' diameter axle shaft

2шт.

15

A65474

WHEEL

- steel (Use w/20.8-38 tire), with 3-7/8'' diameter axle shaft

2шт.

16

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

with 3-7/8'' diameter axle shaft Hex, 5/8"-11 x 2", G5

16шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , with 3-7/8'' diameter axle shaft 5/8"

16шт.

18

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), with 3-7/8'' diameter axle shaft

12шт.

19

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), with 3-7/8'' diameter axle shaft

12шт.

20

A63805

BUSHING

- wheel hub (w/3/4" wide keyway), with 3-7/8'' diameter axle shaft

2шт.

21

A63219

KEY

- axle (3/4" wide x 6" long), with 3-7/8'' diameter axle shaft

2шт.

22

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to hub, with 3-7/8'' diameter axle shaft 1/4" x 1/2", Slotted

2шт.

23

A63804

HUB

- tapered, with 3-7/8'' diameter axle shaft

2шт.
