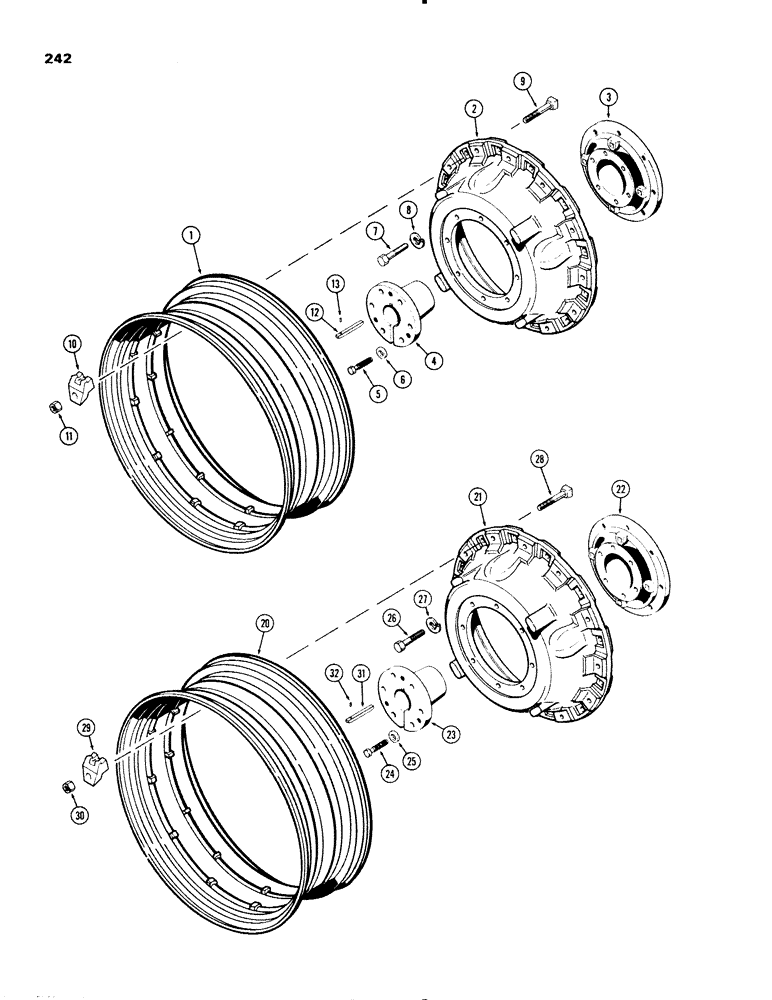

Запчасти Case IH 1270 (242) - DUAL REAR WHEELS WITH 38 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A61576

RIM

- rear wheel (Use w/16.9-38 tire)

4шт.

1

A61577

RIM

- rear wheel (Use w/18.4-38 tire)

4шт.

2

A65417

WHEEL

- rear, cast

4шт.

3

A59791

HUB

- tapered

4шт.

4

A59792

HUB

BUSHING - rear wheel hub

4шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), bushing to hub

24шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

24шт.

7

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.)

32шт.

8

A147095

WASHER

- wide bearing split (11/16 x 1-5/16 x 3/16")

32шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head)

48шт.

10

A57654

CLAMP

- double ramp, Serial Range: rim-wheel

48шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.)

48шт.

12

A34890

BUCKET TOOTH KEY

KEY - rear wheel hub (5/8" sq. x 6" long)

4шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.

20

A61576

RIM

- rear wheel (Use w/16.9-38 tire) (Do not use w/spacer), with 3-7/8'' diameter axle shaft

4шт.

20

A61577

RIM

- rear wheel (Use w/18.4-38 tire), with 3-7/8'' diameter axle shaft

4шт.

20

A61578

RIM

- rear wheel (Use w/20.8-38 tire), with 3-7/8'' diameter axle shaft

4шт.

21

A65417

WHEEL

- rear, cast, with 3-7/8'' diameter axle shaft

4шт.

22

A63804

HUB

- universal, with 3-7/8'' diameter axle shaft

4шт.

23

A63805

BUSHING

- rear wheel hub, with 3-7/8'' diameter axle shaft

4шт.

24

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), bushing to hub, with 3-7/8'' diameter axle shaft

24шт.

25

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), with 3-7/8'' diameter axle shaft

24шт.

26

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.), with 3-7/8'' diameter axle shaft

32шт.

27

A147095

WASHER

- wide bearing split (11/16 x 1-5/16 x 3/16"), with 3-7/8'' diameter axle shaft

32шт.

28

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), with 3-7/8'' diameter axle shaft

48шт.

29

A57654

CLAMP

- double ramp, rim to wheel, with 3-7/8'' diameter axle shaft

48шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.), with 3-7/8'' diameter axle shaft

48шт.

31

A63219

KEY

- rear wheel hub, (3/4" sq. x 6" long), with 3-7/8'' diameter axle shaft

4шт.

32

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , with 3-7/8'' diameter axle shaft 1/4" x 1/2", Slotted

4шт.
