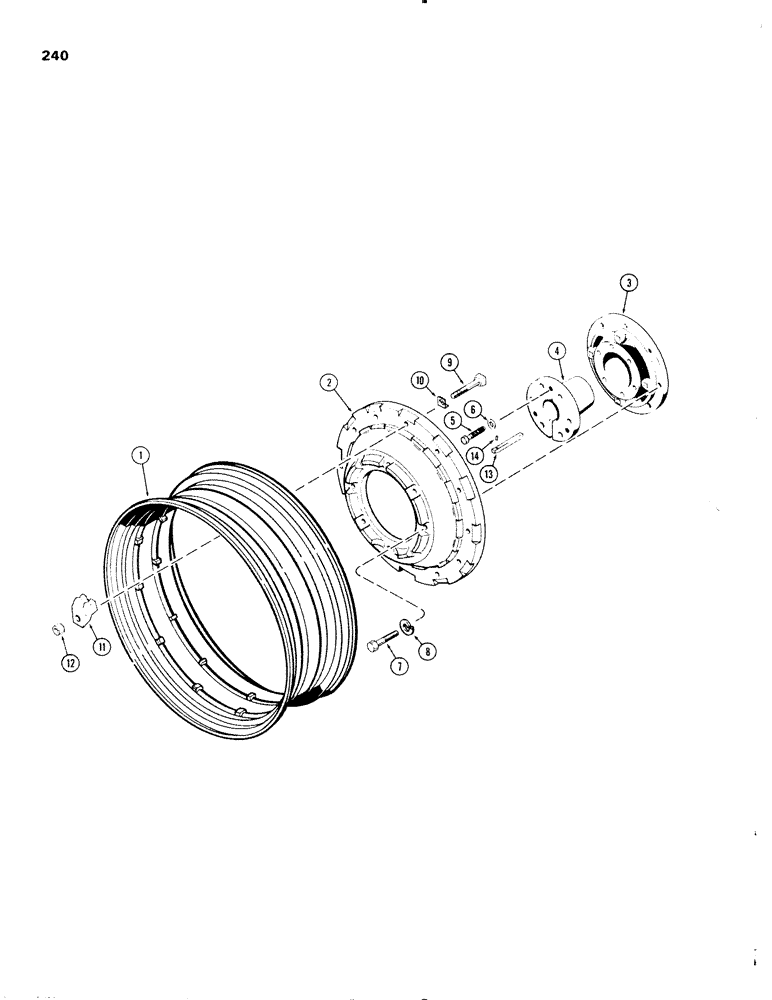

Запчасти Case IH 1270 (240) - DUAL REAR WHEELS WITH 34 INCH RIMS, WITH 3-7/8 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A63810

RIM

- rear wheel (Use w/20.8-34 tire)

4шт.

2

A63809

WHEEL

- rear (Use w/20.8-34 tire)

4шт.

3

A63804

HUB

- tapered (3-7/8" taper)

4шт.

4

A63805

BUSHING

- tapered

4шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.)

24шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

24шт.

7

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.), wheel to hub

32шт.

8

A147095

WASHER

- wide bearing split (11/16 x 1-5/16 x 3/16")

32шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head)

48шт.

10

A34799

LOCK WASHER

- lock, clamp bolt

48шт.

11

A57654

CLAMP

- double ramp, Serial Range: rim-wheel

48шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.)

48шт.

13

A63219

KEY

- rear wheel hub

4шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to hub 1/4" x 1/2", Slotted

4шт.
