(238) - REAR WHEELS WITH 38 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT

Запчасти Case IH 1270 (238) - REAR WHEELS WITH 38 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

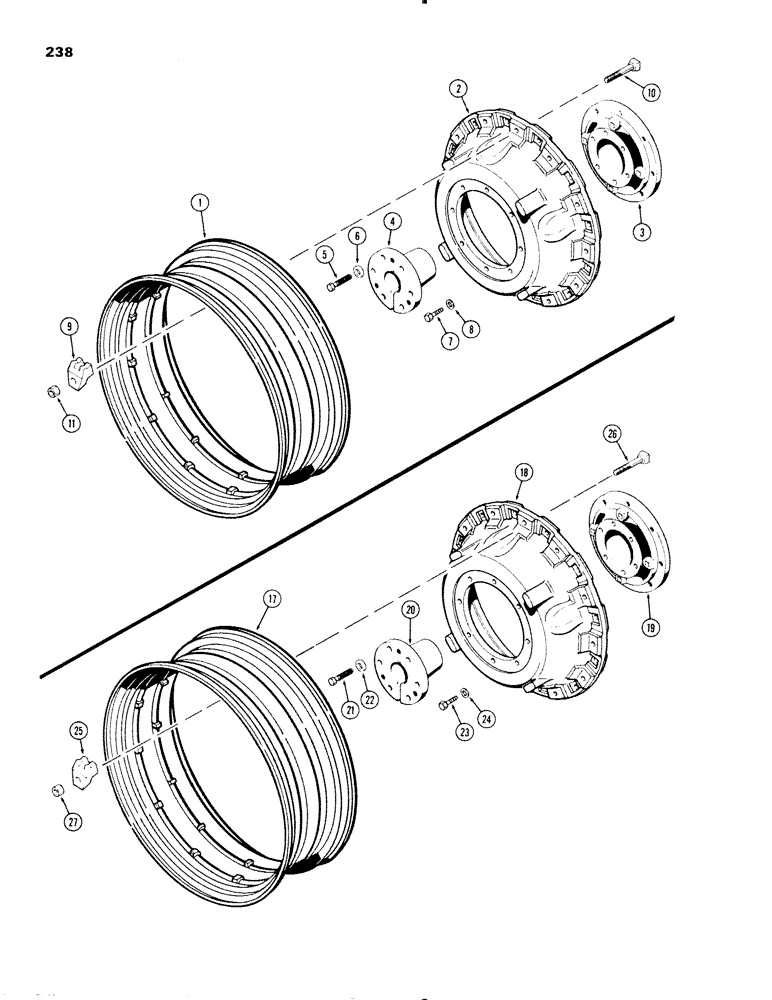

Схема запчастей Case IH 1270 - (238) - REAR WHEELS WITH 38 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN
20
6
4
10
18
21
24
3
22
8
2
25
17
26
5
19
11
1
7
23
9
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A61576

RIM

- rear wheel (Use w/16.9-38 tire)

2шт.

1

A61577

RIM

- rear wheel (Use w/18.4-38 tire)

2шт.

1

A61578

RIM

- rear wheel (Use w/20.8-38 tire)

2шт.

2

A65417

WHEEL

- rear

2шт.

3

A59791

HUB

- universal (3-1/2" taper)

2шт.

4

A59792

HUB

BUSHING - rear wheel

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C. hex.)

12шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

7

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.) wheel to hub

16шт.

8

A64303

WASHER

- (5/8 x 1-1/16 x 1/16")

16шт.

9

A57654

CLAMP

- double ramp, Serial Range: rim-wheel

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head)

24шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.)

24шт.

17

A61576

RIM

- rear wheel (Use w/16.9-38 tire), with 3-7/8'' diameter axle shaft

2шт.

17

A61577

RIM

- rear wheel (Use w/18.4-38 tire), with 3-7/8'' diameter axle shaft

2шт.

17

A61578

RIM

- rear wheel (Use w/20.8-38 tire), with 3-7/8'' diameter axle shaft

2шт.

18

A65417

WHEEL

- rear, with 3-7/8'' diameter axle shaft

2шт.

19

A63804

HUB

- universal (3-7/8" taper), with 3-7/8'' diameter axle shaft

2шт.

20

A63805

BUSHING

- rear wheel hub, with 3-7/8'' diameter axle shaft

2шт.

21

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), with 3-7/8'' diameter axle shaft

12шт.

22

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), with 3-7/8'' diameter axle shaft

12шт.

23

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.), wheel to hub, with 3-7/8'' diameter axle shaft

16шт.

24

A64303

WASHER

- (5/8 x 1-1/16 x 1/16"), with 3-7/8'' diameter axle shaft

16шт.

25

A57654

CLAMP

- double ramp, rim to wheel, with 3-7/8'' diameter axle shaft

24шт.

26

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head), with 3-7/8'' diameter axle shaft

24шт.

27

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.), with 3-7/8'' diameter axle shaft

24шт.
