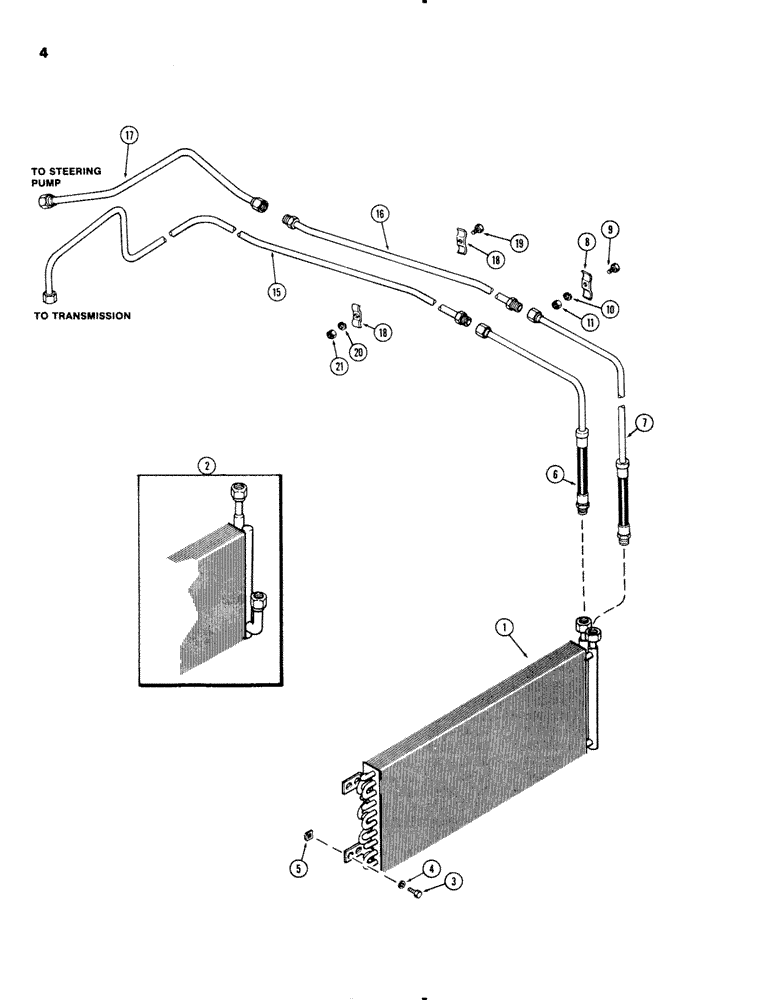

Запчасти Case IH 1270 (004) - OIL COOLER, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A147528

COOLER

- oil, transmission (With A145875 replaces A63651)

1шт.

2

A63651

COOLER

- oil, transmission

1шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-133

NUT,Ret, 3/8"-16

Speed grip Ret, 3/8"-16

4шт.

6

A145876

TUBE

- outlet, trans. oil cooler (Replaces A63652)

1шт.

7

A145875

HOSE

TUBE - inlet, trans. oil cooler (Use With A147528) (Hose end to bend, 15")

1шт.

7

A63653

HOSE

TUBE - inlet, trans. oil cooler (Use with A63651) (Hose end to bend, 23-1/2")

1шт.

8

A63323

CLAMP

- tubes

1шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

15

A63656

TUBE - oil cooler return

1шт.

16

A63655

TUBE

- oil cooler outlet, center

1шт.

17

A63654

TUBE

- oil cooler outlet (to steering pump)

1шт.

18

A63323

CLAMP

- oil cooler tube

2шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.
