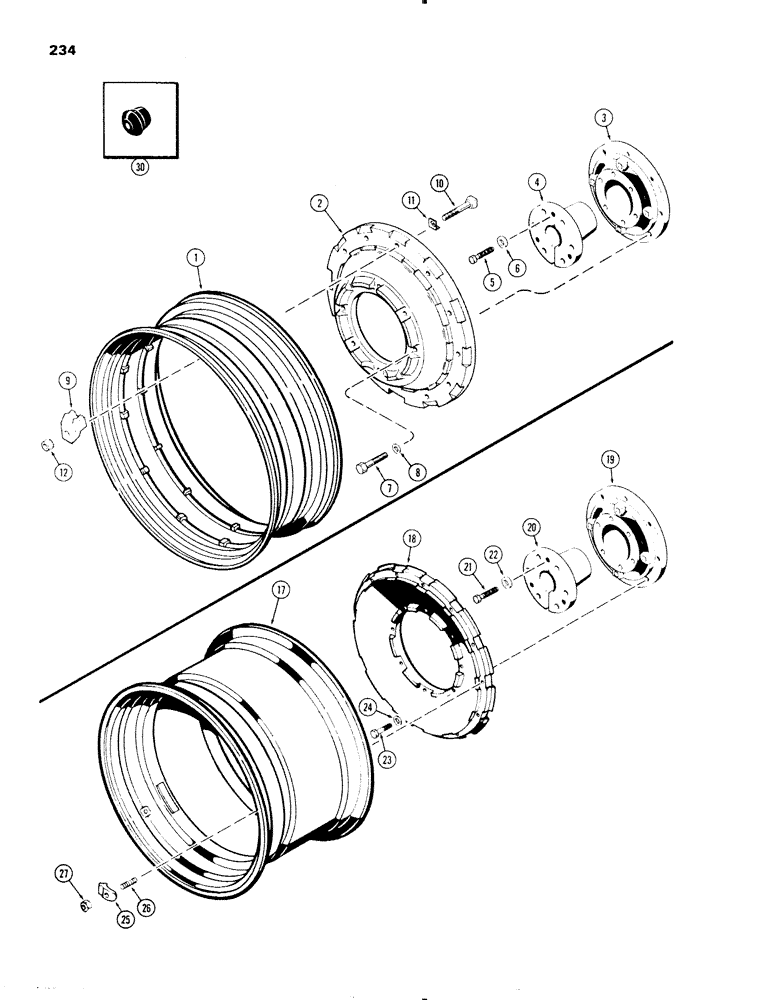

Запчасти Case IH 1270 (234) - REAR WHEELS WITH 34 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT, FOR 20.8 X 34 TIRE (06) - POWER TRAIN

1

A63810

RIM

- rear wheel

2шт.

2

A63809

WHEEL

- rear

2шт.

3

A59791

HUB

- universal (3-1/2" tapered bushing)

2шт.

4

A59792

HUB

BUSHING - (3-1/2" taper) rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.)

12шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

7

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.), wheel to hub

16шт.

8

A64303

WASHER

- (5/8 x 1-1/16 x 1/16")

16шт.

9

A57654

CLAMP

- double ramp, Serial Range: (rim-wheel)

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4 x 3-1/2" N.C. square head)

24шт.

11

A34799

LOCK WASHER

- lock, clamp bolt

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex. (3/4" N.C.)

24шт.

17

A33460

RIM

- rear wheel, for 23.1 x 34 tire

2шт.

18

A57686

WHEEL

- rear, for 23.1 x 34 tire

2шт.

19

A59791

HUB

- universal (3-1/2" tapered bushing), for 23.1 x 34 tire

2шт.

20

A59792

HUB

BUSHING - (3-1/2" taper), for 23.1 x 34 tire

2шт.

21

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex., bushing to hub, for 23.1 x 34 tire

12шт.

22

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), for 23.1 x 34 tire

12шт.

23

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex. (5/8 x 2-3/4" N.C.), wheel to hub, for 23.1 x 34 tire

16шт.

24

A64303

WASHER

- (5/8 x 1-1/6 x 1/16"), for 23.1 x 34 tire

16шт.

25

F62001

CLAMP

- rear wheel rim, for 23.1 x 34 tire

16шт.

26

A60047

STUD

- rear wheel rim, for 23.1 x 34 tire

16шт.

27

A27183

NUT

- stud, rear wheel rim, for 23.1 x 34 tire

16шт.

30

A145052

PLUG

- rim (Use in extra hole w/tubeless tire), for 23.1 x 34 tire

2шт.
