Запчасти Case IH 1270 (232) - REAR WHEELS WITH 32 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

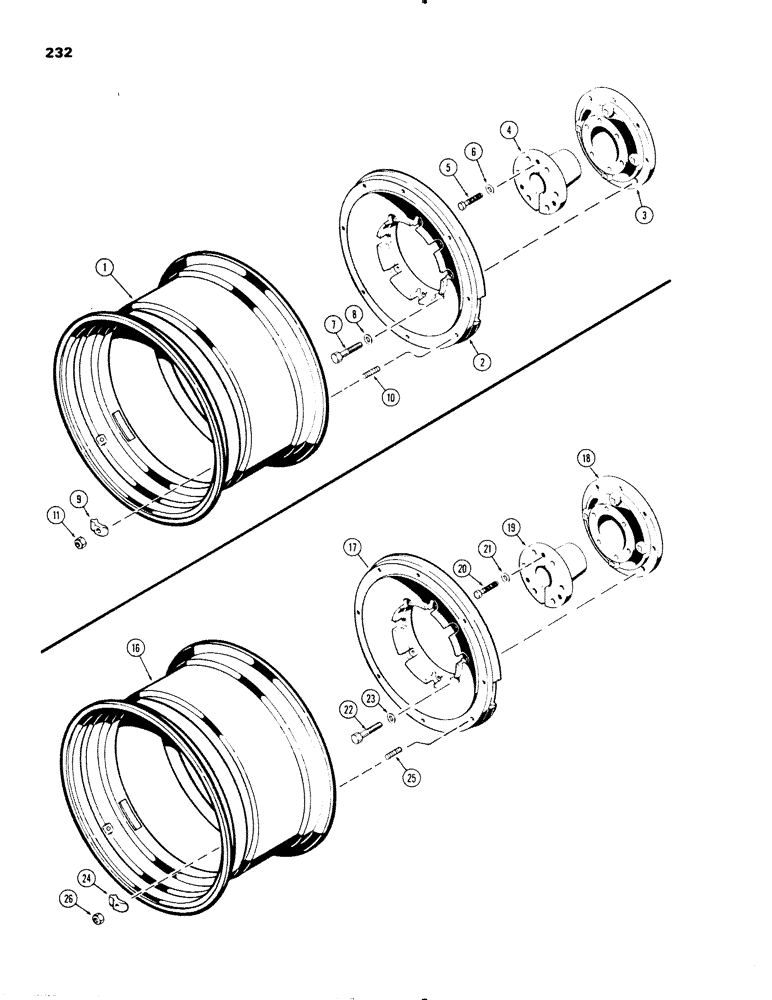

Схема запчастей Case IH 1270 - (232) - REAR WHEELS WITH 32 INCH RIMS, WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN
21
17
1
7
5
23
8
4
22
24
16
20
3
9
19
6
2
18
11
10
25
26

Артикул

Название

Примечание

Количество

1

A63807

RIM

- rear wheel (Use w/24.5-32 tire)

2шт.

2

A63806

WHEEL

- rear

2шт.

3

A59791

HUB

- universal (3-1/2" tapered bushing)

2шт.

4

A59792

HUB

BUSHING - (3-1/2" tapered)

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C. hex.) (Special)

12шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4") (Special)

12шт.

7

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- (5/8 x 2-1/4" N.C. hex.)

16шт.

8

A64303

WASHER

- (5/8 x 1-1/16 x 1/16")

16шт.

9

F62001

CLAMP

- rear wheel rim

16шт.

10

A60047

STUD

- rear wheel rim

16шт.

11

A27183

NUT

- stud, rear wheel rim

16шт.

16

A63807

RIM

- rear wheel (Use w/24.5-32 tire), with 3-7/8'' diameter axle shaft

2шт.

17

A63806

WHEEL

- rear, with 3-7/8'' diameter axle shaft

2шт.

18

A63804

HUB

- universal, with 3-7/8'' diameter axle shaft

2шт.

19

A63805

BUSHING

- rear wheel hub, with 3-7/8'' diameter axle shaft

2шт.

20

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C. hex.), with 3-7/8'' diameter axle shaft

12шт.

21

D31328

WASHER

- plain (3/4"), with 3-7/8'' diameter axle shaft

12шт.

22

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- (5/8 x 2-1/4" N.C. hex.), with 3-7/8'' diameter axle shaft

16шт.

23

A64303

WASHER

(5/8 x 1-1/16 x 1/16"), with 3-7/8'' diameter axle shaft

16шт.

24

F62001

CLAMP

- rear wheel rim, with 3-7/8'' diameter axle shaft

16шт.

25

A60047

STUD

- rear wheel rim, with 3-7/8'' diameter axle shaft

16шт.

26

A27183

NUT

- stud, rear wheel rim, with 3-7/8'' diameter axle shaft

16шт.

Выбрано товаров: 22
