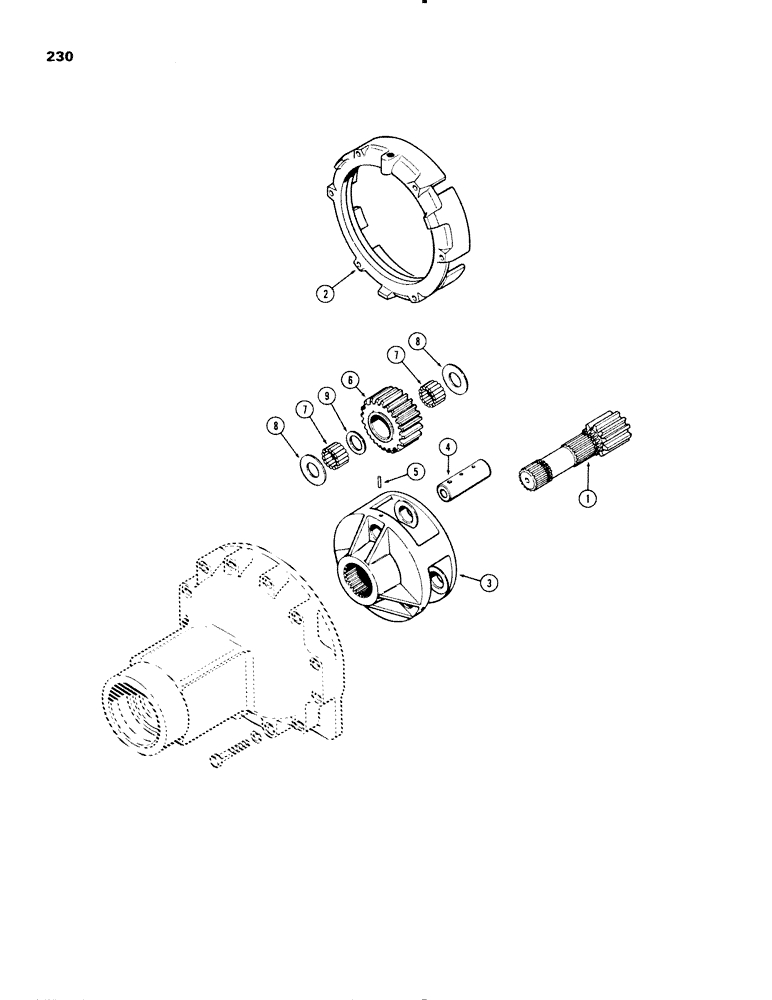

Запчасти Case IH 1270 (230) - REAR AXLE PLANETARY CONVERSION KIT (06) - POWER TRAIN

A67338

KIT

- conversion, rear axle planetary (See Note), Includes Ref: 1-9

1шт.

1

A148020

SHAFT

- differential, See Figure 208

2шт.

2

A148019

CYLINDER

- brake support, See Figure 208

2шт.

3

A148018

CARRIER

- planet gear

2шт.

4

A67153

PIN

- planet gear

6шт.

5

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

6

A153937

GEAR

- planet, rear axle (Replaces A150011)

6шт.

7

A45106

ROLLER BEARING

KIT - planet gear roller (Includes 38 roller bearings)

6шт.

8

A67116

WASHER

- planet pin roller

12шт.

9

A67117

SPACER

- roller bearing separator

6шт.
