Заказать запчасти

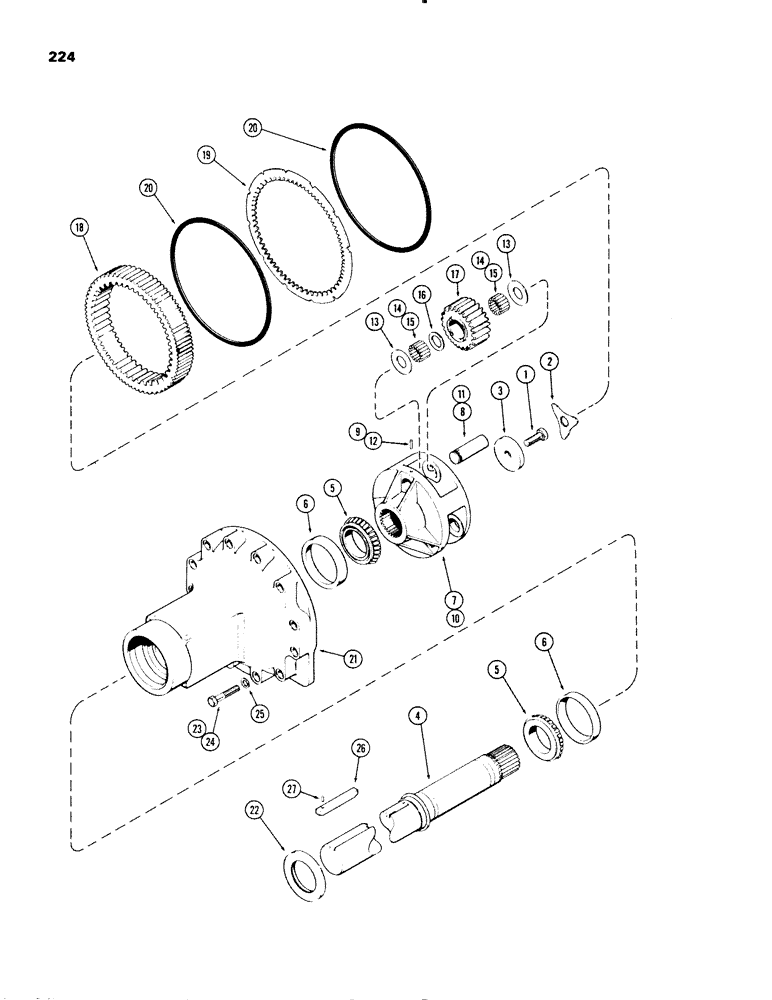

Запчасти Case IH 1270 (224) - REAR AXLE HOUSING AND PLANET GEARS, 3-1/2 INCH DIA. AXLE SHAFT, USED PRIOR TO TRANS. S/N 10032467 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
26-1436
BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8
- 7/8 x 2-1/4" N.C. hex
2шт.
2
A63221
PLATE
- bearing lock
2шт.
3
A63220
PLATE
- retaining, rear axle
2шт.
4
A63211
SHAFT
- rear axle (3-1/2" dia. x 33-13/16" long)
1шт.
5
A59049
ROLLER BEARING
CONE - bearing, axle shaft (3-1/2" I.D. x 1-11/32" wide)
4шт.
6
A59048
BEARING CUP
CUP - bearing, axle shaft (5-3/4" O.D. x 1-11/16" wide)
4шт.
7
A63223
CARRIER
- planet gear (w/1/4" pin hole) (Used prior to trans. ser. no. 2818464) (See Ref. 10) (Order A44773 and A66506)
2шт.
8
A66059
PIN
- planet gear (w/1/4" hole) (Used prior to trans. ser. no. 2818464) (Order A44773 kit)
6шт.
10
A66506
CARRIER
- planet gear (w/3/8" pin hole) (1st used trans. ser. no. 2818464)
2шт.
A44773
KIT
- pin replacement, Includes Ref: 11, 12
1шт.
11
NSS
NOT SOLD SEPARAT
PIN - planet gear (w/3/8" hole) (1st used trans. ser. no. 2818464)
1шт.
12
138-2066
PIN,3/8" x 1 1/2", Coiled
(1st used trans. S/N 2818464) 3/8" x 1 1/2", Coiled
1шт.
13
A63228
WASHER
- planet pin roller
12шт.
14
A45106
ROLLER BEARING
KIT - planet gear roller, Includes Ref: 15
6шт.
15
NSS
NOT SOLD SEPARAT
BEARING - roller, planet gear
38шт.
16
A63227
SPACER
- roller bearing separator
6шт.
17
A65322
GEAR
- planet, rear axle
6шт.
18
A151934
GEAR
- ring, planet (Replaces A63229)
2шт.
19
A63222
PLATE
- torque reaction
2шт.
20
A63230
SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk
- axle housing
4шт.
21
A63210
HOUSING
- rear axle (Order A140308, Figure 222)
2шт.
22
A59046
OIL SEAL
- oil, axle shaft (3-7/8" I.C. x 9/16" wide)
2шт.
23
26-1072
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8
- 5/8 x 4-1/2" N.C. hex
18шт.
24
26-1076
BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8
- 5/8 x 4-3/8" N.C. hex
6шт.
25
A64303
WASHER
- hardened (5/8 x 1 x 1/16")
24шт.
26
A34890
BUCKET TOOTH KEY
KEY - wheel to axle shaft (5/8" sq. x 6" long)
2шт.
Выбрано товаров: 28
