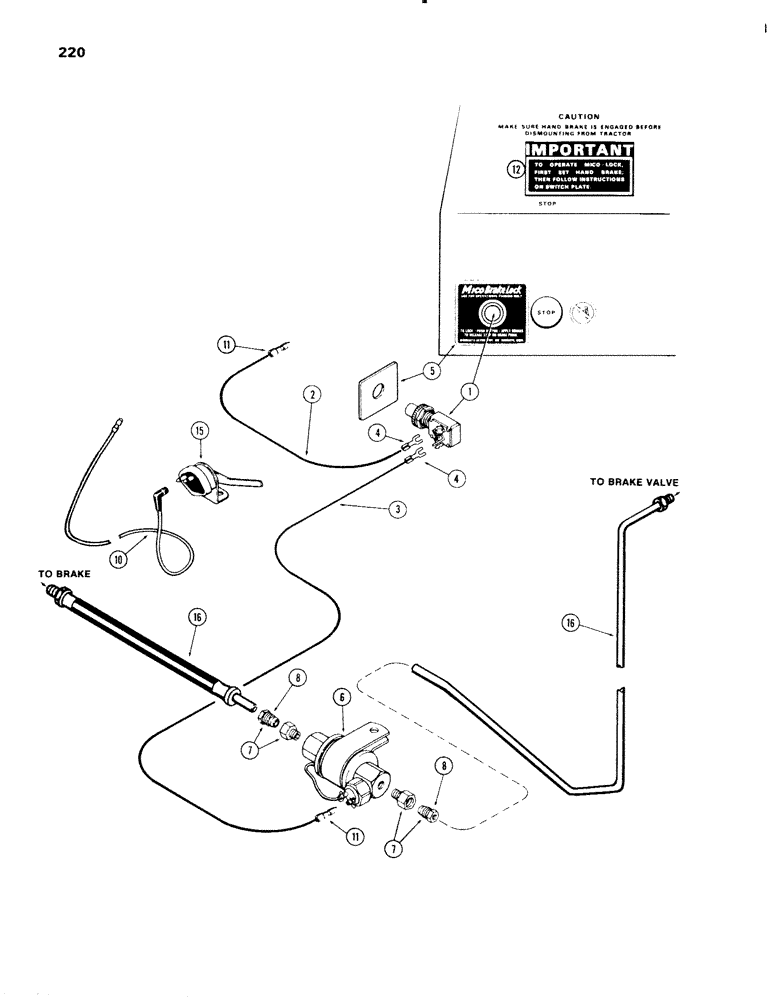

Запчасти Case IH 1270 (220) - HYDRAULIC BRAKE LOCK KIT (06) - POWER TRAIN

A66623

KIT

- hydraulic brake lock, Includes Ref: 1-8

1шт.

A66624

LOCK

PACKAGE

1шт.

1

A44998

SWITCH

- push button, brake lock

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - switch to brake warning lamp (green 22")

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE - switch to valve (green 120")

1шт.

4

223-73

SPADE TERMINAL,14 - 16

TERMINAL - spade, green wire

2шт.

5

A44999

PLATE - information, switch

1шт.

6

A44683

VALVE

- hydraulic, brake lock

1шт.

7

222-402

HYD CONNECTOR,1/8" NPT x 7/16"-24

FITTING ASSEMBLY - valve to tube, 1/4" tube x 1/8" P.T., Includes Ref: 8

2шт.

8

222-502

TUBE NUT,7/16"-24

NUT - 1/4" tube

1шт.

10

A66713

ELECTRICAL WIRE

WIRE - parking brake switch to inst. panel (87")

1шт.

11

L10051

TERMINAL CONNECTOR,Male

TERMINAL - bullet, green wire

2шт.

12

321-2655

DECAL

- important instruction

1шт.

15

REF

INSTRUCTION

SWITCH - parking brake warning lamp, See Figure: 94

1шт.

16

REF

INSTRUCTION

TUBE - brake, R.H., See Figure: 258

1шт.
