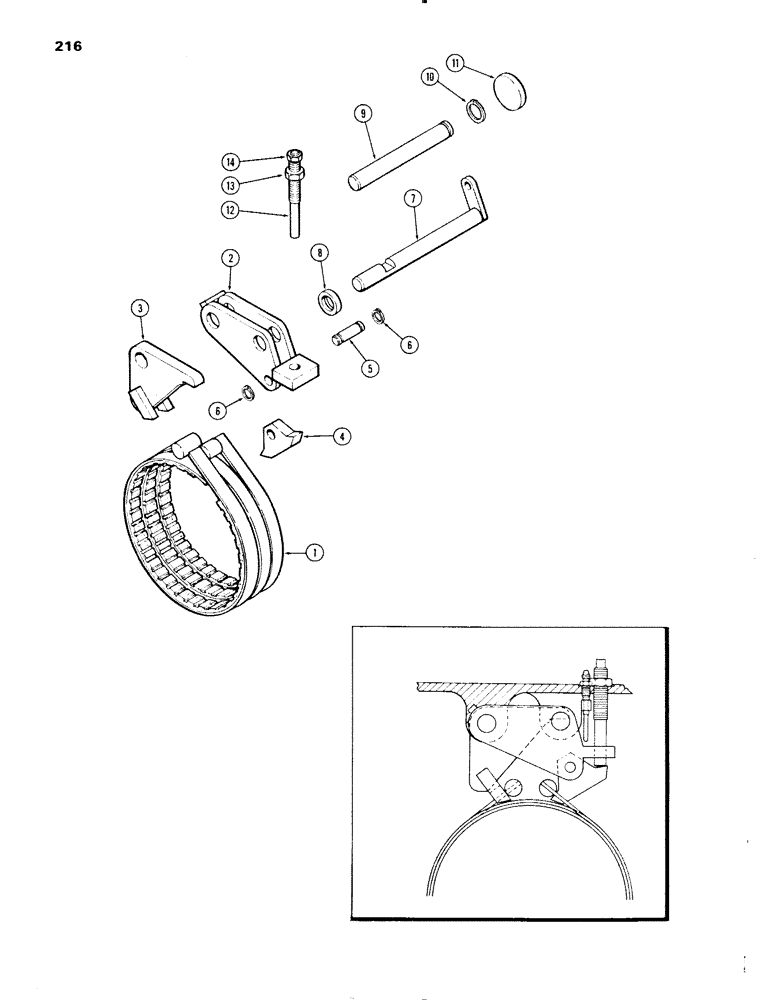

Запчасти Case IH 1270 (216) - DIFFERENTIAL BRAKE ASSEMBLY, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

A63231

BAND

BRAKE ASSEMBLY - with lining

1шт.

2

A63242

BRACKET

- brake band anchor

1шт.

3

A63246

LEVER

- brake band

1шт.

4

A65459

LEVER

- adjusting, brake band

1шт.

5

A63251

PIN

- brake

1шт.

6

D32101

SNAP RING,#62, Ext

Ring, Snap, (replaces A59594) #62, Ext

2шт.

7

A65834

SHAFT

- brake

1шт.

8

A55855

OIL SEAL

- oil

1шт.

9

A63241

SHAFT

- brake lever

1шт.

10

B18208

SNAP RING,#100, Ext

shaft #100, Ext

1шт.

11

41-1022

PLUG,Cup, 1 3/8"

- shaft (1-3/8" dia.) (Replaces A23652)

1шт.

12

A63249

SCREW,3/4" - 10 x 5.88"

- adjusting

1шт.

13

25-1412

JAM NUT,Jam, 3/4"-10, G5

- (3/4" N.C. hex. jam)

1шт.

14

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

1шт.
