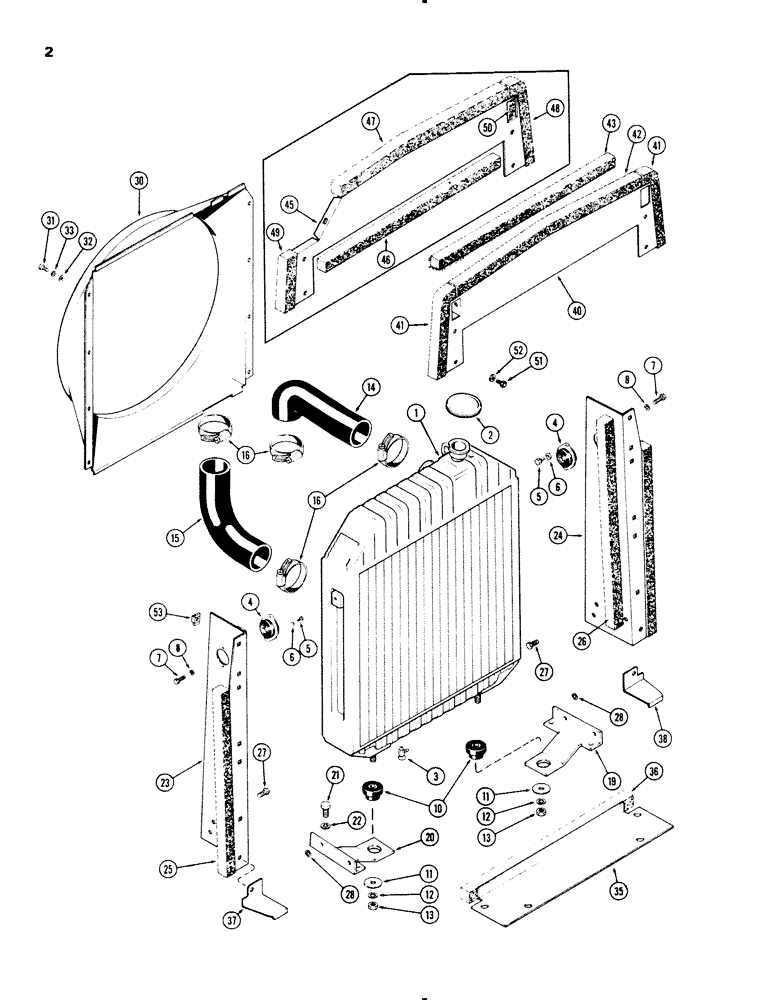

Запчасти Case IH 1270 (002) - RADIATOR AND ATTACHING PARTS, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A64484

RADIATOR

1шт.

2

A141846

CAP

- radiator (10 PSI)(1st used P.I.N. 8808749)

1шт.

2

A61784

CAP

- radiator (14 PSI), Serial Range: -8808749

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain (1/4" P.T.)

1шт.

4

A64069

MOUNTING PARTS

MOUNT - radiator support

2шт.

5

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - #6 x 3/8" N.F. rd. hd.

4шт.

6

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

4шт.

7

13-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- 1/4 x 1-5/8" N.C. hex

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

A59863

MOUNTING PARTS

MOUNT - center bonded

2шт.

11

51200247

WASHER

- snubber, center bonded mount, FITTING - tee

2шт.

12

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

A63727

LARGE HOSE,2.50" ID x 10.90", SAE 20R4 CLASS D2

RADIATOR HOSE, , Inlet 2.50" ID x 10.90", SAE 20R4 CLASS D2

1шт.

15

A145619

RADIATOR HOSE,2.62" ID x 8.40", SAE 20R4

Outlet (Replaces A63728) 2.62" ID x 8.40", SAE 20R4

1шт.

16

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

4шт.

19

A65099

BRACKET - radiator support, L.H.

1шт.

20

A65098

BRACKET

- radiator support, R.H.

1шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A63716

SUPPORT

ASSEMBLY - radiator side, R.H., Includes Ref: 25, 26

1шт.

24

A63717

SUPPORT

ASSEMBLY - radiator side L.H., Includes Ref: 25, 26

1шт.

25

A135898

SEAL

SEAL - outside (See Note)(1-5/8" sq. x 25-3/16" long)

1шт.

26

A63721

SEAL

- inside (See Note)(1-1/4" sq. x 22-1/2" long)

1шт.

27

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" N.C. hex

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

NOTE: TO BE ATTACHED WITH ADHESIVE 345-22.

1шт.

30

A141487

GUARD

SHROUD - fan (Replaces A63726)

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

32

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16"

8шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

35

A63711

BAFFLE

ASSEMBLY - radiator lower, Includes Ref: 36

1шт.

36

A63713

SEAL

- radiator, lower (See Note)(Order A63725)

1шт.

37

A63870

BAFFLE

- radiator lower, R.H.

1шт.

38

A63871

BAFFLE

- radiator lower, L.H.

1шт.

40

A66259

BAFFLE

ASSEMBLY - top (Use w/std. air cleaner), Includes Ref: 41-43

1шт.

41

A63724

SEAL

- side (1-1/4" sq. x 9-3/4")(See Note)(Order A63725)

2шт.

42

A63725

SEAL

- top (1-1/4" sq. x 26-1/2")(See Note)

1шт.

43

A63720

SEAL

- radiator (1-1/4" sq. x 25-13/64")(See Note)(Order A63725)

1шт.

45

A143248

BAFFLE

ASSEMBLY - (w/aspirated air cleaner), Includes Ref: 46-50

1шт.

46

A135898

SEAL

SEAL - radiator (1-5/8" sq. x 26-13/64)

1шт.

47

A66633

SEAL

- top (1-1/4" sq. x 22")(See Note)

1шт.

48

A63724

SEAL

- L.H. side (1-1/4" sq. x 9-3/4")(See Note)(Order A63725)

1шт.

49

A66632

SEAL

- R.H. side (1-1/4" sq. x 5-3/4")(See Note)

1шт.

50

A66634

SEAL

- L.H. cover (1-1/2" sq. x 2-13/16")

1шт.

51

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5шт.

52

92-5

LOCK WASHER,5/16"

5шт.

53

1502286C2

NUT,Floating Cage, 5/16"-18

- 5/16" N.C. Tinnerman

5шт.
