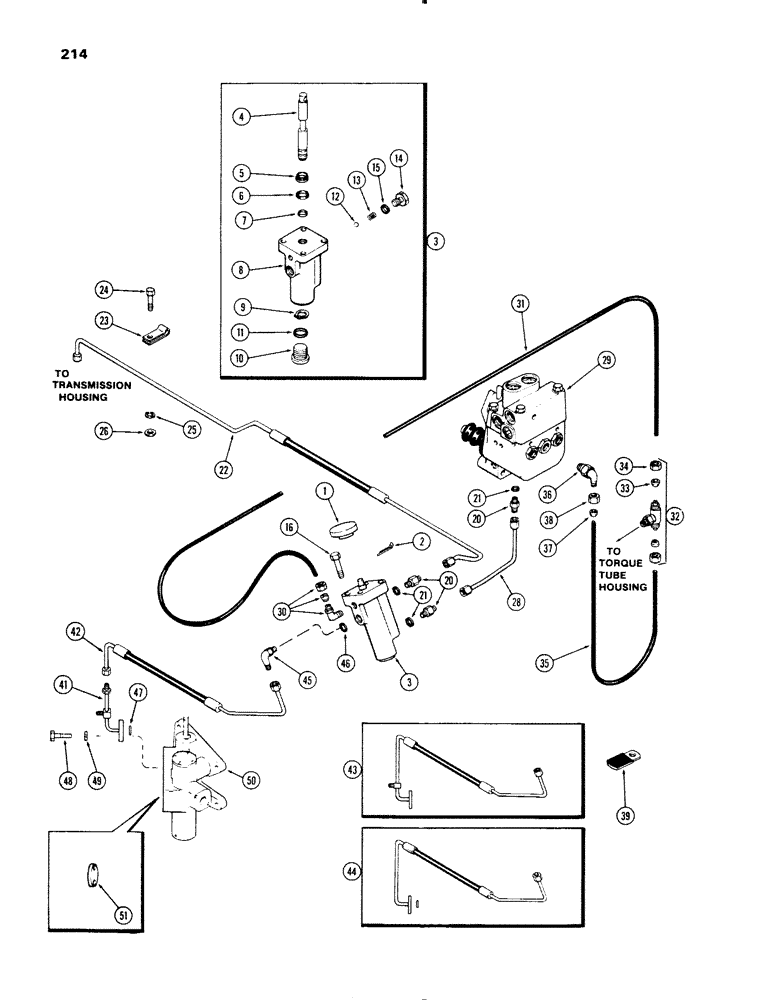

Запчасти Case IH 1270 (214) - DIFFERENTIAL LOCK MECHANISM (06) - POWER TRAIN

1

A141692

PEDAL

- foot, lock valve (w/symbol) (Replaces A63661)

1шт.

2

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

3

A147807

VALVE

ASSEMBLY - lock (Replaces A63657), Includes Ref: 4-15

1шт.

4

A147806

SPOOL

- valve control (Replaces A63659)

1шт.

5

A63660

RING

- wiper

1шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool (13/16 x 5/8 x 3/32")

1шт.

Part of Valve Seal Kit P/N A43711

1шт.

7

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- spool (7/16 x 5/8 x 3/32")

1шт.

Part of Valve Seal Kit P/N A43711

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - (Order A147807)

1шт.

9

G33052

SNAP RING,#62, Ext

Ring, Snap, , spool #62, Ext

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Assy, Spool opening Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

Part of Valve Seal Kit P/N A43711

1шт.

12

211-11

BALL,3/8" Dia

- detent, 3/8" Dia

1шт.

13

B51407

SPRING

- detent

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Assy, Spring Hex Hd, 7/16"-20 ORB

1шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 23/64 x 1/4 x 5/64"

1шт.

Part of Valve Seal Kit P/N A43711

1шт.

A43711

KIT

- valve seal, Includes: Ref. 5 - 7, 11 and 15

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Valve mounting Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

20

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - straight, 1/4" tube x 7/16"-20, Incl. Ref: 21

3шт.

21

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64"

1шт.

22

A147192

HOSE

- transmission to control valve (Replaces 63668)

1шт.

23

A63669

CLIP

- hose

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

28

A63664

PIPE

TUBE - lock valve to power brake valve

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - power brake, See Figures: 260 through 282

1шт.

30

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW - 3/8" tube x 1/8" P.T.

1шт.

31

A63997

TUBE

- nylon, lock valve to torque tube (3/8" O.D. x 25")

1шт.

32

222-5190

TEE,7/16"-24 x 3/8" NPT Run

ASSEMBLY - torque tube, 3/8" tube x 3/8" tube x 1/8" P.T., Includes Ref: 33, 34

1шт.

33

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

2шт.

34

222-5181

NUT,9/16"-24

NUT - 3/8" tube

2шт.

35

A64389

TUBE

- nylon, brake valve to torque tube (3/8" O.D. x 73")

1шт.

36

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSEMBLY - 3/8" tube x 1/4" P.T. 90deg., Includes Ref: 37

1шт.

37

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

38

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

39

A37179

CLIP

CLAMP - tube

1шт.

41

A147753

PIPE

TUBE ASSEMBLY - reg. valve to lock valve

1шт.

42

A147754

HOSE

- reg. valve to lock valve (With A147753 replaces A147191)

1шт.

43

A147191

TUBE

HOSE - regulator valve to lock valve (1st used trans. ser. no. 10056403) (Replaces A135710) (See Ref 42)

1шт.

44

A143793

HOSE

- regulator valve to lock valve (Used prior to trans. ser. no. 10056403)

1шт.

45

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSEMBLY - 1/4" tube x 3/8"-24, Includes Ref: 46

1шт.

46

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64"

1шт.

47

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- tube flange (3/8 x 9/16 x 3/32")

1шт.

48

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

50

REF

INSTRUCTION

VALVE ASSEMBLY - regulator, See Figure: 288

1шт.

51

A63672

CAP

- flange (w/o differential lock)

1шт.
