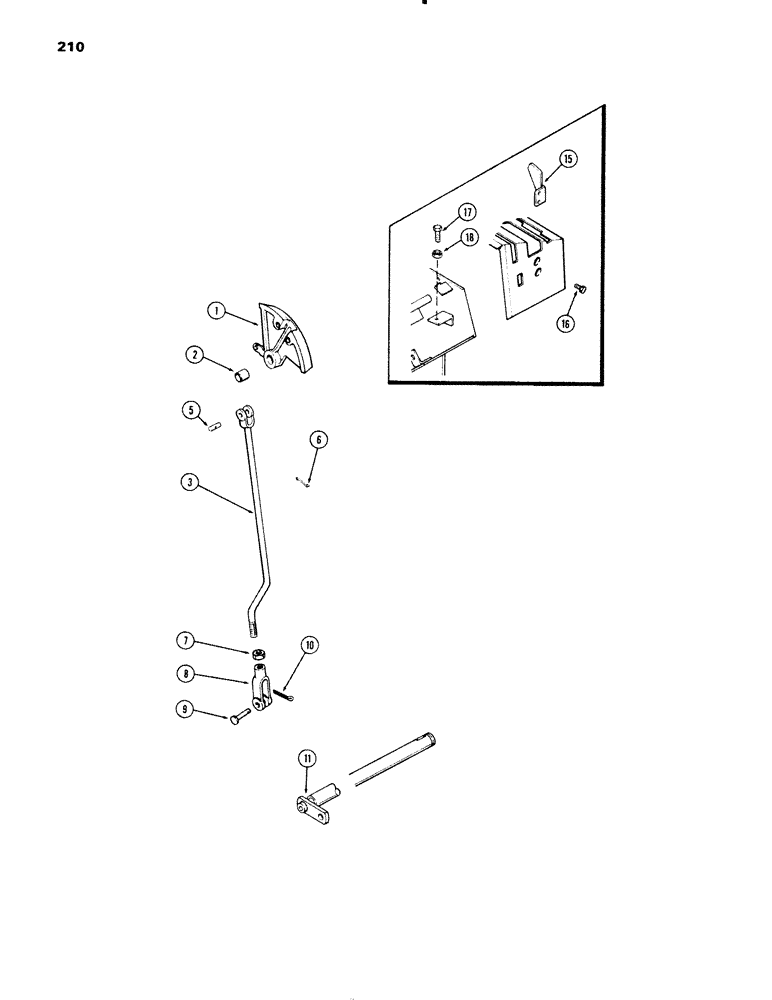

Запчасти Case IH 1270 (210) - PARK LOCK CONTROL LINKAGE, FIRST USED TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

A161147

QUADRANT

ASSEMBLY - control (With A145484 replaces A61874), Includes Ref: 2

1шт.

1

A61874

QUADRANT

ASSEMBLY - control (Order A145484 and A161147), Includes Ref: 2

1шт.

2

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- (5/8 x 3/4 x 3/4")

1шт.

3

A135930

ROD

- quadrant to park lock lever

1шт.

5

A59258

PIN

-, Serial Range: rod-quadrant

1шт.

6

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to lever (3/8")

1шт.

9

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

REF

INSTRUCTION

LEVER ASSEMBLY, See Figure: 190

1шт.

15

A143349

BRACKET

- locating

1шт.

16

113-22

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

- 1/4 x 1/2" N.C. hex

2шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.
