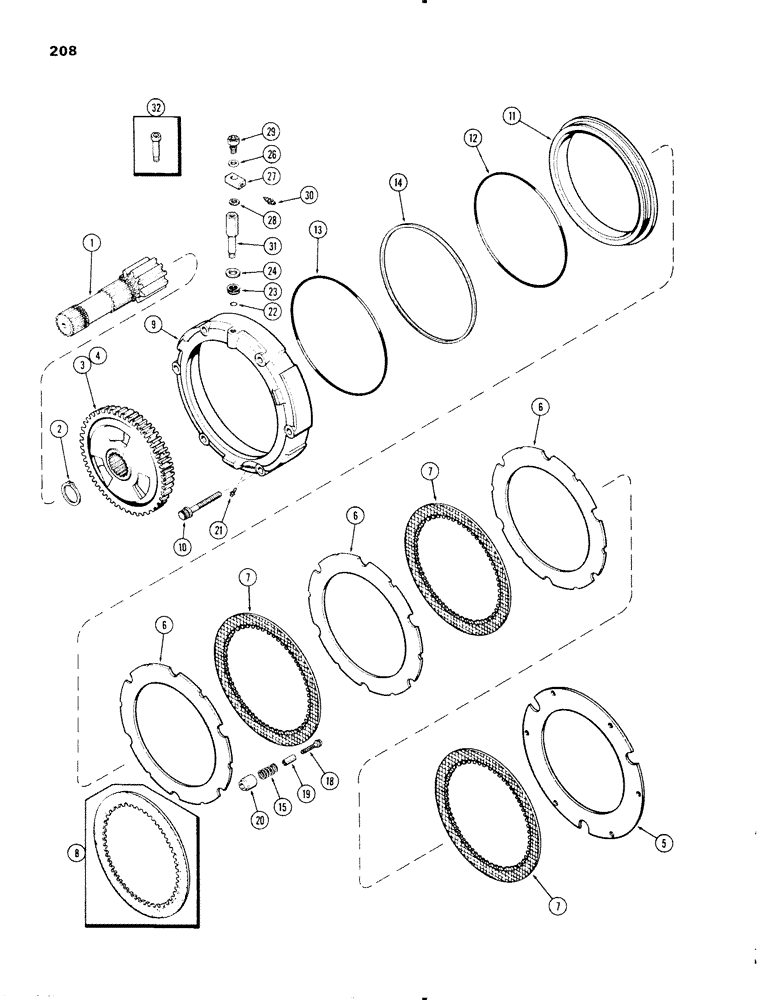

Запчасти Case IH 1270 (208) - DIFFERENTIAL BRAKE (06) - POWER TRAIN

1

A148020

SHAFT

- differential with sun gear (1st used trans. ser. no. 10032679)

1шт.

1

A66879

SHAFT

- differential with sun gear (Used prior to trans. ser. no. 10032679)

2шт.

2

F35283

SNAP RING,#231, Ext

Ring, Snap, , brake hub #231, Ext

2шт.

3

A63196

HUB

- brake (R.H.)

1шт.

Ref # 3 A63196 casting number is 968712

1шт.

4

A63197

HUB

- brake (L.H.)

1шт.

Ref # 4 A63197 casting number is 968713

1шт.

5

A63198

DISC

- brake (Steel)

2шт.

6

A63199

DISC

- brake (Steel)

6шт.

7

A67129

DISC

- brake (with lining) (Replaces A63200)

6шт.

8

A63200

DISC

- brake (with lining) (Order A67129)

6шт.

9

A148019

CYLINDER

- brake support (1st used trans. ser. no. 10032679)

2шт.

9

A65735

COVER

CYLINDER - brake support

2шт.

10

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - (1/2 x 4" N.C. Ferry Cap) cylinder to trans. case

12шт.

11

A65540

PISTON

- brake

2шт.

A44338

KIT

- O-ring, differential brake piston, Includes Ref: 12-14

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - brake piston

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - brake piston

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - back-up (groove towards outside)

1шт.

15

A63203

SPRING

- brake return

6шт.

18

166-1004

12 PT SCREW,Lock, Flg, 1/4" - 20 x 1 3/4", Gr 8

SCREW - (1/4 x 1-3/4" Ferry Cap w/Jay-Loc) brake pin

6шт.

19

138-187

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, , brake pin 7/16" x 1 1/4", Slotted

6шт.

20

A63202

PIN

- brake disc

6шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleed (in cylinder)

2шт.

22

212-5003

O-RING - hydraulic brake connector

2шт.

23

A64071

GROMMET

- brake fitting

2шт.

24

195-2073

WASHER,0.69" ID x 1.25" OD x 0.07" Thk

- 11/16 x 1-1/4 x 1/16"

4шт.

26

33260

GASKET

2шт.

27

A64072

FITTING

BANJO - brake bleeder

2шт.

28

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

2шт.

29

A64073

HOLLOW SCREW

- connector

2шт.

30

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleeder (in banjo)

2шт.

31

A66395

FITTING

- hydraulic brake (in cylinder) (Replaces A64070)

2шт.

32

A64070

FITTING

- hydraulic brake (in cylinder) (Order A66395)

2шт.
