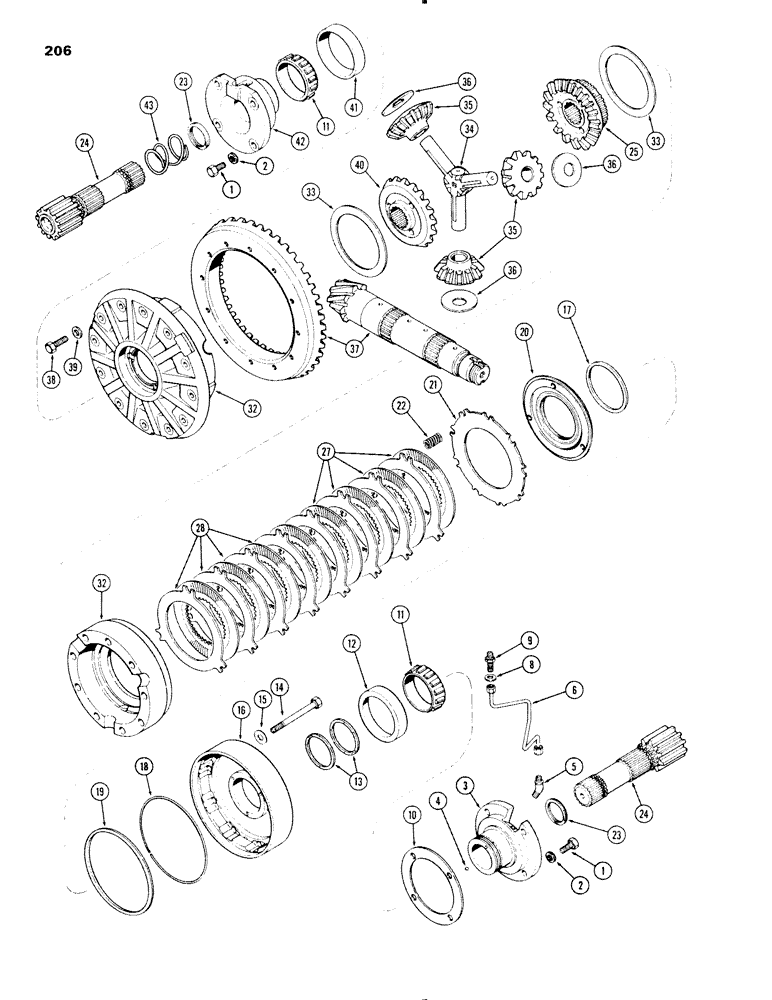

Запчасти Case IH 1270 (206) - DIFFERENTIAL, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bearing carrier to trans. case Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

2

A148376

WASHER

- 33/64 x 7/8 x 1/16"

8шт.

3

A66499

CARRIER

ASSEMBLY - differential bearing (L.H.) (Order A148761), Includes Ref: 4

1шт.

4

211-5

BALL,3/16" Dia

- (.) (L.H. brg. carrier) 3/16" Dia

1шт.

5

222-4091

FITTING

ELBOW - (45deg., 1/4" x 1/8" P.T.) oil supply tube

1шт.

6

A64877

TUBE

ASSEMBLY - oil, differential lock clutch

1шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- bulkhead fitting, 1/4 x 23/64 x 5/64"

1шт.

9

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- bulkhead

1шт.

10

A63186

SHIM,.015" Thk

Differential brg. carrier .015" Thk

1шт.

10

A63187

SHIM,.007" Thk

Differential brg. carrier .007" Thk

1шт.

10

A63188

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

11

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - differential bearing carrier (3-11/32" OD)

2шт.

12

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, differential lock cage (5-1/8" OD)

1шт.

13

A63192

RING

- seal, L.H. bearing carrier

2шт.

14

26-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

- (5/8 x 6-1/4" N.C. hex.) (Differential lock cage to intermediate & ring gear cage)

9шт.

15

A64303

WASHER

- steel

9шт.

16

A144407

HOUSING

CAGE - differential lock (Replaces A63170)

1шт.

17

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, differential lock piston lip

1шт.

18

A62642

ELECTRICAL WIRE

WIRE - seal, differential lock piston lip

1шт.

19

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, differential lock piston lip

1шт.

20

A66359

PISTON

- differential lock (Order A146670, A146682, A146683, A150753 and A150754)

1шт.

21

A63173

PLATE

- differential lock piston return spring

1шт.

22

A63172

SPRING

- return, differential lock piston

3шт.

23

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining, differential shaft

2шт.

24

REF

INSTRUCTION

SHAFT - differential with sun gear, See Figure: 208

2шт.

25

A65969

GEAR

- differential bevel side (L.H.)

1шт.

27

A63174

PLATE

- differential lock clutch (sintered)

8шт.

28

A63175

PLATE

- differential lock clutch (steel)

8шт.

32

A63182

HOUSING

CAGE ASSEMBLY - differential (Matched Set)

1шт.

33

A152408

WASHER

- thrust, differential side gear (Replaces A66730)

2шт.

34

A63179

PIN

- differential pinion

1шт.

35

A66731

GEAR

- differential pinion bevel

3шт.

36

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

- thrust, differential pinion gear

3шт.

37

A67082

GEAR

SET - pinion & spiral gear (Matched Set) (1st used trans. ser. no. 2476547)

1шт.

37

A66888

GEAR-SET

GEAR SET - pinion & spiral bevel (Matched Set) (Used prior to trans. ser. no. 2476547)

1шт.

38

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" N.C. hex.) (Gear to ring gear cage)

12шт.

39

A150672

WASHER

- differential ring gear

12шт.

40

A65968

GEAR

- differential bevel side (R.H.)

1шт.

41

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, differential ring gear cage (R.H. side)(5-1/8" OD)

1шт.

42

A63190

CARRIER,2.4" ID x 7.4" OD x 3.49"

- differential bearing (R.H.)

1шт.

43

A63201

SPRING

SLINGER - oil, differential shaft (R.H. side only)

1шт.
