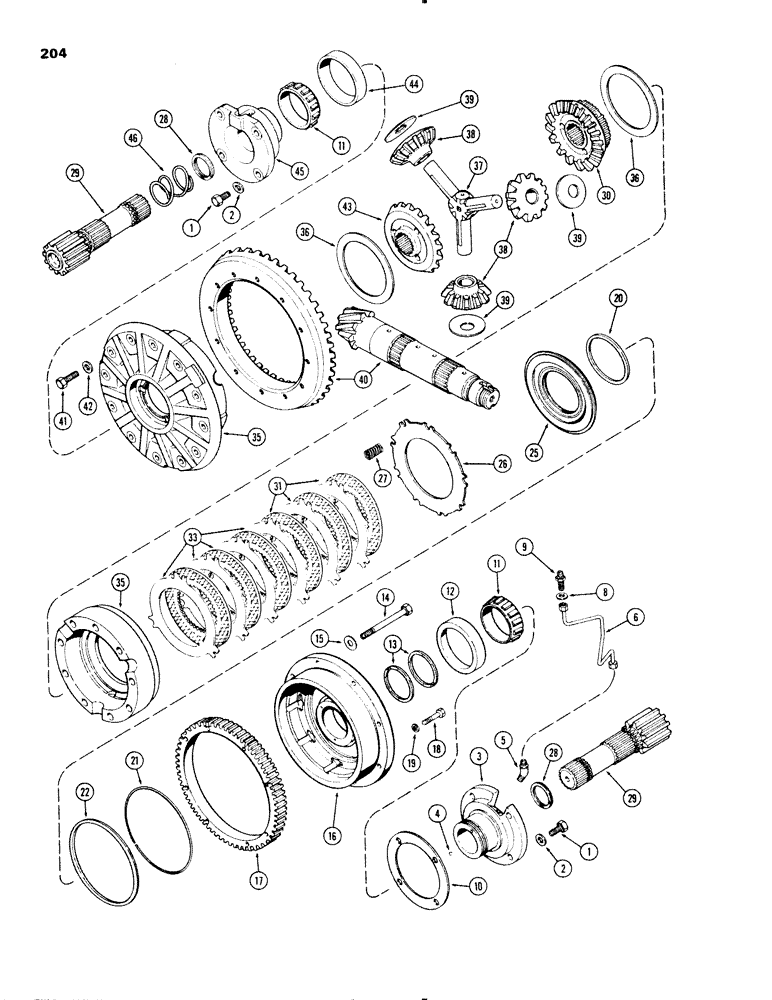

Запчасти Case IH 1270 (204) - DIFFERENTIAL, USED TRANSMISSION SERIAL NUMBER 10028201 TO 100547473 (06) - POWER TRAIN

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

2

A148376

WASHER

- 33/64 x 7/8 x 1/16"

8шт.

3

A148761

CARRIER

ASSEMBLY - diff. brg., L.H. (Replaces A66499), Includes Ref: 4

1шт.

4

211-5

BALL,3/16" Dia

- 3/16" Dia

1шт.

5

222-4091

FITTING

ELBOW - 1/4 x 1/8" P.T., 45deg.

1шт.

6

A64877

TUBE

- oil, differential lock clutch

1шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64"

1шт.

9

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- bulkhead

1шт.

10

A63186

SHIM,.015" Thk

Differential brg. carrier .015" Thk

1шт.

10

A63187

SHIM,.007" Thk

Differential brg. carrier .007" Thk

1шт.

10

A63188

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

11

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - differential bearing carrier (3-11/32" OD)

2шт.

12

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, differential lock cage (5-1/8")

1шт.

13

A63192

RING

- seal, L.H. bearing carrier

2шт.

14

26-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

- 5/8 x 6-1/4" N.C. hex

9шт.

15

A64303

WASHER

- 41/64 x 1-1/16 x 1/16"

9шт.

16

A144907

CAGE

- differential lock

1шт.

17

A144583

GEAR

- park lock ring

1шт.

18

26-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

- 3/8 x 2" N.c. hex

8шт.

19

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 27/64 x 3/4 x 1/32"

8шт.

20

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, differential lock piston lip

1шт.

21

A62642

ELECTRICAL WIRE

WIRE - seal, differential lock piston lip

1шт.

22

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, differential lock piston lilp

1шт.

25

A66359

PISTON

- differential lock (Order A146670, A146682, A146683, A150753 and A150754)

1шт.

26

A63173

PLATE

- differential lock piston return spring

1шт.

27

A63172

SPRING

- return, differential lock piston

3шт.

28

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining, differential shaft

2шт.

29

A66879

SHAFT

- differential with sun gear

2шт.

30

A65969

GEAR

- differential bevel side, L.H.

1шт.

31

A136340

PLATE

- differential lock clutch (paper)

6шт.

33

A63175

PLATE

- differential lock clutch (steel)

6шт.

35

A136340

PLATE

CAGE ASSEMBLY - differential (matched set)

1шт.

36

A152408

WASHER

- thrust, differential side gear (Replaces A66730)

2шт.

37

A63179

PIN

- differential pinion

1шт.

38

A66731

GEAR

- differential pinion bevel

3шт.

39

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

- thrust, differential pinion gear

3шт.

40

A67082

GEAR

SET - pinion & spiral gear (matched set)

1шт.

41

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" N.C. hex

12шт.

42

A150672

WASHER

- differential ring gear

12шт.

43

A65968

GEAR

- differential bevel side, R.H.

1шт.

44

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, differential ring gear cage, R.H. (5-1/8" OD)

1шт.

45

A63190

CARRIER,2.4" ID x 7.4" OD x 3.49"

- differential bearing, R.H.

1шт.

46

A63201

SPRING

SLINGER - oil, differential shaft, R.H.

1шт.
