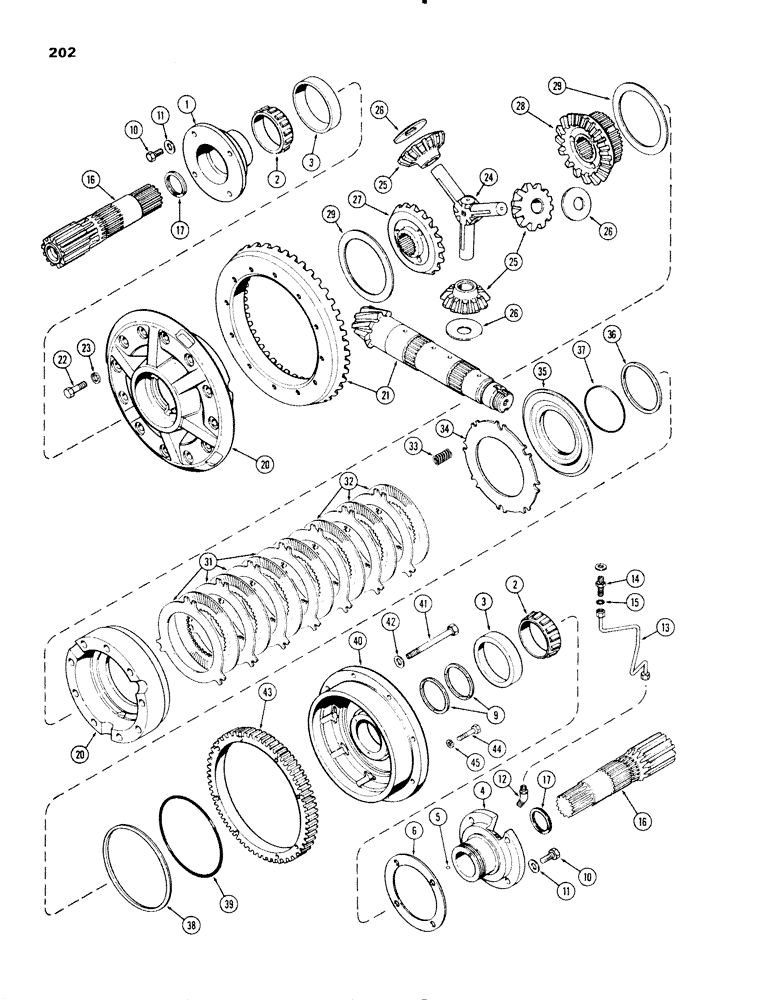

Запчасти Case IH 1270 (202) - DIFFERENTIAL, FIRST USED TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A63190

CARRIER,2.4" ID x 7.4" OD x 3.49"

- R.H. bearing

1шт.

2

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - bearing, R.H. and L.H. carrier (3-11/32" OD)

2шт.

3

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, R.H. and L.H. carrier (5-1/8" OD)

2шт.

4

A148761

CARRIER

ASSEMBLY - L.H. bearing, Includes Ref: 5

1шт.

5

211-5

BALL,3/16" Dia

- 3/16" Dia

1шт.

6

A63186

SHIM,.015" Thk

Carrier .015" Thk

1шт.

6

A63187

SHIM,.007" Thk

Carrier .007" Thk

1шт.

6

A63188

SHIM,.005" Thk

Carrier .005" Thk

1шт.

9

A63192

RING

- seal, L.H. carrier

2шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

11

A148376

WASHER

- carrier bolt (33/64 x 7/8 x 1/16")

8шт.

12

222-4091

FITTING

ELBOW - tube, 1/4" x 1/8" P.T. 45deg.

1шт.

13

A64877

TUBE

- oil, differential lock clutch

1шт.

14

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

FITITNG - bulkhead, 1/4" tube x 7/16"-20

1шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64"

1шт.

16

REF

INSTRUCTION

SHAFT - sun gear (See Figure 208)

2шт.

17

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining, shaft

2шт.

20

A136430

HOUSING

CAGE ASSEMBLY - differential (matched)

1шт.

21

A67082

GEAR

AND PINION SET - matched

1шт.

22

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" N.c. hex

12шт.

23

A150672

WASHER

- center assy. bolt (17/32 x 7/8 x 7/64")

12шт.

24

A63179

PIN

- differential pinion

1шт.

25

A66731

GEAR

- bevel, differential pinion

3шт.

26

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

- thrust, pinion gear

3шт.

27

A65968

GEAR

- differential side R.H.

1шт.

28

A65969

GEAR

- differential side, L.H.

1шт.

29

A152408

WASHER

- thrust, side gear (Replaces A66730)

2шт.

31

A63175

PLATE

- lock clutch (steel)

6шт.

32

A136340

PLATE

- lock clutch (paper)

6шт.

33

A63172

SPRING

- return, lock piston

3шт.

34

A63173

PLATE

- return spring

1шт.

35

A146670

PISTON

- differential lock

1шт.

36

A146683

RING

SEAL - internal, piston

1шт.

37

A150754

O-RING,4.718" ID x 0.107"

- internal seal, piston (4-23/32" OD)

1шт.

38

A146682

RING

SEAL - external, piston

1шт.

39

A150753

O-RING,7.84" ID x 0.107"

- external seal, piston (7-27/32" OD)

1шт.

40

A144907

CAGE

- differential lock

1шт.

41

26-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

- 5/8 x 6-1/4" N.C. hex

9шт.

42

A64303

WASHER

- cage bolt (41/64 x 1-1/16 x 1/16")

9шт.

43

A144583

GEAR

- ring, park lock

1шт.
